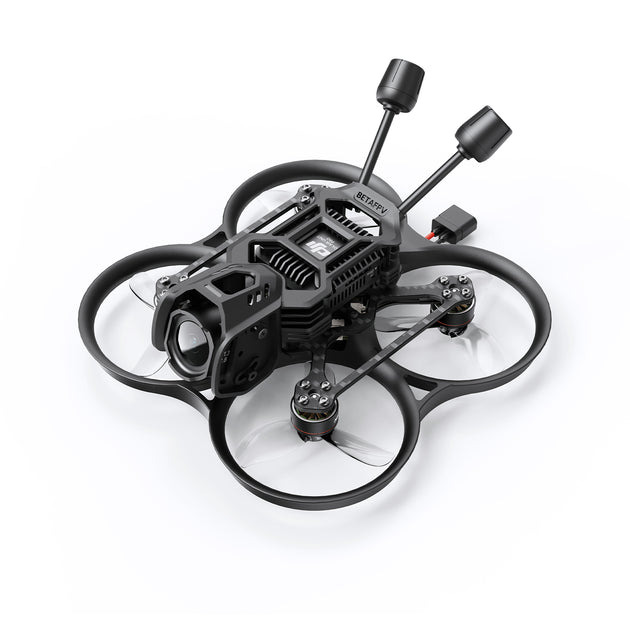

BetaFPV Pavo20 Pro II
At 116.2 g dry the Pavo20 Pro II is 159.2-170.56 g ready to fly on the 6 matching 3S packs listed below (550-560 mAh): the pack is 27-32% of all-up weight.
| Class | cinewhoop |
|---|---|
| Wheelbase | 93.9 mm |
| Weight (no battery) | 116.2 g |
| Prop size | 2.2 " |
| Prop mount | 1.5mm shaft |
| Motors | BetaFPV LAVA 1104 7200KV |
| VTX system | DJI O4 Pro |
| Flight controller | Cube 2-4S 30A 3IN1 FC (4S), F4 2-3S 20A AIO FC (3S) |
| Receiver options | Serial ELRS, DJI SBUS |
What battery does the Pavo20 Pro II use?
| Cells | 3S |
|---|---|
| Capacity | 550 mAh |
| Recommended range | 450-680 (3S/4S LAVA II supported) mAh |
| Connector | XT30 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 116.2 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB Gaoneng 550mAh 3S | 550 | 100C | 43.0 g | 159.2 g | $2.39 |
| RDQ RDQ Series 550mAh 3S | 550 | 100C | 43.0 g | 159.2 g | $2.63 |
| Lumenier XT-30 550mAh 3S | 550 | 80C | 44.0 g | 160.2 g | $3.11 |
| Tattu R-Line 550mAh 3S | 550 | 95C | 46.0 g | 162.2 g | $3.11 |
| XILO Essential 550mAh 3S | 550 | 100C | 54.36 g | 170.56 g | $3.36 |
| Dogcom 560mAh 3S | 560 | 150C | 46.0 g | 162.2 g | $2.73 |
Pavo20 Pro II flight time
The Pavo20 Pro II flies ≈ 6.6-6.7 min on the 2 pack capacities listed above at our 4 A cruise-current estimate, with 80% of a pack used: 550 mAh ≈ 6.6 min, 560 mAh ≈ 6.7 min.
Where this data comes from
116.2g with O4 Pro (PNP 72.6g). Gemfan 2218 props, 93.9mm wheelbase.
