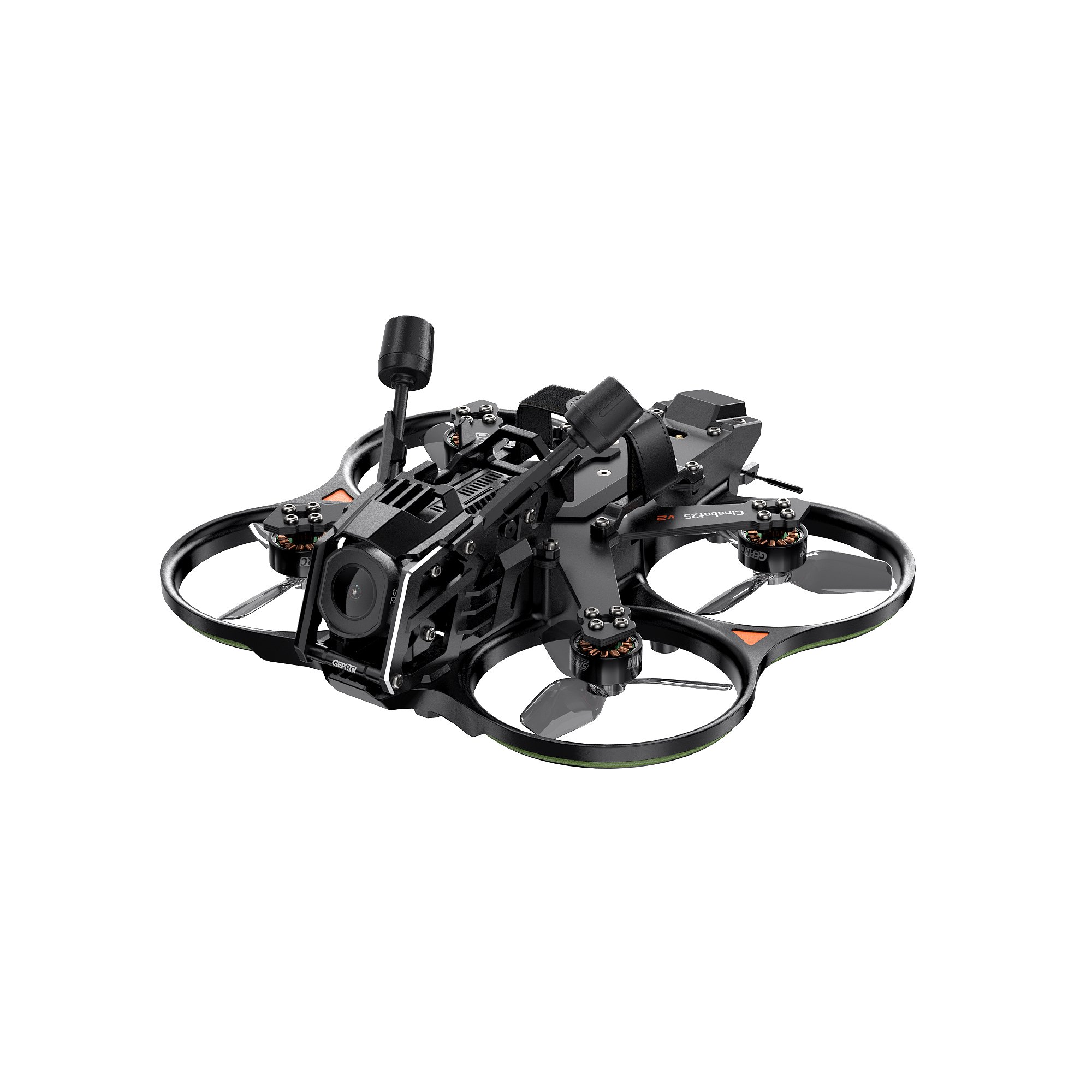

GEPRC Cinebot25 V2
At 219 g dry the Cinebot25 V2 is 289.5-322 g ready to fly on the 6 matching 4S packs listed below (850-930 mAh): the pack is 24-32% of all-up weight.
| Class | cinewhoop |
|---|---|
| Wheelbase | 123 mm |
| Weight (no battery) | 219 g |
| Prop size | 2.5 " |
| Prop mount | T-mount |
| Motors | GEPRC SPEEDX2 1404 4600KV |
| VTX system | DJI O4 Pro |
| Camera | DJI O4 Air Unit Pro camera module |
| Receiver options | PNP (built-in receiver) / ELRS 2.4G |
| Manufacturer flight time | 5-8 (cruise) min |
What battery does the Cinebot25 V2 use?
| Cells | 4S |
|---|---|
| Capacity | 900 mAh |
| Recommended range | 750-1100 mAh |
| Connector | XT30 |
| Chemistry | LiHV |
Matching packs from our database
All-up weight is this quad's 219 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB Gaoneng 930mAh 4S | 930 | 120C | 100.0 g | 319 g | $1.74 |
| GNB RDQ Series 850mAh 4S | 850 | 60C | 70.5 g | 289.5 g | $0.49 |
| Tattu 850mAh 4S | 850 | 75C | 103.0 g | 322 g | $1.55 |
| GNB Gaoneng 850mAh 4S | 850 | 60C | 73.0 g | 292 g | $1.7 |
| GNB Gaoneng Square Type 850mAh 4S | 850 | 80C | 102.0 g | 321 g | $1.75 |
| RDQ RDQ Series 850mAh 4S | 850 | 60C | 70.5 g | 289.5 g | $1.82 |
Cinebot25 V2 flight time
The Cinebot25 V2 flies ≈ 5.8-6.4 min on the 2 pack capacities listed above at our 7 A cruise-current estimate, with 80% of a pack used: 850 mAh ≈ 5.8 min, 930 mAh ≈ 6.4 min.
Where this data comes from
O4 Pro + GPS (GEP-M10nano). HQProp DT63x3 V2 props.
