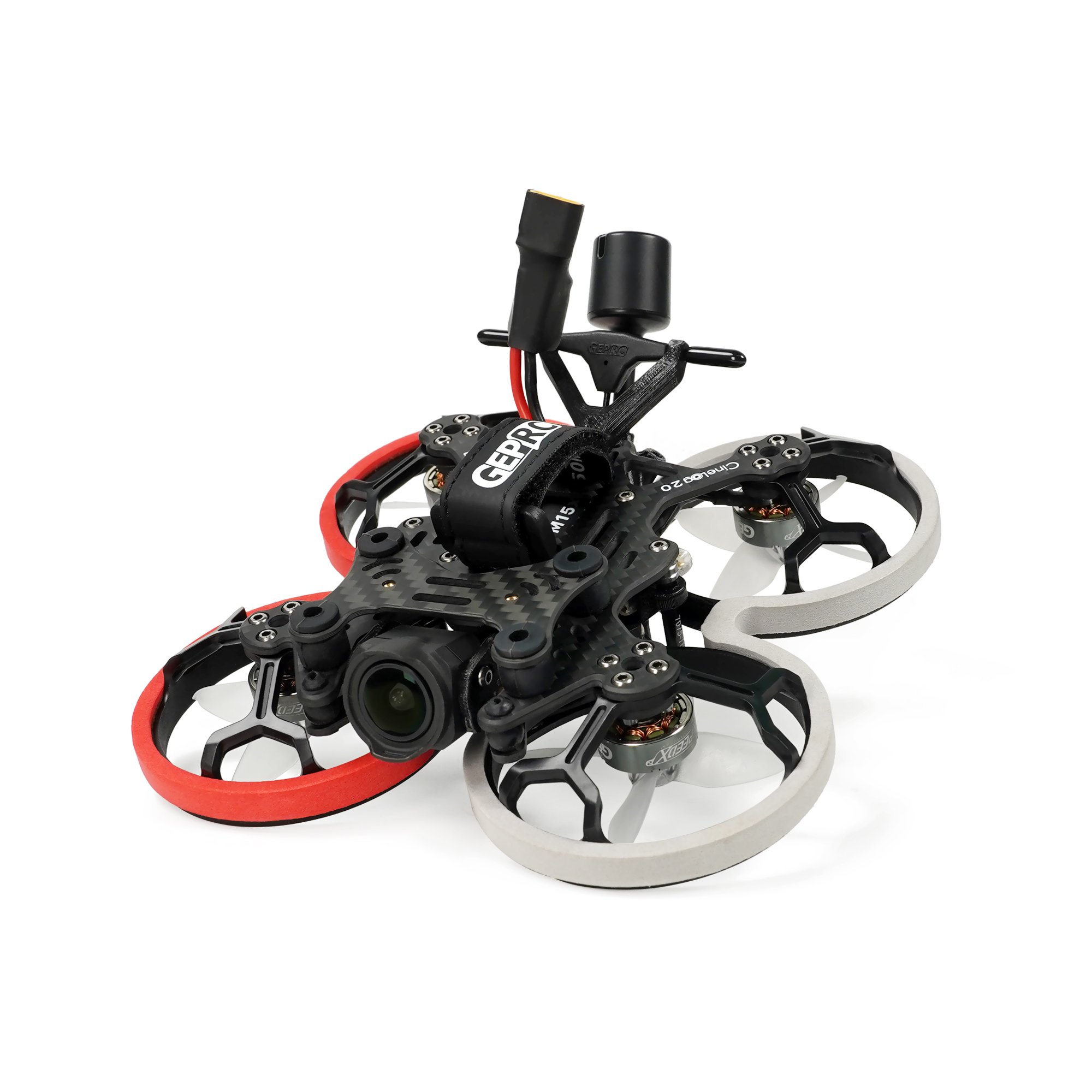

GEPRC Cinelog20
At 140 g dry the Cinelog20 is 200.6-227 g ready to fly on the 6 matching 4S packs listed below (650-660 mAh): the pack is 30-38% of all-up weight.
| Class | cinewhoop |
|---|---|
| Wheelbase | 100 mm |
| Weight (no battery) | 140 g |
| Prop size | 2 " |
| Motors | GEPRC GR1303.5 5500KV |
| VTX system | DJI O3 |
| Camera | O3 Camera |
| Flight controller | Taker G4 35A AIO |
| Receiver options | PNP(built-in DJI receiver), ELRS2.4G, TBS Nano RX / RXSR |
| Manufacturer flight time | 4-6 min |
What battery does the Cinelog20 use?
| Cells | 4S |
|---|---|
| Capacity | 660 mAh |
| Recommended range | 450-660 mAh |
| Connector | XT30 |
| Chemistry | LiHV |
Matching packs from our database
All-up weight is this quad's 140 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB Gaoneng 660mAh 4S | 660 | 90C | 63.0 g | 203 g | $2.04 |
| RDQ RDQ Series 660mAh 4S | 660 | 90C | 65.0 g | 205 g | $2.04 |
| CNHL MiniStar 650mAh 4S | 650 | 70C | 87.0 g | 227 g | $1.97 |
| GNB Gaoneng 650mAh 4S | 650 | 120C | 70.0 g | 210 g | $2.12 |
| GNB Gaoneng Square Type 650mAh 4S | 650 | 80C | 79.0 g | 219 g | $2.13 |
| RDQ RDQ Series 650mAh 4S | 650 | 60C | 60.6 g | 200.6 g | $2.28 |
Cinelog20 flight time
The Cinelog20 flies ≈ 5.2-5.3 min on the 2 pack capacities listed above at our 6 A cruise-current estimate, with 80% of a pack used: 650 mAh ≈ 5.2 min, 660 mAh ≈ 5.3 min. GEPRC publishes 4-6 min.
Where this data comes from
HD O3 version (weight incl. TBS Nano RX). Props EMAX Avan Micro 2x2.4x4.
