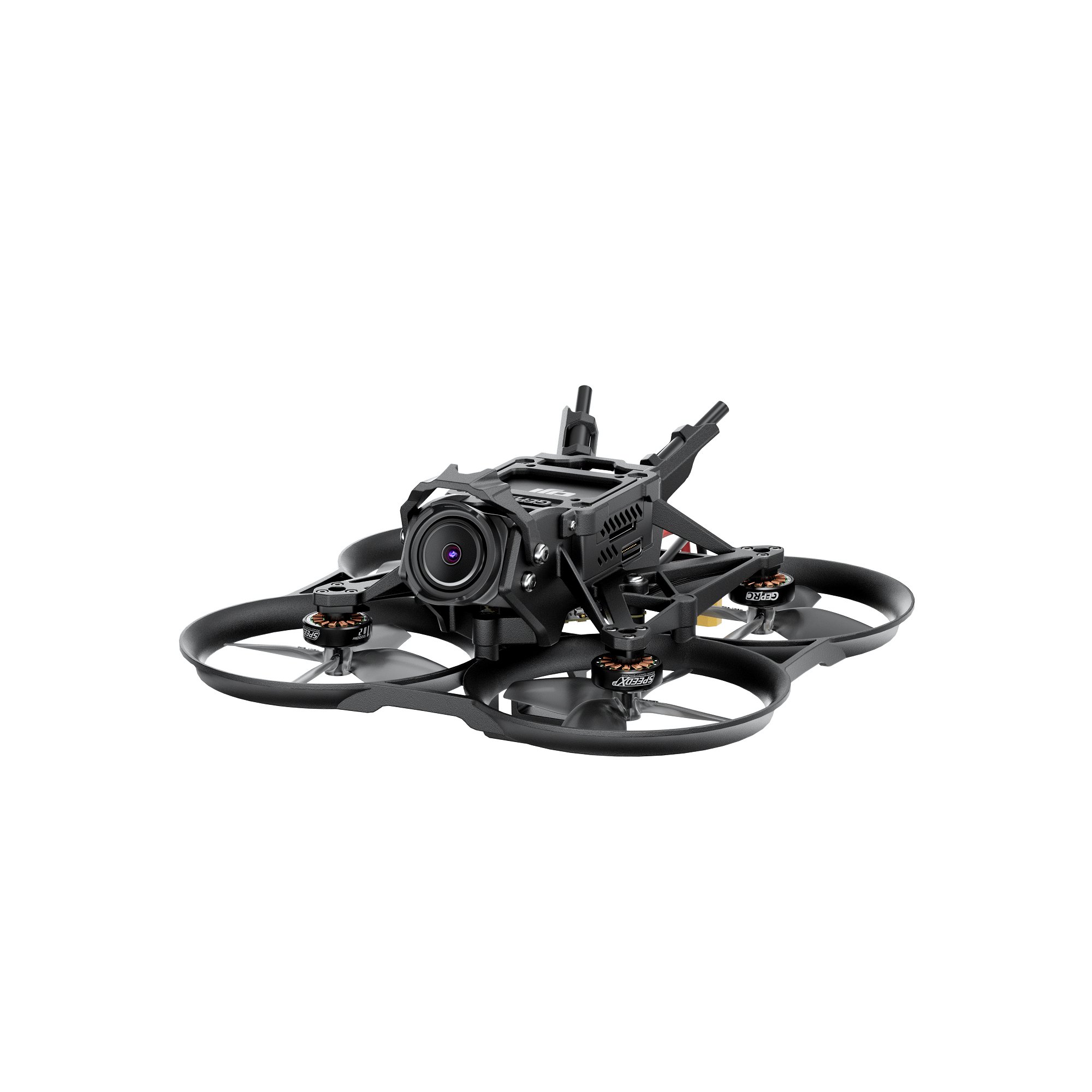

GEPRC DarkStar20
At 86 g dry the DarkStar20 is 112-116 g ready to fly on the 6 matching 2S packs listed below (450-550 mAh): the pack is 23-26% of all-up weight. GEPRC publishes 120 g all-up with its own pack.
| Class | cinewhoop |
|---|---|
| Wheelbase | 90 mm |
| Weight (no battery) | 86 g |
| Typical AUW | 120 g |
| Prop size | 2 " |
| Motors | GEPRC SPEEDX2 1102 10000KV |
| VTX system | DJI O3 (WTFPV/Wasp variants) |
| Camera | O3 Camera |
| Flight controller | TAKER F411-12A-E 1-2S AIO |
| Receiver options | PNP / ELRS2.4G / TBS Nano RX |
What battery does the DarkStar20 use?
| Cells | 2S |
|---|---|
| Capacity | 500 mAh |
| Recommended range | 450-550 mAh |
| Connector | XT30 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 86 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| Lumenier 500mAh 2S | 500 | 50C | 30.0 g | 116 g | $4.46 |
| RDQ RDQ Series 525mAh 2S | 525 | 80C | 29.05 g | 115.05 g | $2.75 |
| GNB Gaoneng 530mAh 2S | 530 | 90C | 26.0 g | 112 g | $2.73 |
| GNB Gaoneng w 550mAh 2S | 550 | 100C | 29.0 g | 115 g | $2.51 |
| RDQ RDQ Series 550mAh 2S | 550 | 100C | 30.0 g | 116 g | $2.75 |
| GNB Gaoneng w 450mAh 2S | 450 | 80C | 28.0 g | 114 g | $3.0 |
DarkStar20 flight time
The DarkStar20 flies ≈ 4.3-5.3 min on the 5 pack capacities listed above at our 5 A cruise-current estimate, with 80% of a pack used: 450 mAh ≈ 4.3 min, 500 mAh ≈ 4.8 min, 525 mAh ≈ 5.0 min, 530 mAh ≈ 5.1 min, 550 mAh ≈ 5.3 min.
Where this data comes from
90mm diagonal.
