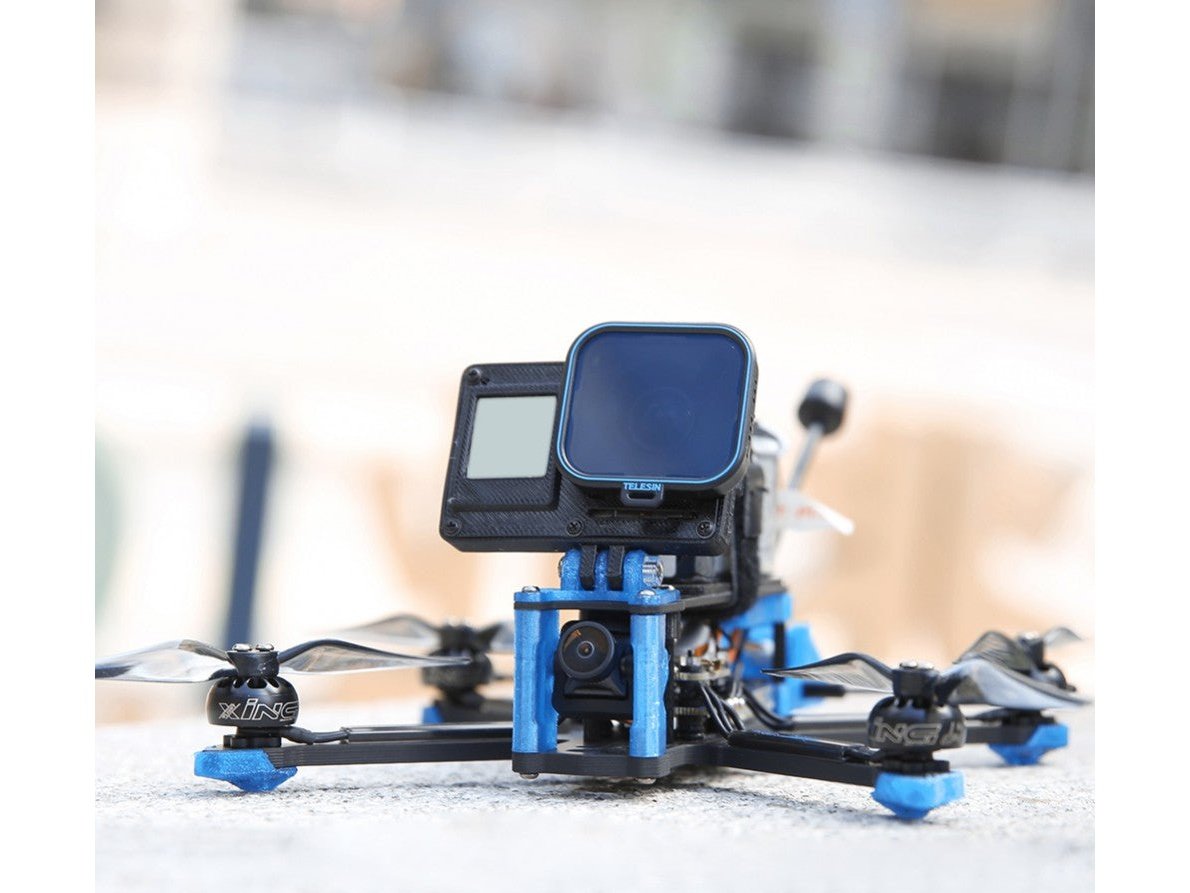

iFlight Chimera4 LR
At 173 g dry the Chimera4 LR is 243.5-283 g ready to fly on the 6 matching 4S packs listed below (850 mAh): the pack is 29-39% of all-up weight. iFlight publishes 265.8 g all-up with its own pack.
| Class | long range (sub-250) |
|---|---|
| Wheelbase | 178 mm |
| Weight (no battery) | 173 g |
| Typical AUW | 265.8 g |
| Prop size | 4 " |
| Motors | iFlight XING 1404 3000KV (Cruiser) / 3800KV (Speed) |
| VTX system | Caddx Nebula HD (analog variant) |
| Flight controller | SucceX-E mini F4 |
| Manufacturer flight time | 15+ (4S 850) min |
What battery does the Chimera4 LR use?
| Cells | 4S |
|---|---|
| Capacity | 850 mAh |
| Recommended range | 850 LiPo or 18650 Li-ion mAh |
| Connector | XT30 |
| Chemistry | LiPo / Li-ion |
Matching packs from our database
All-up weight is this quad's 173 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB RDQ Series 850mAh 4S | 850 | 60C | 70.5 g | 243.5 g | $0.49 |
| Tattu 850mAh 4S | 850 | 75C | 103.0 g | 276 g | $1.55 |
| GNB Gaoneng 850mAh 4S | 850 | 60C | 73.0 g | 246 g | $1.7 |
| GNB Gaoneng Square Type 850mAh 4S | 850 | 80C | 102.0 g | 275 g | $1.75 |
| RDQ RDQ Series 850mAh 4S | 850 | 60C | 70.5 g | 243.5 g | $1.82 |
| CNHL MiniStar 850mAh 4S | 850 | 70C | 110.0 g | 283 g | $1.91 |
Chimera4 LR flight time
The Chimera4 LR flies ≈ 8.2 min on the 850 mAh pack listed above at our 5 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
178mm wheelbase. flight_controller read 2026-10-17 off the cited GetFPV listing's spec block.
