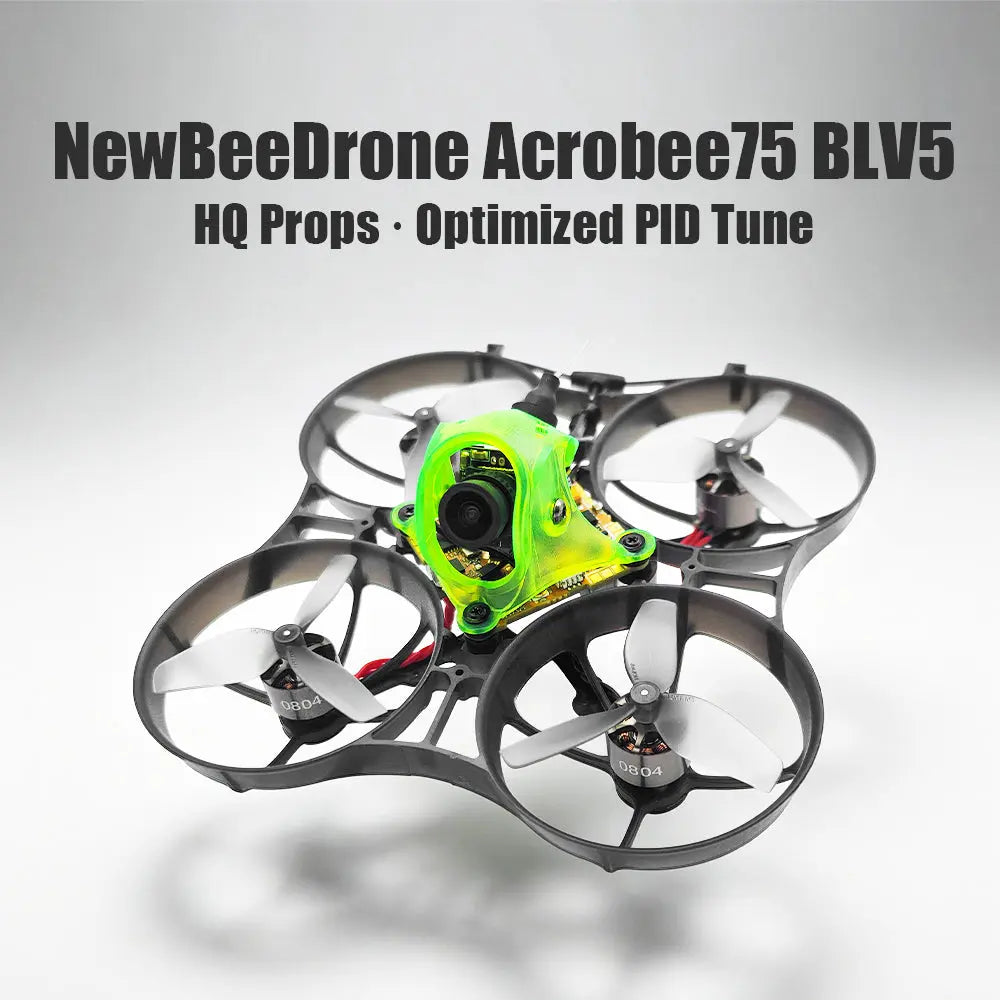

NewBeeDrone AcroBee75 BLV5
At 36.4 g dry the AcroBee75 BLV5 is 63.4-66.89 g ready to fly on the 6 matching 2S packs listed below (450-500 mAh): the pack is 43-46% of all-up weight.
| Class | whoop (75mm 1-2S) |
|---|---|
| Weight (no battery) | 36.4 g |
| Prop size | 1.6 " |
| Motors | NewBeeDrone Flow 0804 (2S 14000KV) |
| VTX system | analog (O3/O4 HD pusher variants) |
| Camera | Caddx Ant Nano 1200TVL |
| Flight controller | BeeBrain BLV5 flight controller |
| Receiver options | Built-in TCXO Crystal Oscillator ExpressLRS 2.4GHz Diversity Receiver(Uart Base) |
What battery does the AcroBee75 BLV5 use?
| Cells | 2S |
|---|---|
| Capacity | 450 mAh |
| Connector | XT30 |
| Chemistry | LiHV (supports 1S/2S) |
Matching packs from our database
All-up weight is this quad's 36.4 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB Gaoneng w 450mAh 2S | 450 | 80C | 28.0 g | 64.4 g | $3.0 |
| GNB Gaoneng 450mAh 2S | 450 | 80C | 27.0 g | 63.4 g | $3.21 |
| Tattu JST-SYP 450mAh 2S | 450 | 75C | 29.0 g | 65.4 g | $3.3 |
| RDQ RDQ Series 450mAh 2S | 450 | 70C | 28.9 g | 65.3 g | $3.45 |
| Lumenier HV 450mAh 2S | 450 | 80C | 30.49 g | 66.89 g | $4.38 |
| Lumenier 500mAh 2S | 500 | 50C | 30.0 g | 66.4 g | $4.46 |
AcroBee75 BLV5 flight time
The AcroBee75 BLV5 flies ≈ 4.3-4.8 min on the 2 pack capacities listed above at our 5 A cruise-current estimate, with 80% of a pack used: 450 mAh ≈ 4.3 min, 500 mAh ≈ 4.8 min.
Where this data comes from
BLV5 analog version 36.4g; O3/O4 HD variants heavier.
