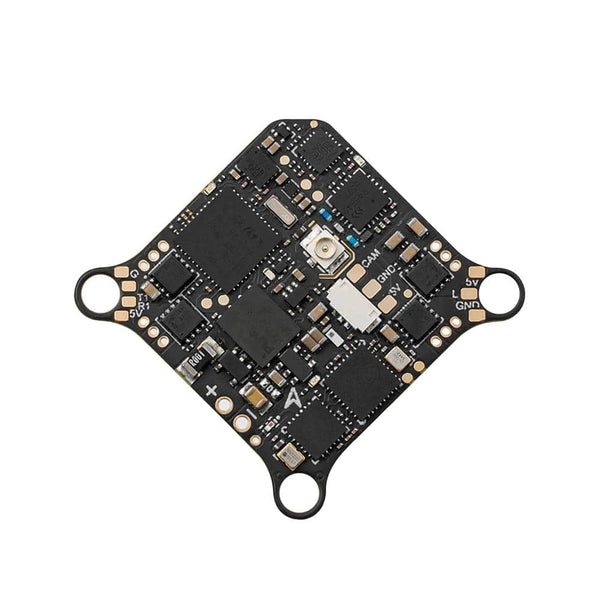

BetaFPV Matrix V2 AIO - G4 FC + 12A 1S ESC + 400mW + ELRS - Solder Required
| Type | AIO |
|---|---|
| MCU | G473 |
| Gyro | ICM42688P |
| ESC current | 12 A |
| Mounting | 26x26mm |
| Cells | 1S |
| BEC output | 5V, Max 3A |
| FC firmware | Betaflight_4.5.3_BETAFPVG473_V2 |
| ESC firmware | A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware |
| Weight | 3.76 g |
| Price (approx.) | 59.99 USD |
