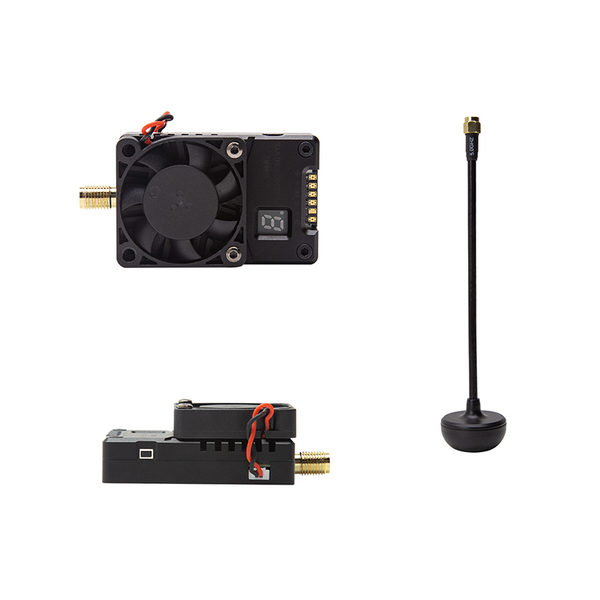

ATOMRC TX2500 5.8G 2.5W VTX
| System | analog |
|---|---|
| Max power | 2500 mW |
| Power levels | 800 / 1600 / 2500 mW |
| Frequency range | 4990-5945 MHz |
| Input voltage | 7-26V |
| Channels | 56 |
| Antenna connector | SMA |
| Price (approx.) | 60.0 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-25 off the brand's own shop, the fifteenth VTX manufacturer catalogue read beside the US retail scrape. www.skyzonefpv.com and atomrc.com are two Shopify stores of one company: /products.json?limit=250 is the whole catalogue in one request on each, the two shops carry the same product_type taxonomy and each lists the other brand's transmitters, and the boards are silkscreened with the brand whose name is on the case rather than the one in the page title. Sold under a SKYZONE title ('SKYZONE TX2500 4.9G/5.8G 2.5W 56 CH L.X Band VTX') and filed here under ATOMRC, because the description's first sentence says 'The ATOMRC TX2500 is powerful VTX which have 2.5W Transmitter output and SMA connector' and both of the brand's own photographs of the case are printed ATOMRC: the top reads 'ATOMRC / Tx2500 5.8G VTX' and the underside 'ATOMRC / TX2500 5.8G VTX' over the pin rail 'DC 7~26V / GND / 5V OUT / GND / VIDEO / DATA (tramp)' and 'Install antenna before power on!', all read at full resolution. The page's own feature list gives the three power steps and the 7-26V, and the case print agrees with the voltage. The channel count is the title's 56 and the band edges are the 7-band table the brand publishes for this model and the TX2501 together (its Betaflight config file is named TX2500_TX2501_vtx_table_25mw_2500mw_ch_ABEFRLX). One of the page's images is a spectrum-analyser capture reading 4.063 W at 5.918 GHz with 'C:\TX2500.STA file loaded' - a measurement of one unit at one channel, above the rated 2.5 W, and not a figure this column holds. /products/skyzone-tx2500-56ch-vtx is a second listing of the same radio, not a second product. The brand states no weight or mounting pattern.
