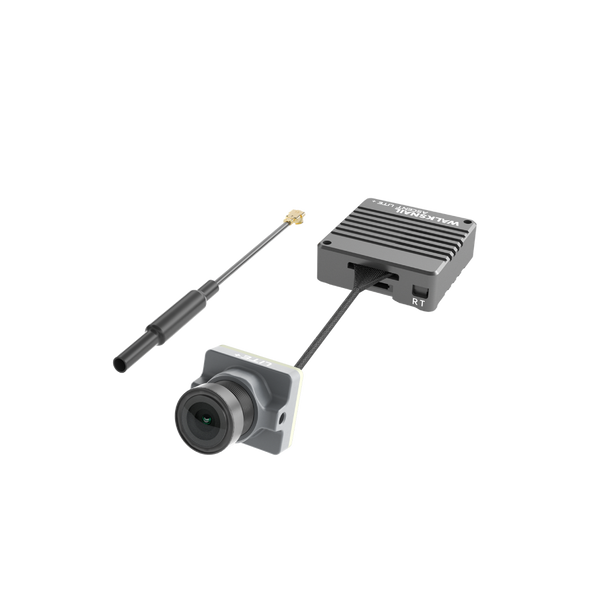

Caddx Walksnail Ascent HD Lite+ Kit
| System | Walksnail |
|---|---|
| Max power | 500 mW |
| Frequency range | 5.730-5.815 GHz |
| Input voltage | 3-12.6V |
| Mounting | 20x20mm |
| Channels | 3 |
| Antenna connector | U.FL |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Walksnail's second Ascent-series transmitter, above the Ascent Lite. max_power_mw is the manufacturer's own words in the Ascent Lite+ quick start guide V1.3 p3: 'a mini 22x22 mm body with the VTX weighing only 2.75 g, equipped with 500 mW transmit power' - transmit power in milliwatts, the same quantity the analog entries in this column hold, and not the 'Transmitter Power (EIRP) FCC/SRRC:27dBm' row in the same manual's spec table (p9-p10). The product page states it the same way ('delivers up to 500mW of power'). The two figures are numerically close (27 dBm is 501 mW), which is true of most of this brand's radios and is why the note says which one this column holds. weight_g is deliberately empty: the manual's spec table says 10.5 g and its own introduction says 2.75 g for the VTX, so the page states two weights and names only one of them as the transmitter's - the rule the kit weights on the DJI air units already follow. Body size is stated twice the same way (22x22 mm in the text, 23.5x23.5x8 mm in the table). Mounting hole is 20x20mm(M2), channels 3, spec-table name 'Ascent Lite+ VTX', model WN13-7007B, FCC ID 2BHG9-WN13-7007B.
