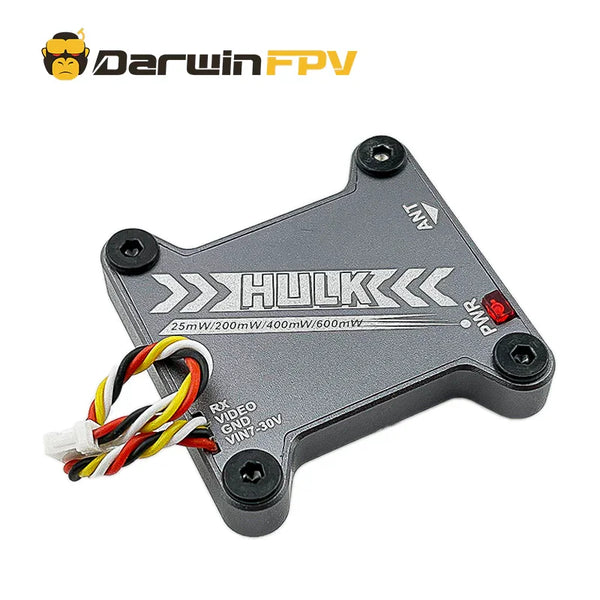

DarwinFPV 5.8G 40CH HULK VTX
| System | analog |
|---|---|
| Max power | 600 mW |
| Power levels | 25 / 200 / 400 / 600 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 7-30V |
| Mounting | 30.5x30.5mm |
| Channels | 40 |
| Antenna connector | MMCX |
| Weight | 15.9 g |
| Price (approx.) | 59.99 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off DarwinFPV's own shop, where this part has a labelled Specifications table: 'Model HULK VTX', 'Frequency 5.8G 40CH', 'Transmitting Power 25mW/200mW/400mW/600mW(Adjustable)', 'Power supply DC 7-30V', 'Weight 15.9g (Antenna Not Included)', 'Center distance of mounting holes 30.5mm x 30.5mm', 'Size 37.6mm x 37.6mm x 6.6mm'. antenna_connector is the prose line above the table, 'the antenna adopts mainstream MMCX connector, and the installation hole is 30.5x30.5mm', which agrees with the table on the pattern. The 600 mW ceiling is the brand's own figure for a part whose price is its highest analog SKU: the money is in the aluminium-alloy potted IP67 case, not the power. The page's body_html is one word per line - the brand pasted it out of a translation tool, and the last line of it is that tool's own expiry notice - which is worth knowing before writing a parser against this shop.
