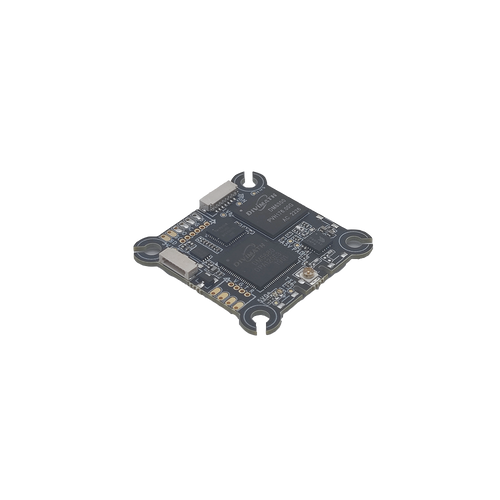

HDZero Eco VTX
| System | HDZero |
|---|---|
| Max power | 200 mW |
| Power levels | 25 / 200 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 4-12V |
| Mounting | 25.5x25.5mm M2 |
| Channels | 12 |
| Antenna connector | U.FL |
| Weight | 4.5 g |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
HDZero's own product page prints the labelled block: Model HDZero Eco VTX, SKU HDZ3160, Frequency 5.8G, Resolution Default 1280*720@60fps, RF power 25mw/200mw, RF Connector U.FL, Interface Composite HD, Size 32.4x32.5mm (29x29mm inner), Weight 4.5grames/4mm Thickness (w/o shielding), Power 1000mA@5V, power input 1S-3S, Mounting 25.5x25.2 M2 soft mounting. The one VTX in the HDZero line that takes composite HD video over a single wire instead of a MIPI cable, which is why it pairs with the LUX/Eco camera and not with the MIPI cameras the rest of the system uses. mount_mm and input_voltage are the HDZero VTX User Manual v1.1 figures (p2 product table: 25.5x25.5, M2 (Soft), 4.5grams, 4V-12V, 5~6W, RF power output 25mW/200mW), because three manufacturer statements of the mounting pattern disagree in the last digit - 25.5x25.2 on the product page, '25 x 25 M2 Soft Mounting' on the Eco Bundle page and 25.5x25.5 in the manual - and 25.5x25.5 is the only one of the three that is a pattern frames are sold for. The manual's own Dimension row for this model (29x30) is not used: it repeats the Freestyle V2's figure and contradicts the product page's 32.4x32.5mm. channels is the manual's 'All VTXes support R1-R8, E1, F1, F2 and F4 channels' (p8), twelve; eight more (L1-L8) appear only after the low-band unlock firmware is flashed.
