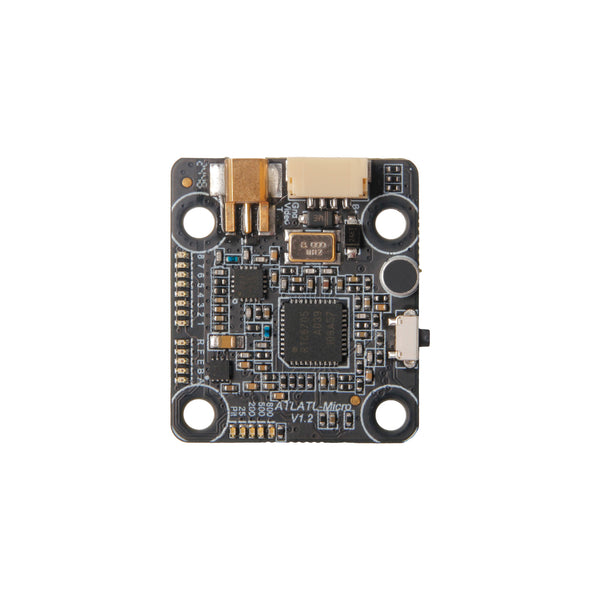

Holybro Atlatl HV micro
| System | analog |
|---|---|
| Max power | 800 mW |
| Power levels | 25 / 200 / 500 / 800 mW |
| Frequency range | 5645-5945 MHz |
| Input voltage | 7-28V (2-6S) |
| Mounting | 20x20mm |
| Channels | 40 |
| Antenna connector | MMCX |
| Weight | 3.6 g |
| Price (approx.) | 27.59 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-25 off Holybro's own shop, the sixteenth VTX manufacturer catalogue read beside the US retail scrape and the fourth brand this catalogue carried no transmitter of at all (it already carries Holybro stacks, one of which ships this very module). holybro.com is Shopify: products.json?limit=250 is the whole catalogue in one request (178 SKUs, page=2 empty), product_type is the brand's own class label and 'VTX & OSD' holds five parts - these four transmitters and a Micro OSD V2. The labelled spec block is in body_html; nothing sits in the page HTML that is not in it, and docs.holybro.com (323 pages, all autopilot) documents no Atlatl. SKU 13012. The page's labelled block and p1 of the brand's own manual (V1.1) print the same lines: 'Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW', Audio 6.5 MHz Mono, Protocol SmartAudio 2.0, Antenna Connector MMCX, 'Input Voltage: 7 to 28 volts (2-6S LiPo)', Dimensions 30x26, 'Mounting Holes: Standard 20mm square to center of holes(M3)' and Weight 3.6g. power_levels_mw drops the 0.5 mW pit step. frequency_range is the manual's p3 channel table - the same 40-channel A/B/E/F/R set as the 5.8G Atlatl HV V2, edges 5645 and 5945 MHz. mount_mm takes the hole and not the screw: the box also contains four M2 anti-vibration grommets, which is the HDZero grommet case again. weight_g is 3.6 g although the brand's own scale photograph of the bare board reads 3.7 g - two self-consistent statements (page and manual) against one photograph, so the majority wins; on the 1.2G Atlatl, which has no manual, the same 0.1 g disagreement is one against one and publishes nothing. The board is silkscreened ATLATL Micro V1.2. Unavailable on 2026-09-25.
