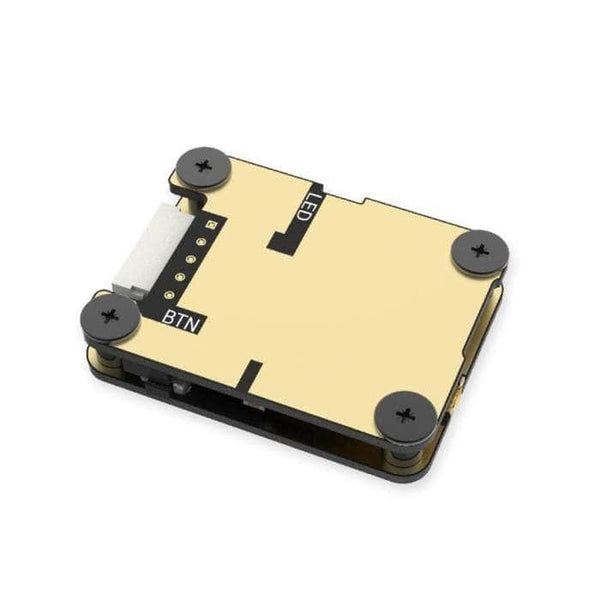

TBS Unify Pro32 DP 3W 4.9-6.0GHz
Listed as: TBS Unify Pro32 DP 3W 4.9-6.0GHz - MMCX
Of the 14 other Wideband 4.9-6.0 GHz analog video transmitters in our database, 2 have a lower maximum power than the Unify Pro32 DP 3W 4.9-6.0GHz (3000 mW, 35 dBm), 2 the same and 10 a higher one; the class median is 4000 mW.
| System | analog |
|---|---|
| Max power | 3000 mW |
| Power levels | 10 / 25 / 100 / 200 / 400 / 500 / 999 / MAX mW |
| Frequency range | 4.99-6.03 GHz |
| Band | Wideband 4.9-6.0 GHz |
| Input voltage | 6-25V (2-6S) |
| Power draw | up to 1.8 A at maximum power |
| Antenna connector | MMCX |
| Weight | 8.7 g |
| Price (approx.) | 59.99 USD |
TBS Unify Pro32 DP 3W 4.9-6.0GHz VTX table for Betaflight
The band and channel frequencies and power levels as TBS publishes them for SmartAudio 2.1 control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L RACE_LOW | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Frequencies in MHz; "—" is an unused slot. Power levels: 10 (value 10), 25 (value 14), 100 (value 20), 200 (value 23), 400 (value 26), 500 (value 27), 999 (value 30), 3k (value 65).
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 RACE_LOW L FACTORY 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable powerlevels 8
vtxtable powervalues 10 14 20 23 26 27 30 65
vtxtable powerlabels 10 25 100 200 400 500 999 3k
saveSource: https://www.team-blacksheep.com/media/files/vtx-table-for-betaflight.txt — TBS's own Betaflight table, the file linked as "VTX Table for Betaflight" under Downloads on the Unify PRO32 page. The file publishes two tables for the DP, "with all channels available" and "with standard channels available"; this is the standard one, six factory bands of eight. The all-channels one is not reproduced here because Betaflight would refuse it: it declares and prints ten bands, two more than Betaflight takes, numbers two of them band 9 (BAND_Y and BAND_T) so that band 10 is never defined, and gives BAND_T seven frequencies instead of eight - those are the bands that reach the DP's 4990-6030 MHz, so a wideband table for this unit has to wait for a corrected file. Both DP blocks carry the same eight power levels, dBm values with the page's 10 / 25 / 100 / 200 / 400 / 500 / 999 / MAX mW as labels; the top one is the file's "max power set to 65db" force-max switch.. Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Corrected 2026-09-23 against TBS's own product page, which is the same module our retail listing sells - 37 x 28 x 10 mm, 8.7 g, MMCX on both - and describes it as a '3W wide band 5.8GHz video transmitter', 'World's lightest 3 Watt video transmitter', 'Frequency range: 4990 - 6030 MHz'. Its spec block reads Min/Max Frequency Band 4990/6030 MHz and Output Power 10 / 25 / 100 / 200 / 400 / 500 / 999 / MAX mW; the unnumbered MAX step is the 3 W the page headlines twice. The retail listing printed '25-400mW 5.8GHz' and a three-step block (14 dBm / 20 dBm / 26 dBm), which is the FCC-legal subset this SKU ships enabled - TBS's own footnote says the transmitter ships with only legal channels and power levels unlocked and points at the manual for the rest. So the retailer was describing a configuration and the manufacturer the radio; the columns now hold the radio and the model name no longer prints the retailer's ceiling. The URL still carries it. Wideband operation needs wideband antennas: TBS warns that running the top steps into a 5.8-only antenna bricks the unit. power_draw is the maker's own supply figure, 'PRO DP32 MAX: up to 1,8A' in the PRO32 HV (MMCX) / PRO32 DP column of the Unify Pro32 manual's spec table; the column's 25 mW and 1000 mW+ lines are not taken for the DP, because the cell does not say they cover it, read 2026-10-18 at full resolution; no supply voltage is printed beside it. It is the VTX's input draw, not its RF output.
