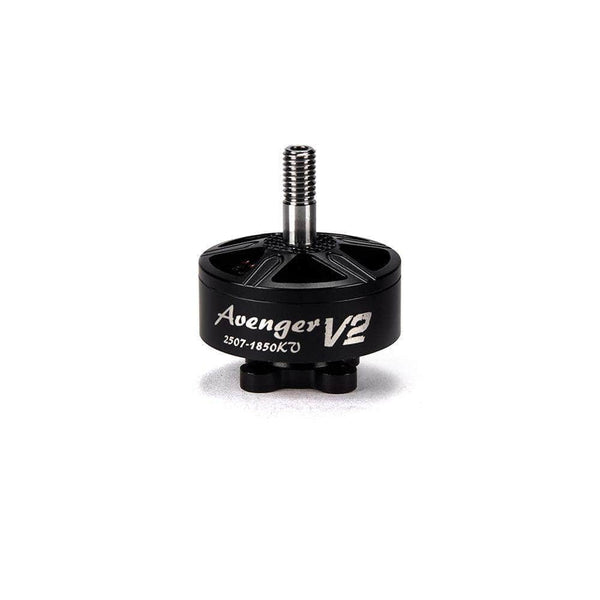

BrotherHobby Avenger V2 2507

BrotherHobby Avenger V2 2507
Image: racedayquads.com
Stator2507
KV options1850
Weight38.0 g
ShaftM5
Max cells4-6S
Configuration12N14P
DimensionsØ30x35 mm
Mount16x16mm (M3)
Max thrust2130 g
Price (approx.)28.99 USD

Thrust data (BrotherHobby bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1200 HQ 7.0*3.5*3 Triblade 6S 30 1.6 A 7378 240 g 6.25 g/W
1200 HQ 7.0*3.5*3 Triblade 6S 40 3.5 A 9637 440 g 5.24 g/W
1200 HQ 7.0*3.5*3 Triblade 6S 50 5.7 A 11345 630 g 4.61 g/W
1200 HQ 7.0*3.5*3 Triblade 6S 60 9.4 A 13345 890 g 3.95 g/W
1200 HQ 7.0*3.5*3 Triblade 6S 70 14.0 A 15160 1170 g 3.48 g/W
1200 HQ 7.0*3.5*3 Triblade 6S 80 21.4 A 17200 1530 g 2.99 g/W
1200 HQ 7.0*3.5*3 Triblade 6S 90 28.1 A 18466 1780 g 2.65 g/W
1200 HQ 7.0*3.5*3 Triblade 6S 100 33.4 A 19308 2020 g 2.53 g/W
1500 HQ 6.0*4.0*3 Triblade 6S 30 1.9 A 9551 220 g 4.82 g/W
1500 HQ 6.0*4.0*3 Triblade 6S 40 4.1 A 12676 420 g 4.27 g/W
1500 HQ 6.0*4.0*3 Triblade 6S 50 6.4 A 14893 600 g 3.91 g/W
1500 HQ 6.0*4.0*3 Triblade 6S 60 10.0 A 17469 830 g 3.46 g/W
1500 HQ 6.0*4.0*3 Triblade 6S 70 16.4 A 20792 1180 g 3.0 g/W
1500 HQ 6.0*4.0*3 Triblade 6S 80 25.0 A 23565 1540 g 2.58 g/W
1500 HQ 6.0*4.0*3 Triblade 6S 90 31.6 A 25580 1780 g 2.37 g/W
1500 HQ 6.0*4.0*3 Triblade 6S 100 38.1 A 27115 2040 g 2.25 g/W
1500 HQ 7.0*3.5*3 Triblade 5S 30 2.2 A 7728 270 g 6.11 g/W
1500 HQ 7.0*3.5*3 Triblade 5S 40 5.0 A 10330 500 g 4.98 g/W
1500 HQ 7.0*3.5*3 Triblade 5S 50 7.8 A 11958 690 g 4.42 g/W
1500 HQ 7.0*3.5*3 Triblade 5S 60 13.0 A 14119 980 g 3.77 g/W
1500 HQ 7.0*3.5*3 Triblade 5S 70 17.8 A 15538 1150 g 3.23 g/W
1500 HQ 7.0*3.5*3 Triblade 5S 80 29.5 A 18057 1700 g 2.9 g/W
1500 HQ 7.0*3.5*3 Triblade 5S 90 38.8 A 19314 1940 g 2.53 g/W
1500 HQ 7.0*3.5*3 Triblade 5S 100 45.0 A 20093 2130 g 2.39 g/W
1750 HQ 6.0*4.0*3 Triblade 5S 30 2.0 A 8809 200 g 4.98 g/W
1750 HQ 6.0*4.0*3 Triblade 5S 40 4.0 A 11626 360 g 4.48 g/W
1750 HQ 6.0*4.0*3 Triblade 5S 50 7.3 A 14423 580 g 3.97 g/W
1750 HQ 6.0*4.0*3 Triblade 5S 60 11.0 A 16789 780 g 3.55 g/W
1750 HQ 6.0*4.0*3 Triblade 5S 70 16.9 A 19519 1060 g 3.14 g/W
1750 HQ 6.0*4.0*3 Triblade 5S 80 24.9 A 22392 1390 g 2.81 g/W
1750 HQ 6.0*4.0*3 Triblade 5S 90 35.7 A 24916 1720 g 2.43 g/W
1750 HQ 6.0*4.0*3 Triblade 5S 100 41.9 A 26283 1920 g 2.31 g/W
1850 HQ 5.0*4.8*3 Triblade 6S 30 2.4 A 12170 220 g 3.82 g/W
1850 HQ 5.0*4.8*3 Triblade 6S 40 4.4 A 15338 370 g 3.5 g/W
1850 HQ 5.0*4.8*3 Triblade 6S 50 7.7 A 18952 580 g 3.14 g/W
1850 HQ 5.0*4.8*3 Triblade 6S 60 12.9 A 22392 820 g 2.65 g/W
1850 HQ 5.0*4.8*3 Triblade 6S 70 17.5 A 25412 1080 g 2.58 g/W
1850 HQ 5.0*4.8*3 Triblade 6S 80 28.5 A 29918 1490 g 2.19 g/W
1850 HQ 5.0*4.8*3 Triblade 6S 90 37.0 A 32645 1800 g 2.04 g/W
1850 HQ 5.0*4.8*3 Triblade 6S 100 43.3 A 34274 2003 g 1.95 g/W
2200 HQ 5.0*4.8*3 Triblade 5S 30 2.8 A 11794 200 g 3.57 g/W
2200 HQ 5.0*4.8*3 Triblade 5S 40 5.1 A 14930 340 g 3.33 g/W
2200 HQ 5.0*4.8*3 Triblade 5S 50 10.0 A 19194 590 g 2.95 g/W
2200 HQ 5.0*4.8*3 Triblade 5S 60 15.2 A 22397 820 g 2.7 g/W
2200 HQ 5.0*4.8*3 Triblade 5S 70 20.9 A 25218 1050 g 2.52 g/W
2200 HQ 5.0*4.8*3 Triblade 5S 80 32.8 A 29212 1420 g 2.19 g/W
2200 HQ 5.0*4.8*3 Triblade 5S 90 42.5 A 31997 1700 g 2.02 g/W
2200 HQ 5.0*4.8*3 Triblade 5S 100 48.8 A 33456 1870 g 1.95 g/W

Manufacturer bench figures (BrotherHobby 2017 bench, 8 throttle points per KV/prop; 1200/1500/1850 KV on 6S, 1500/1750/2200 KV on 5S); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Hurricane LR 6026-2 6.0x2.6 2 3.0 g
Gemfan Freestyle 6030 6.0x3.0 3 4.45 g
HQProp 5.5X2.2X3 5.5x2.2 3 4.6 g
HQProp 5535 5.5x3.5x3 V2 5.5x3.5 3 4.6 g
HQProp 6x4.3x2 6.0x4.3 2 4.7 g

Where this data comes from

Bench sheets cover the 1200/1500/1750/1850/2200 KV versions; 41.3 g with 16 cm wires, 12N14P, body Φ30x35 mm
