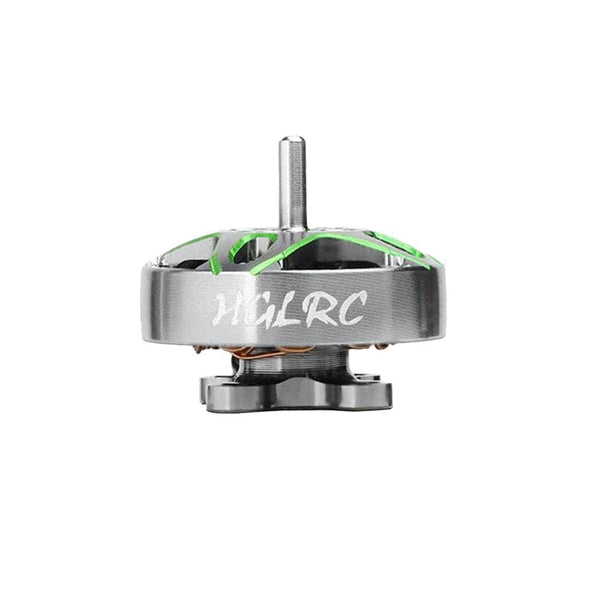

HGLRC SPECTER 1202.5

Stator	1202.5
KV options	11000
Weight	4.47 g
Shaft	M1.5x4.8mm
Max cells	1-2S
Configuration	9N12P
Dimensions	Ø15.84x8.9 mm
Mount	4-M2-EQS-Ø9
Max thrust	226 g
Price (approx.)	16.49 USD

At 4.47 g it is right at the class average across the 3 1202-class motors in our database (avg 4.5 g).

Best props for the SPECTER 1202.5

2-3 inches

Thrust data (HGLRC bench test)

KV	Prop	Battery	Throttle	Current	RPM	Thrust	Efficiency
11000	GF 65R	1S	50	1.2 A	—	44 g	9.91 g/W
11000	GF 65R	1S	100	5.9 A	—	116 g	5.314 g/W
11000	GF 65R	2S	50	2.4 A	—	86 g	4.842 g/W
11000	GF 65R	2S	100	9.7 A	—	222 g	3.093 g/W
11000	HQ T65R	1S	50	1.7 A	—	44 g	6.995 g/W
11000	HQ T65R	1S	100	5.9 A	—	118 g	5.405 g/W
11000	HQ T65R	2S	50	3.5 A	—	89 g	3.436 g/W
11000	HQ T65R	2S	100	11.9 A	—	226 g	2.566 g/W
11000	HQT3x2R	1S	50	2.3 A	—	61 g	7.168 g/W
11000	HQT3x2R	1S	100	8.4 A	—	135 g	4.344 g/W
11000	GF3108	1S	50	2.3 A	—	59 g	6.933 g/W
11000	GF3108	1S	100	8.3 A	—	132 g	4.298 g/W

Manufacturer bench figures (HGLRC bench, 11000 KV at 1S (3.7 V) and 2S (7.4 V), 50% and 100% throttle on each of four 2-3in props); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

Prop	Size	Blades	Weight
HQProp 51MMX2 Ultralight	2.0x0.9	2	0.23 g
Gemfan 2216 3-Blade	2.2x1.6	3	0.7 g
Gemfan Hurricane 3018 Durable 1.5mm	3.0x1.8	2	0.75 g
Gemfan Hurricane 3018 Durable 2mm	3.0x1.8	2	0.75 g
HQProp T3x1.5 Durable	3.0x1.5	2	0.78 g

Where this data comes from

The rows are HGLRC's own 'Efficacy table', published as an image in the description gallery of the motor's product page on hglrc.com - the eighth brand this dataset has read a manufacturer sheet from, and the first whose sheet publishes a per-run MOTOR TEMPERATURE. One template across the whole SPECTER line: columns Prop (inch) / Voltages (V) / Throttle (%) / Load Currency (A) / Pull (g) / Power (W) / Efficiency (g/W) / Temperature (in full throttle load 5's). Two throttle points per prop run, 50% and 100%, no RPM column at all, and the temperature is one figure per voltage block measured after five seconds at full throttle, not per row. Two of its four props are benched at 1S only: the HQT3x2R and the GF3108 rows print a 3.7 V block and then a pair of EMPTY rows where the 7.4 V block would be, so this motor's table is 12 rows, not 16. Every row's Power column is exactly its own voltage x its own current, and the brand's headline 12 A / 88 W is the HQ T65R 2S 100% row (11.9 A / 88.1 W). The page's '12A (5s)' is a five-SECOND burst rating, not a 5S cell count - '5's' is what the table's own temperature column measures over.
