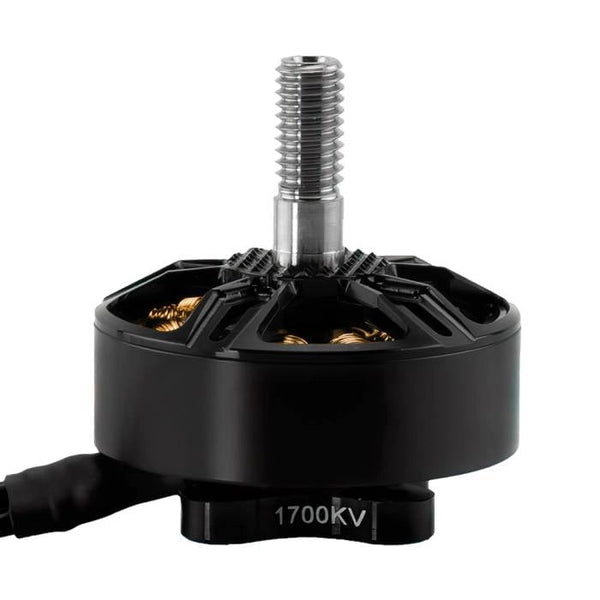

Lumenier ZIP V2 2407 Blackout

Lumenier ZIP V2 2407 Blackout
Image: racedayquads.com
Stator2407
KV options1700
Weight37.0 g
Shaft5mm
Max cells3-8S
Configuration12N14P
Dimensions32x29 mm
Mount16x16mm (M3)
Price (approx.)29.99 USD

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Hurricane LR 6026-2 6.0x2.6 2 3.0 g
Gemfan Freestyle 6030 6.0x3.0 3 4.45 g
HQProp 5.5X2.2X3 5.5x2.2 3 4.6 g
HQProp 5535 5.5x3.5x3 V2 5.5x3.5 3 4.6 g
HQProp 6x4.3x2 6.0x4.3 2 4.7 g

Where this data comes from

Lumenier's own Specifications block for the ZIP V2 2407 Blackout 1700KV states 16x16 mm M3 base mounting, a 32 x 29 mm body, 12N14P, 37 g with short wires, 3-8S ("6S most common for 1700KV"), a 24 x 7 mm stator of 0.2 mm Kawasaki silicone steel, N52SH curved magnets, Japanese NMB 9x4x4 bearings, a 4 mm titanium-alloy inner shaft, a 5 mm prop shaft and 160 mm 18AWG leads - and no thrust, current or power figure of any kind. The weight and cell range confirm what our retail listing already published
