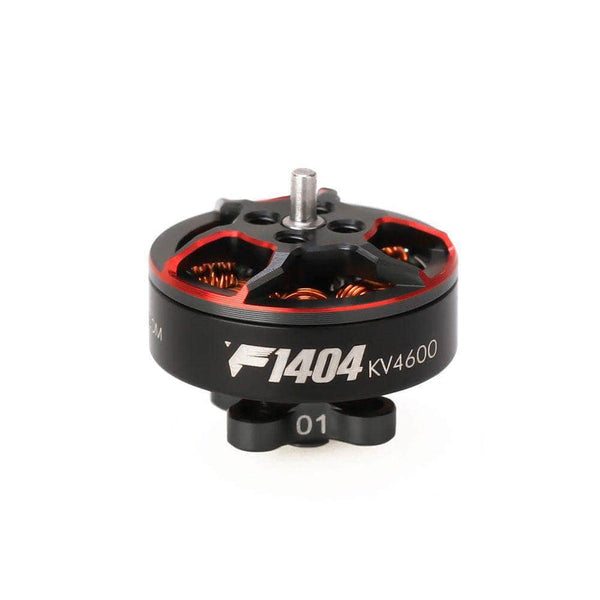

T-Motor F1404

T-Motor F1404
Image: racedayquads.com
Stator1404
KV options2900, 3800, 4600
Weight9.3 g
Shaft1.5mm
Max cells3-4S
Configuration9N12P
DimensionsØ17.9x16.6 mm
Winding resistance310 (2900KV) / 195 (3800KV) / 138 (4600KV) mOhm
Max thrust480.22 g
Price (approx.)21.99 USD

At 9.3 g it is right at the class average across the 11 1404-class motors in our database (avg 9.5 g).

Thrust data (T-Motor bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
2900 Gemfan GF3028-3 4S 50 1.49 A 18626 101.14 g 4.04 g/W
2900 Gemfan GF3028-3 4S 55 1.81 A 20037 116.37 g 3.83 g/W
2900 Gemfan GF3028-3 4S 60 2.16 A 21386 133.92 g 3.69 g/W
2900 Gemfan GF3028-3 4S 65 2.55 A 22764 152.76 g 3.57 g/W
2900 Gemfan GF3028-3 4S 70 3.0 A 24257 170.61 g 3.39 g/W
2900 Gemfan GF3028-3 4S 75 3.45 A 25447 188.96 g 3.27 g/W
2900 Gemfan GF3028-3 4S 80 3.93 A 26608 209.26 g 3.18 g/W
2900 Gemfan GF3028-3 4S 85 4.49 A 27892 230.6 g 3.06 g/W
2900 Gemfan GF3028-3 4S 90 5.1 A 29113 253.06 g 2.96 g/W
2900 Gemfan GF3028-3 4S 95 5.78 A 30312 276.26 g 2.86 g/W
2900 Gemfan GF3028-3 4S 100 6.38 A 31327 294.98 g 2.76 g/W
2900 HQProp HQ3520-3 4S 50 1.96 A 16954 137.2 g 4.17 g/W
2900 HQProp HQ3520-3 4S 55 2.42 A 18273 158.88 g 3.91 g/W
2900 HQProp HQ3520-3 4S 60 2.92 A 19408 181.41 g 3.71 g/W
2900 HQProp HQ3520-3 4S 65 3.45 A 20554 201.38 g 3.48 g/W
2900 HQProp HQ3520-3 4S 70 4.1 A 21611 225.94 g 3.29 g/W
2900 HQProp HQ3520-3 4S 75 4.76 A 22663 250.33 g 3.14 g/W
2900 HQProp HQ3520-3 4S 80 5.48 A 23645 272.03 g 2.97 g/W
2900 HQProp HQ3520-3 4S 85 6.18 A 24486 291.77 g 2.82 g/W
2900 HQProp HQ3520-3 4S 90 6.9 A 25303 310.66 g 2.69 g/W
2900 HQProp HQ3520-3 4S 95 7.71 A 26102 332.24 g 2.58 g/W
2900 HQProp HQ3520-3 4S 100 8.49 A 26739 350.22 g 2.47 g/W
2900 Gemfan GF4023-3 4S 50 2.57 A 15090 170.51 g 3.95 g/W
2900 Gemfan GF4023-3 4S 55 3.16 A 16226 194.68 g 3.67 g/W
2900 Gemfan GF4023-3 4S 60 3.81 A 17046 217.53 g 3.41 g/W
2900 Gemfan GF4023-3 4S 65 4.49 A 17831 239.54 g 3.18 g/W
2900 Gemfan GF4023-3 4S 70 5.19 A 18686 260.85 g 3.0 g/W
2900 Gemfan GF4023-3 4S 75 5.93 A 19409 282.41 g 2.84 g/W
2900 Gemfan GF4023-3 4S 80 6.71 A 19992 304.33 g 2.71 g/W
2900 Gemfan GF4023-3 4S 85 7.5 A 20606 321.46 g 2.56 g/W
2900 Gemfan GF4023-3 4S 90 8.3 A 21052 337.24 g 2.43 g/W
2900 Gemfan GF4023-3 4S 95 9.13 A 21450 350.34 g 2.3 g/W
2900 Gemfan GF4023-3 4S 100 9.9 A 21765 361.95 g 2.19 g/W
2900 Gemfan GF4024-2 4S 50 2.25 A 16242 158.42 g 4.19 g/W
2900 Gemfan GF4024-2 4S 55 2.78 A 17406 184.12 g 3.94 g/W
2900 Gemfan GF4024-2 4S 60 3.38 A 18446 210.68 g 3.71 g/W
2900 Gemfan GF4024-2 4S 65 4.01 A 19488 236.43 g 3.51 g/W
2900 Gemfan GF4024-2 4S 70 4.71 A 20469 262.59 g 3.32 g/W
2900 Gemfan GF4024-2 4S 75 5.48 A 21363 289.41 g 3.15 g/W
2900 Gemfan GF4024-2 4S 80 6.24 A 22153 313.81 g 3.0 g/W
2900 Gemfan GF4024-2 4S 85 7.06 A 22867 336.89 g 2.85 g/W
2900 Gemfan GF4024-2 4S 90 7.9 A 23547 357.9 g 2.7 g/W
2900 Gemfan GF4024-2 4S 95 8.7 A 24098 377.11 g 2.59 g/W
2900 Gemfan GF4024-2 4S 100 9.53 A 24573 393.15 g 2.46 g/W
2900 Gemfan GF3028-3 5S 50 2.01 A 22275 153.69 g 3.63 g/W
2900 Gemfan GF3028-3 5S 55 2.45 A 24011 180.08 g 3.49 g/W
2900 Gemfan GF3028-3 5S 60 3.01 A 25597 207.63 g 3.28 g/W
2900 Gemfan GF3028-3 5S 65 3.47 A 27086 226.24 g 3.1 g/W
2900 Gemfan GF3028-3 5S 70 4.06 A 28470 250.98 g 2.94 g/W
2900 Gemfan GF3028-3 5S 75 4.67 A 29959 276.05 g 2.81 g/W
2900 Gemfan GF3028-3 5S 80 5.34 A 31475 305.71 g 2.72 g/W
2900 Gemfan GF3028-3 5S 85 6.08 A 32893 334.99 g 2.62 g/W
2900 Gemfan GF3028-3 5S 90 6.89 A 34244 363.73 g 2.52 g/W
2900 Gemfan GF3028-3 5S 95 7.72 A 35483 386.68 g 2.39 g/W
2900 Gemfan GF3028-3 5S 100 8.59 A 36383 413.56 g 2.3 g/W
2900 HQProp HQ3520-3 5S 50 2.67 A 19884 185.74 g 3.31 g/W
2900 HQProp HQ3520-3 5S 55 3.29 A 21321 214.21 g 3.1 g/W
2900 HQProp HQ3520-3 5S 60 4.0 A 22568 243.77 g 2.9 g/W
2900 HQProp HQ3520-3 5S 65 4.76 A 23722 274.35 g 2.74 g/W
2900 HQProp HQ3520-3 5S 70 5.55 A 24855 301.01 g 2.58 g/W
2900 HQProp HQ3520-3 5S 75 6.35 A 25777 322.66 g 2.42 g/W
2900 HQProp HQ3520-3 5S 80 7.14 A 26619 345.46 g 2.31 g/W
2900 HQProp HQ3520-3 5S 85 7.96 A 27383 368.79 g 2.21 g/W
2900 HQProp HQ3520-3 5S 90 8.81 A 28160 388.26 g 2.1 g/W
2900 HQProp HQ3520-3 5S 95 9.72 A 28698 408.37 g 2.01 g/W
2900 HQProp HQ3520-3 5S 100 10.57 A 29036 421.77 g 1.91 g/W
2900 Gemfan GF3028-3 6S 50 2.51 A 25035 183.71 g 2.9 g/W
2900 Gemfan GF3028-3 6S 55 3.09 A 26682 210.96 g 2.71 g/W
2900 Gemfan GF3028-3 6S 60 3.7 A 28369 239.65 g 2.57 g/W
2900 Gemfan GF3028-3 6S 65 4.37 A 30036 268.22 g 2.44 g/W
2900 Gemfan GF3028-3 6S 70 5.05 A 31788 301.44 g 2.37 g/W
2900 Gemfan GF3028-3 6S 75 5.81 A 33425 333.89 g 2.28 g/W
2900 Gemfan GF3028-3 6S 80 6.57 A 35044 368.79 g 2.23 g/W
2900 Gemfan GF3028-3 6S 85 7.6 A 36664 406.59 g 2.13 g/W
2900 Gemfan GF3028-3 6S 90 8.59 A 37964 436.56 g 2.02 g/W
2900 Gemfan GF3028-3 6S 95 9.57 A 39075 462.43 g 1.92 g/W
2900 Gemfan GF3028-3 6S 100 10.44 A 39783 480.22 g 1.83 g/W
3800 Gemfan GF3016 4S 50 4.28 A 22759 158.01 g 2.32 g/W
3800 Gemfan GF3016 4S 55 5.37 A 24844 184.56 g 2.15 g/W
3800 Gemfan GF3016 4S 60 6.54 A 26555 206.52 g 1.98 g/W
3800 Gemfan GF3016 4S 65 7.73 A 28392 229.16 g 1.86 g/W
3800 Gemfan GF3016 4S 70 8.91 A 29967 245.54 g 1.73 g/W
3800 Gemfan GF3016 4S 75 10.14 A 31502 263.84 g 1.64 g/W
3800 Gemfan GF3016 4S 80 11.2 A 32843 275.66 g 1.55 g/W
3800 Gemfan GF3016 4S 85 12.31 A 34148 290.17 g 1.49 g/W
3800 Gemfan GF3016 4S 90 13.49 A 35355 304.36 g 1.43 g/W
3800 Gemfan GF3016 4S 95 14.74 A 36507 315.45 g 1.35 g/W
3800 Gemfan GF3016 4S 100 16.19 A 37705 324.52 g 1.27 g/W
3800 HQProp HQ3*3*3 4S 50 5.92 A 19767 187.04 g 1.98 g/W
3800 HQProp HQ3*3*3 4S 55 7.45 A 21382 214.5 g 1.81 g/W
3800 HQProp HQ3*3*3 4S 60 8.71 A 22438 232.18 g 1.68 g/W
3800 HQProp HQ3*3*3 4S 65 9.74 A 23265 248.93 g 1.61 g/W
3800 HQProp HQ3*3*3 4S 70 10.98 A 23950 259.14 g 1.49 g/W
3800 HQProp HQ3*3*3 4S 75 12.28 A 24750 269.46 g 1.38 g/W
3800 HQProp HQ3*3*3 4S 80 13.86 A 25735 278.38 g 1.27 g/W
3800 HQProp HQ3*3*3 4S 85 15.12 A 26322 282.22 g 1.18 g/W
3800 HQProp HQ3*3*3 4S 90 16.49 A 26994 291.97 g 1.12 g/W
3800 HQProp HQ3*3*3 4S 95 17.67 A 27103 294.61 g 1.06 g/W
3800 HQProp HQ3*3*3 4S 100 19.4 A 27887 301.03 g 0.99 g/W
4600 Gemfan GF3016 4S 50 5.23 A 26532 184.21 g 2.21 g/W
4600 Gemfan GF3016 4S 55 6.37 A 28299 210.22 g 2.08 g/W
4600 Gemfan GF3016 4S 60 7.64 A 30006 233.36 g 1.92 g/W
4600 Gemfan GF3016 4S 65 8.85 A 31559 254.72 g 1.82 g/W
4600 Gemfan GF3016 4S 70 10.01 A 32770 268.5 g 1.69 g/W
4600 Gemfan GF3016 4S 75 11.32 A 34340 287.6 g 1.61 g/W
4600 Gemfan GF3016 4S 80 12.5 A 35813 300.59 g 1.52 g/W
4600 Gemfan GF3016 4S 85 13.7 A 37190 316.02 g 1.46 g/W
4600 Gemfan GF3016 4S 90 14.98 A 38436 330.89 g 1.41 g/W
4600 Gemfan GF3016 4S 95 16.24 A 39376 340.24 g 1.34 g/W
4600 Gemfan GF3016 4S 100 17.54 A 40053 344.73 g 1.26 g/W
4600 HQProp HQ3*3*3 4S 50 6.79 A 21921 207.43 g 1.92 g/W
4600 HQProp HQ3*3*3 4S 55 8.32 A 23260 233.33 g 1.76 g/W
4600 HQProp HQ3*3*3 4S 60 9.53 A 24001 248.36 g 1.64 g/W
4600 HQProp HQ3*3*3 4S 65 10.59 A 24791 265.25 g 1.58 g/W
4600 HQProp HQ3*3*3 4S 70 11.96 A 25622 277.23 g 1.46 g/W
4600 HQProp HQ3*3*3 4S 75 13.2 A 26175 284.98 g 1.37 g/W
4600 HQProp HQ3*3*3 4S 80 14.55 A 26641 288.18 g 1.25 g/W
4600 HQProp HQ3*3*3 4S 85 15.87 A 27260 292.27 g 1.17 g/W
4600 HQProp HQ3*3*3 4S 90 17.29 A 27956 302.37 g 1.11 g/W
4600 HQProp HQ3*3*3 4S 95 18.65 A 28299 307.61 g 1.05 g/W
4600 HQProp HQ3*3*3 4S 100 20.23 A 28771 310.57 g 0.98 g/W

Manufacturer bench figures (T-Motor bench, eleven runs across three KV: at 2900 KV Gemfan GF3028-3, HQProp HQ3520-3, Gemfan GF4023-3 and Gemfan GF4024-2 on 4S (~16.8 V), GF3028-3 and HQ3520-3 on 5S (~21.0 V) and GF3028-3 on 6S (~25.2 V); at 3800 KV and again at 4600 KV, Gemfan GF3016 and HQProp HQ3*3*3 on 4S (~15.9 V); 11 throttle points (50-100% in 5% steps) on each run); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan 4022F 2-Blade 4.0x2.2 2 0.37 g
Gemfan Hurricane 3018 Durable 1.5mm 3.0x1.8 2 0.75 g
Gemfan Hurricane 3018 Durable 2mm 3.0x1.8 2 0.75 g
HQProp T3x1.5 Durable 3.0x1.5 2 0.78 g
HQProp T3.5x2.2x2 3.5x2.2 2 1.1 g

Where this data comes from

Bench rows, configuration, dimensions and winding resistances are from T-Motor's own "Product Drawing", "Specifications" and "Test Report" images on tmotorhobby.com/goods-1099.html. Identity with our RaceDayQuads listings is almost the whole block reprinted: on the 3800 KV listing RDQ prints Motor Dimensions O17.9x16.6mm, No.of Cells (Lipo) 3-4S, Configuration 9N12P, Idle Current (10V) .5A, Internal Resistance 195mOhm and Max. Power (60S) 304W, and on the 4600 KV one the same six lines with 0.6A, 138mOhm and 316W - every one of them the sheet's own figure for that winding, to the digit. kv_options goes from 2 to 3: the Specifications block carries a third Test Item, KV2900 at 310 mOhm, 4-6S, 0.4 A idle, a 10.45 A 60-second peak and 262 W max power, and the report benches it on seven runs. All three windings are 9N12P on a 24#AWG 150 mm lead in an O17.9*16.6 mm body, and the block gives all three a Weight (Incl. Cable) of 9.34 g where both retail listings round it to 9.3 g. Max thrust is the 2900 KV Gemfan GF3028-3 6S 100% row, 480.22 g, where the page carried none. All 121 rows pass the efficiency identity - printed thrust / printed power is the printed efficiency - and printed power is voltage x current on all 121 to within the band the two-decimal columns allow, with no run carrying an offset, so nothing here has the V2208's or the V2306.5's constant. Two efficiency cells are truncated rather than rounded (3.69 where 133.92 g / 36.24 W is 3.695, and 3.91 where 158.88 / 40.58 is 3.9152); both are the sheet's own printed value and are published as printed. Five source facts recorded rather than repaired. First, the spec-block cross-check identifies the run: on the 3800 KV and 4600 KV halves the block's Peak Current(60s) and Max. Power(60s) are the table maximum truncated (19 A and 304 W against the HQ3*3*3 100% row's 19.40 A and 304.72 W; 20 A and 316 W against that same prop's 20.23 A and 316.25 W), but on the 2900 KV half the two come apart - its 262 W is the GF3028-3 6S 100% row's 262.04 W, the largest power in that winding's table, while its 10.45 A is neither that row's 10.44 A nor the largest current in the table, which is the HQ3520-3 5S 100% row's 10.57 A. So the block quotes one run, the one that peaks in power, and renders that run's current a hundredth high; the F1507's "one run, not the sheet's maximum" reading holds, and what is new is that the run is identifiable. Second, the block states max_cells per winding - 4-6S at 2900 KV against 3-4S at 3800 and 4600 KV - and our published "3-4S" came off the two RaceDayQuads listings, so it is right for both windings the shop sells and wrong for the one this entry adds, which is 77 of the 121 rows. Third, the Product Drawing dimensions the mount as a bolt circle and prints the symbol: "O9" on a leader to the red pitch circle through four holes at 90 degrees, with "4-M2" on a leader to one of them. Measured against the drawing's own body circle the pitch circle spans 0.495 of it, against the 0.503 a 9 mm bolt circle predicts and the 0.711 a 9x9 square would - so it is a 9 mm bolt circle and a 6.4 mm square, and mount_mm stays unpublished as on the other T-Motor and Axisflying pages. Fourth, the shaft is two figures again and this sheet names three: the block's Shaft Diameter is 2 mm, the drawing calls out O1.5 on a 3 mm stub at the base and O5 on the bell boss, and RaceDayQuads publishes 1.5mm, which is the prop end and is what our page already carries. The drawing also writes its overall length with a comma - 16,6 - on a sheet whose block prints "O17.9*16.6mm" with a dot. Fifth, the two halves of the report were run at different ambient temperatures, so the Operating Temperature column is not comparable across the page: the 2900 KV sheet states 24 C ambient and reaches 49.5, 52, 56 and 58 C on its four 4S runs, 60 and 64 C on its two 5S runs and 68 C on the 6S one, while the 3800 and 4600 KV sheets state 8 C ambient and reach 48 and 45 C, and 50 and 45 C. The row schema holds no temperature column, so they are here. recommended_props stays empty although the sheet benches a 3016, a 3028, a 3520, a 4023 and a 4024: a bench prop set is not a recommendation, and T-Motor states none. Propeller names are as this sheet prints them, with the brand prefixed.
