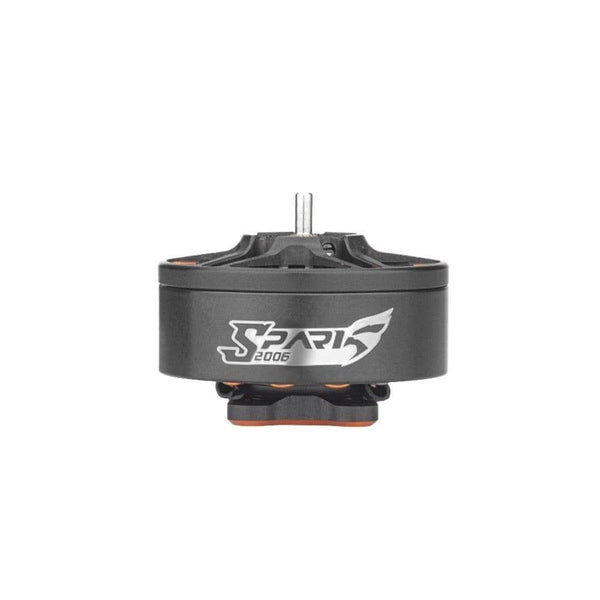

VCI HOBBY Spark 2006

VCI HOBBY Spark 2006
Image: racedayquads.com
Stator2006
KV options2150
Weight21.4 g
Shaft1.5mm
Max cells6S
Configuration12S14P
DimensionsØ24.6x19.7 mm
Max thrust1340 g
Price (approx.)14.99 USD

Thrust data (VCI HOBBY bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1850 GF D90-3 6S 30 2.93 A 20301 217 g 3.09 g/W
1850 GF D90-3 6S 40 4.64 A 23686 307 g 2.76 g/W
1850 GF D90-3 6S 50 6.23 A 26317 384 g 2.57 g/W
1850 GF D90-3 6S 60 7.82 A 28781 477 g 2.54 g/W
1850 GF D90-3 6S 70 9.56 A 30861 541 g 2.36 g/W
1850 GF D90-3 6S 80 11.67 A 35391 640 g 2.29 g/W
1850 GF D90-3 6S 90 14.27 A 37714 772 g 2.25 g/W
1850 GF D90-3 6S 100 16.09 A 38780 857 g 2.22 g/W
1850 GF D90-5 6S 30 3.24 A 18768 211 g 2.71 g/W
1850 GF D90-5 6S 40 5.32 A 23864 335 g 2.62 g/W
1850 GF D90-5 6S 50 7.44 A 28221 421 g 2.36 g/W
1850 GF D90-5 6S 60 9.62 A 32510 513 g 2.22 g/W
1850 GF D90-5 6S 70 12.65 A 34850 651 g 2.14 g/W
1850 GF D90-5 6S 80 16.54 A 35314 775 g 1.95 g/W
1850 GF D90-5 6S 90 20.25 A 34185 925 g 1.9 g/W
1850 GF D90-5 6S 100 22.53 A 34571 1006 g 1.86 g/W
1850 GF 5125-3 6S 30 3.16 A 17522 289 g 3.81 g/W
1850 GF 5125-3 6S 40 5.41 A 20048 457 g 3.52 g/W
1850 GF 5125-3 6S 50 7.76 A 22593 560 g 3.01 g/W
1850 GF 5125-3 6S 60 10.05 A 24515 692 g 2.87 g/W
1850 GF 5125-3 6S 70 13.49 A 22553 900 g 2.78 g/W
1850 GF 5125-3 6S 80 18.41 A 26747 1060 g 2.4 g/W
1850 GF 5125-3 6S 90 21.88 A 32652 1217 g 2.32 g/W
1850 GF 5125-3 6S 100 24.86 A 21622 1340 g 2.25 g/W
2150 GF D90-3 6S 30 3.81 A 21591 246 g 2.69 g/W
2150 GF D90-3 6S 40 5.85 A 25212 359 g 2.56 g/W
2150 GF D90-3 6S 50 7.4 A 28124 447 g 2.52 g/W
2150 GF D90-3 6S 60 9.81 A 30952 579 g 2.46 g/W
2150 GF D90-3 6S 70 12.45 A 34025 672 g 2.25 g/W
2150 GF D90-3 6S 80 15.68 A 37999 790 g 2.1 g/W
2150 GF D90-3 6S 90 20.02 A 42125 983 g 2.05 g/W
2150 GF D90-3 6S 100 21.51 A 42853 1028 g 1.99 g/W
3450 GF D90-3 4S 30 6.74 A 22270 270 g 2.5 g/W
3450 GF D90-3 4S 40 10.46 A 26000 386 g 2.31 g/W
3450 GF D90-3 4S 50 13.97 A 28981 475 g 2.13 g/W
3450 GF D90-3 4S 60 17.55 A 31872 570 g 2.03 g/W
3450 GF D90-3 4S 70 21.11 A 34485 667 g 1.97 g/W
3450 GF D90-3 4S 80 26.34 A 37786 776 g 1.84 g/W
3450 GF D90-3 4S 90 31.12 A 41359 899 g 1.81 g/W
3450 GF D90-3 4S 100 34.89 A 81794 999 g 1.79 g/W

Manufacturer bench figures (VCI Hobby bench, 1850 KV at 6S (24 V) on three 5in props, 2150 KV at 6S (24 V) and 3450 KV at 4S (16 V) on one each, 8 throttle points (30-100%) per run); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

The rows are VCI Hobby's own 'Testing Data' table, published as an image in the Specifications tab of the motor's product page on vcihobby.com. VCI sells and benches this motor in three windings and all three tables are here; `kv_options` keeps the 2150 KV our retail source sells, so MAX THRUST READS 1340 g, WHICH IS THE 1850 KV WINDING on a GF 5125-3 - the 2150 KV's own best is 1028 g. The three windings were benched on different packs - 1850 and 2150 KV at 6S (24 V), 3450 KV at 4S (16 V) - and each row reproduces its own sheet's identities against its own voltage. Each panel lands on a row: 24.86 A / 596.64 W is the 1850 KV's GF 5125-3 100% row, 21.51 A / 516.24 W the 2150 KV's and 34.89 A / 558.24 W the 3450 KV's. TWO SOURCE FACTS RECORDED RATHER THAN REPAIRED: the 1850 KV's GF 5125-3 run prints an RPM column that wanders instead of climbing (22553 at 70% against 24515 at 60%, then 21622 at 100% against 32652 at 90%), and the 3450 KV's 100% row prints 81794 RPM - roughly double its 90% figure and above the 55200 RPM that 3450 KV x 16 V allows unloaded. Both are published as printed. The panels give a per-winding internal resistance, 104, 90 and 45 mOhm, which is why resistance_mohm stays empty: this page is one motor in three windings and the field holds one number. Identity with our retail listing is 2150 KV, the 2006 stator (the panels print Ø20*L6 mm), 6S and 21.4 g including cable; the panels' shaft is written Ø1.5 mm. The 1850 KV panel prints a shorter body, Ø24.6*L18.7 mm, against the Ø24.6*L19.7 mm the other two state and this page carries.
