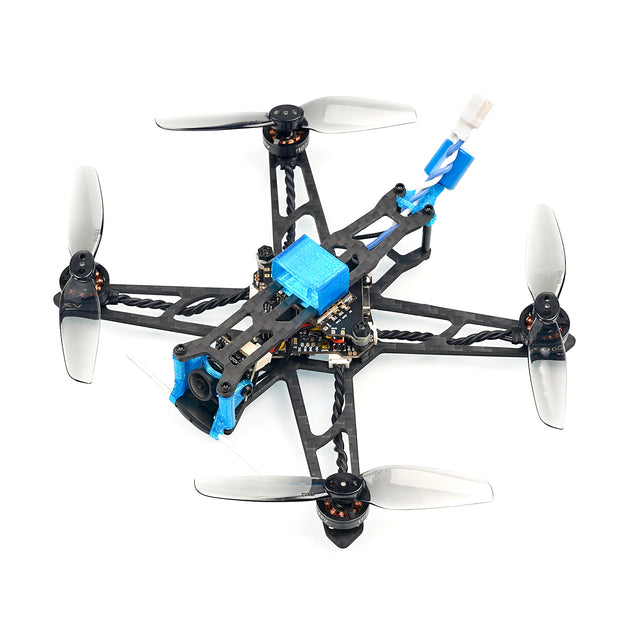

BetaFPV HX115 LR
At 44 g dry the HX115 LR is 56.6-58.3 g ready to fly on the 6 matching 1S packs listed below (450-580 mAh): the pack is 22-25% of all-up weight. BetaFPV publishes 56 g all-up with its own pack.
| Class | toothpick (1S long range) |
|---|---|
| Wheelbase | 126 mm |
| Weight (no battery) | 44 g |
| Typical AUW | 56 g |
| Prop size | 3 " |
| Prop mount | 1.5mm shaft |
| Motors | BetaFPV 1102 18000KV |
| VTX system | analog 350mW |
| Camera | Caddx ANT camera |
| Flight controller | F4 1S 12A AIO FC with ELRS 2.4G Receiver |
| Receiver options | Built-in ExpressLRS 2.4G Receiver |
| Manufacturer flight time | 3-5 (1S 450) / 15+ (18650 3000) min |
What battery does the HX115 LR use?
| Cells | 1S |
|---|---|
| Capacity | 450 mAh |
| Recommended range | 450 LiPo or 18650 3000 Li-ion mAh |
| Connector | BT2.0 |
| Chemistry | LiHV / Li-ion |
Matching packs from our database
All-up weight is this quad's 44 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| BetaFPV 450mAh 1S | 450 | 30C | 12.7 g | 56.7 g | $5.19 |
| XILO Essential JST 450mAh 1S | 450 | 100C | 13.79 g | 57.79 g | $5.7 |
| BetaFPV LAVA II Pack 480mAh 1S | 480 | 95C | 12.6 g | 56.6 g | $3.7 |
| NewBeeDrone Nitro Nectar HV NX69 550mAh 1S | 550 | 80C | 14.3 g | 58.3 g | $2.75 |
| BetaFPV 550mAh 1S | 550 | 40C | 13.99 g | 57.99 g | $3.89 |
| BetaFPV LAVA II Pack 580mAh 1S | 580 | 95C | 14.1 g | 58.1 g | $3.29 |
HX115 LR flight time
The HX115 LR flies ≈ 5.4-7.0 min on the 4 pack capacities listed above at our 4 A cruise-current estimate, with 80% of a pack used: 450 mAh ≈ 5.4 min, 480 mAh ≈ 5.8 min, 550 mAh ≈ 6.6 min, 580 mAh ≈ 7.0 min.
Where this data comes from
HQ 3020 bi-blade props, 126mm wheelbase.
