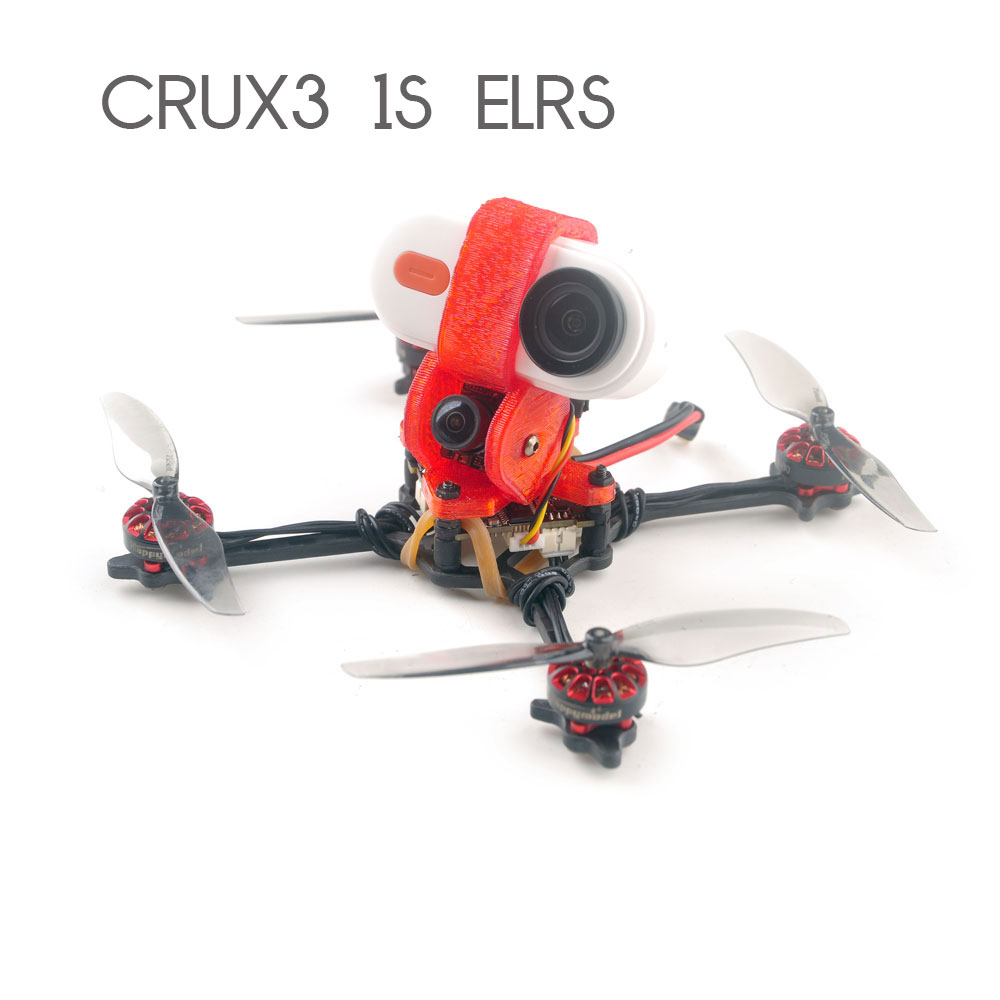

Happymodel Crux3
At 40 g dry the Crux3 is 54.5-56 g ready to fly on the 6 matching 1S packs listed below (650-660 mAh): the pack is 27-29% of all-up weight.
| Class | toothpick (1S 3in) |
|---|---|
| Wheelbase | 115 mm |
| Weight (no battery) | 40 g |
| Prop size | 3 " |
| Motors | Happymodel EX1202.5 11500KV |
| VTX system | analog |
| Manufacturer flight time | 4.5 (1S 650, with camera payload) min |
Full motor specs: Happymodel EX1202.5
What battery does the Crux3 use?
| Cells | 1S |
|---|---|
| Capacity | 650 mAh |
| Recommended range | 450-720 mAh |
| Chemistry | LiHV |
Matching packs from our database
All-up weight is this quad's 40 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| Happymodel 650mAh 1S | 650 | 60C | 16.0 g | 56 g | $2.83 |
| RDQ RDQ Series 650mAh 1S | 650 | 60C | 14.5 g | 54.5 g | $3.44 |
| GNB Gaoneng / w 660mAh 1S | 660 | 90C | 15.0 g | 55 g | $2.79 |
| GNB Gaoneng 660mAh 1S | 660 | 90C | 15.5 g | 55.5 g | $2.99 |
| GNB Gaoneng Cabled 660mAh 1S | 660 | 90C | 15.0 g | 55 g | $2.99 |
| RDQ RDQ Series 660mAh 1S | 660 | 90C | 15.5 g | 55.5 g | $3.58 |
Crux3 flight time
The Crux3 flies ≈ 5.2-5.3 min on the 2 pack capacities listed above at our 6 A cruise-current estimate, with 80% of a pack used: 650 mAh ≈ 5.2 min, 660 mAh ≈ 5.3 min.
Where this data comes from
115mm wheelbase, Gemfan 75mm bi-blade. NLR 18650 variant exists for long range.
