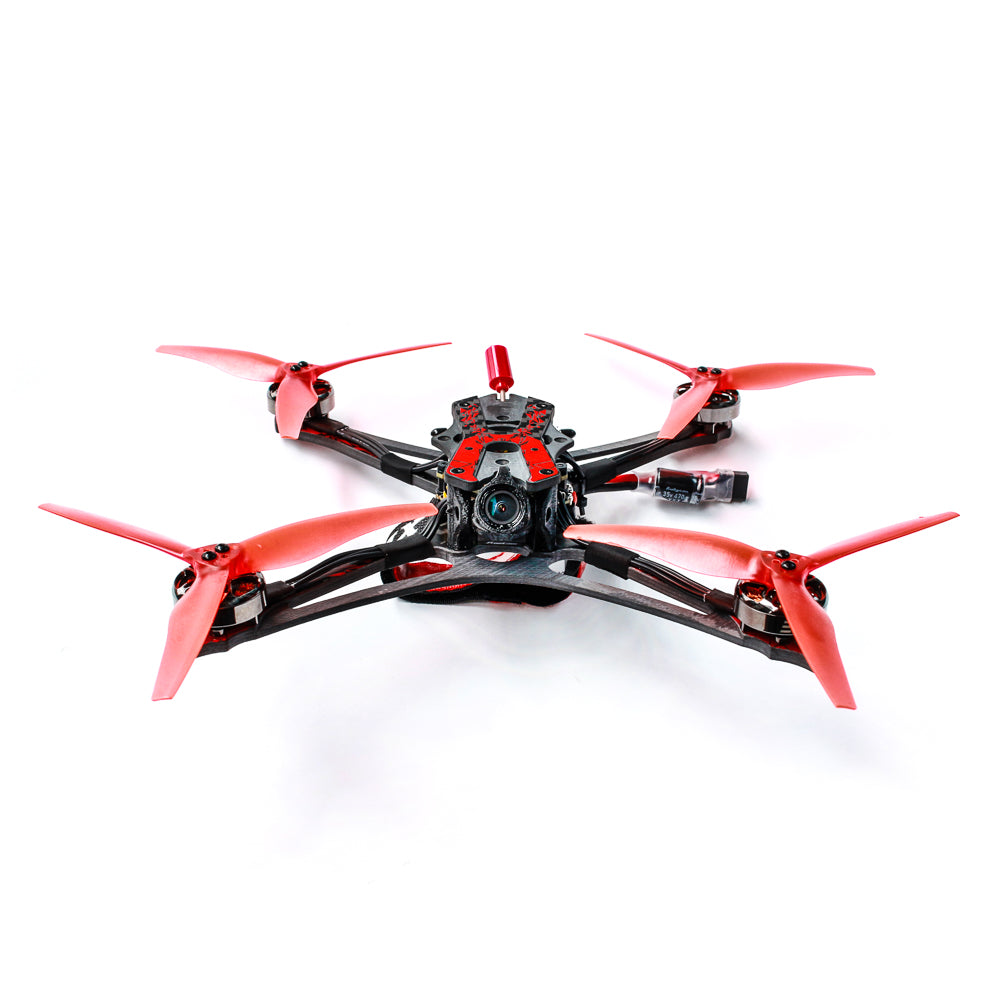

EMAX Hawk Apex 5
At 167 g dry the Hawk Apex 5 is 270-317 g ready to fly on the 6 matching 6S packs listed below (720-930 mAh): the pack is 38-47% of all-up weight.
| Class | racing (ultralight) |
|---|---|
| Weight (no battery) | 167 g |
| Prop size | 5 " |
| Motors | EMAX ECO II 2004 1600KV (6S) / 3000KV 3.5in variant |
| VTX system | HDZero |
| Camera | Runcam Nano HDZero |
Full motor specs: EMAX ECO II 2004
What battery does the Hawk Apex 5 use?
| Cells | 6S |
|---|---|
| Capacity | 850 mAh |
| Recommended range | 650-1100 (4S/6S variants) mAh |
| Connector | XT30 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 167 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB Gaoneng Square Type 850mAh 6S | 850 | 80C | 150.0 g | 317 g | $1.72 |
| GNB Gaoneng 850mAh 6S | 850 | 120C | 130.0 g | 297 g | $1.78 |
| Tattu R-Line Version 5.0 850mAh 6S | 850 | 150C | 145.0 g | 312 g | $2.23 |
| GNB Gaoneng 930mAh 6S | 930 | 120C | 148.0 g | 315 g | $1.94 |
| Lumenier N2O Feather-Lite XT-30 750mAh 6S | 750 | 100C | 135.0 g | 302 g | $2.43 |
| GNB RDQ Series 720mAh 6S | 720 | 100C | 103.0 g | 270 g | $0.59 |
Hawk Apex 5 flight time
The Hawk Apex 5 flies ≈ 3.5-4.5 min on the 4 pack capacities listed above at our 10 A cruise-current estimate, with 80% of a pack used: 720 mAh ≈ 3.5 min, 750 mAh ≈ 3.6 min, 850 mAh ≈ 4.1 min, 930 mAh ≈ 4.5 min.
Where this data comes from
HDZero racing platform; 3.5in variant exists. 4S version uses XT30 per EMAX.
