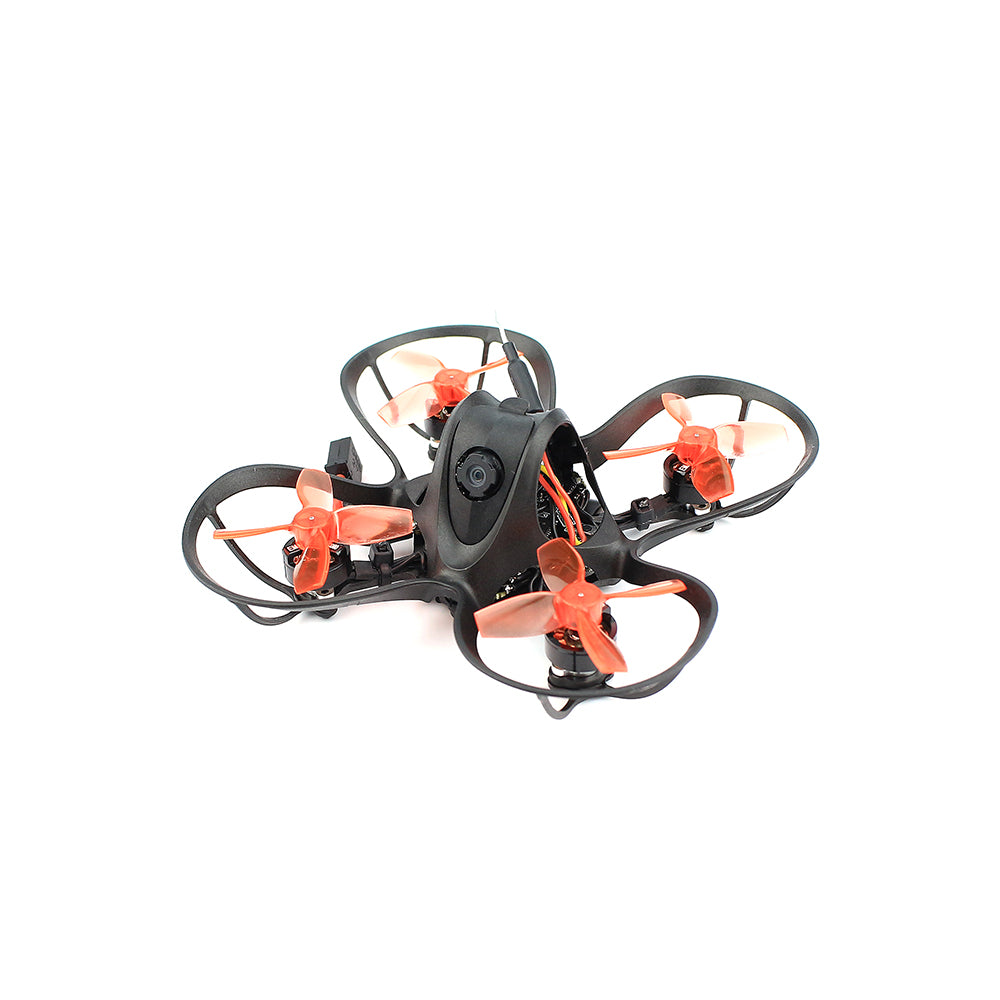

EMAX Nanohawk
At 20 g dry the Nanohawk is 27.5-28.7 g ready to fly on the 3 matching 1S packs listed below (270-300 mAh): the pack is 27-30% of all-up weight.
| Class | tiny whoop (guarded) |
|---|---|
| Wheelbase | 65 mm |
| Weight (no battery) | 20 g |
| Prop size | 1.2 " |
| Prop mount | 1.0mm shaft |
| Motors | EMAX TH0802 II 19000KV |
| VTX system | analog (RunCam Nano 3) |
What battery does the Nanohawk use?
| Cells | 1S |
|---|---|
| Capacity | 300 mAh |
| Connector | GNB27 |
| Chemistry | LiHV (60C) |
Matching packs from our database
All-up weight is this quad's 20 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| NewBeeDrone Nitro Nectar HV NX69 300mAh 1S | 300 | 80C | 8.4 g | 28.4 g | $3.51 |
| EMAX EM2.0 300mAh 1S | 300 | 75C | 8.7 g | 28.7 g | $5.85 |
| EMAX EM2.0 270mAh 1S | 270 | 75C | 7.5 g | 27.5 g | $6.5 |
Nanohawk flight time
The Nanohawk flies ≈ 4.3-4.8 min on the 2 pack capacities listed above at our 3 A cruise-current estimate, with 80% of a pack used: 270 mAh ≈ 4.3 min, 300 mAh ≈ 4.8 min.
Where this data comes from
65mm wheelbase, Avia 31mm props, prop guards instead of ducts.
