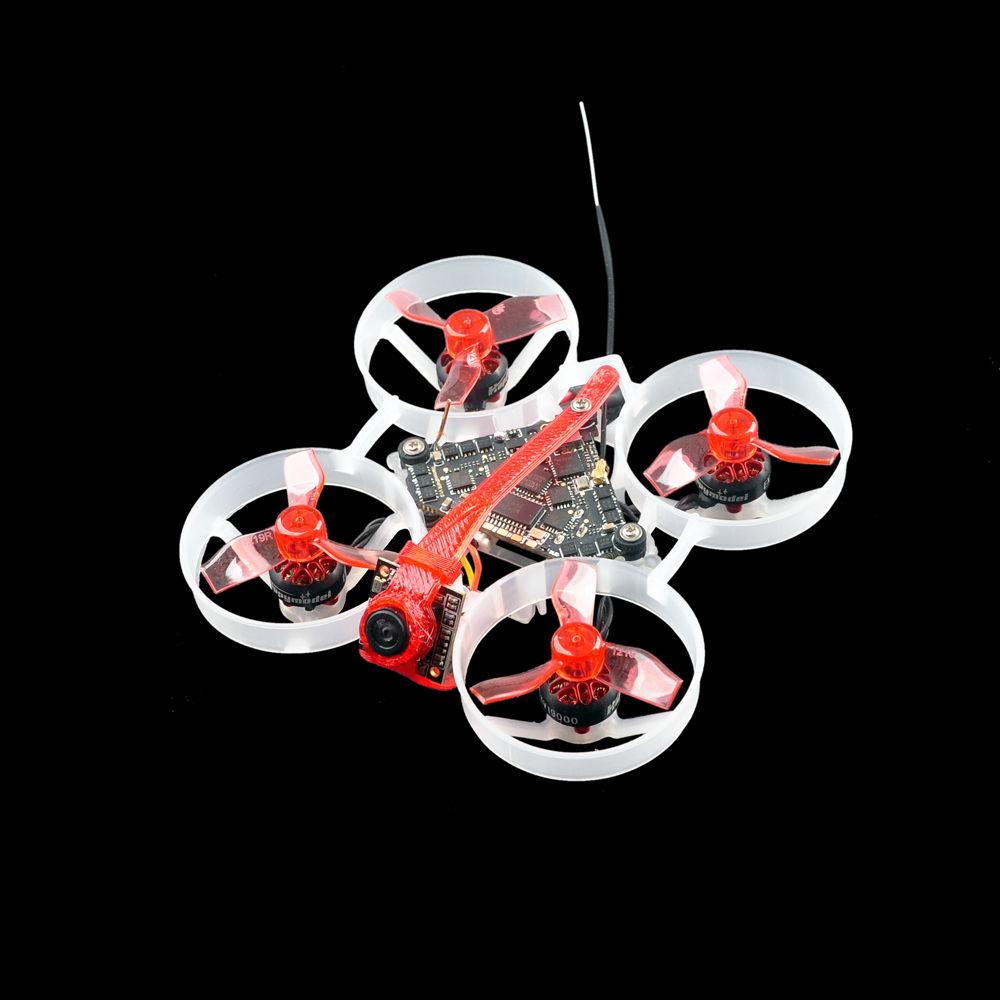

Happymodel Moblite6
At 18.5 g dry the Moblite6 is 25.2-27.2 g ready to fly on the 6 matching 1S packs listed below (270-300 mAh): the pack is 27-32% of all-up weight. Happymodel publishes 26 g all-up with its own pack.
| Class | tiny whoop (ultralight) |
|---|---|
| Wheelbase | 65 mm |
| Weight (no battery) | 18.5 g |
| Typical AUW | 26 g |
| Prop size | 1.2 " |
| Prop mount | 1.0mm shaft |
| Motors | Happymodel SE0802 19000KV |
| VTX system | analog 25-200mW |
What battery does the Moblite6 use?
| Cells | 1S |
|---|---|
| Capacity | 300 mAh |
| Connector | PH2.0 |
| Chemistry | LiHV (30C) |
Matching packs from our database
All-up weight is this quad's 18.5 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB Gaoneng Cabled 300mAh 1S | 300 | 80C | 8.5 g | 27 g | $3.06 |
| NewBeeDrone Nitro Nectar HV NX69 300mAh 1S | 300 | 80C | 8.4 g | 26.9 g | $3.51 |
| GNB Gaoneng 300mAh 1S | 300 | 80C | 8.5 g | 27 g | $4.82 |
| RDQ RDQ Series 300mAh 1S | 300 | 60C | 6.7 g | 25.2 g | $4.82 |
| EMAX EM2.0 300mAh 1S | 300 | 75C | 8.7 g | 27.2 g | $5.85 |
| EMAX EM2.0 270mAh 1S | 270 | 75C | 7.5 g | 26 g | $6.5 |
Moblite6 flight time
The Moblite6 flies ≈ 4.3-4.8 min on the 2 pack capacities listed above at our 3 A cruise-current estimate, with 80% of a pack used: 270 mAh ≈ 4.3 min, 300 mAh ≈ 4.8 min.
Where this data comes from
Gemfan 1219 31mm props, RunCam Nano 3.
