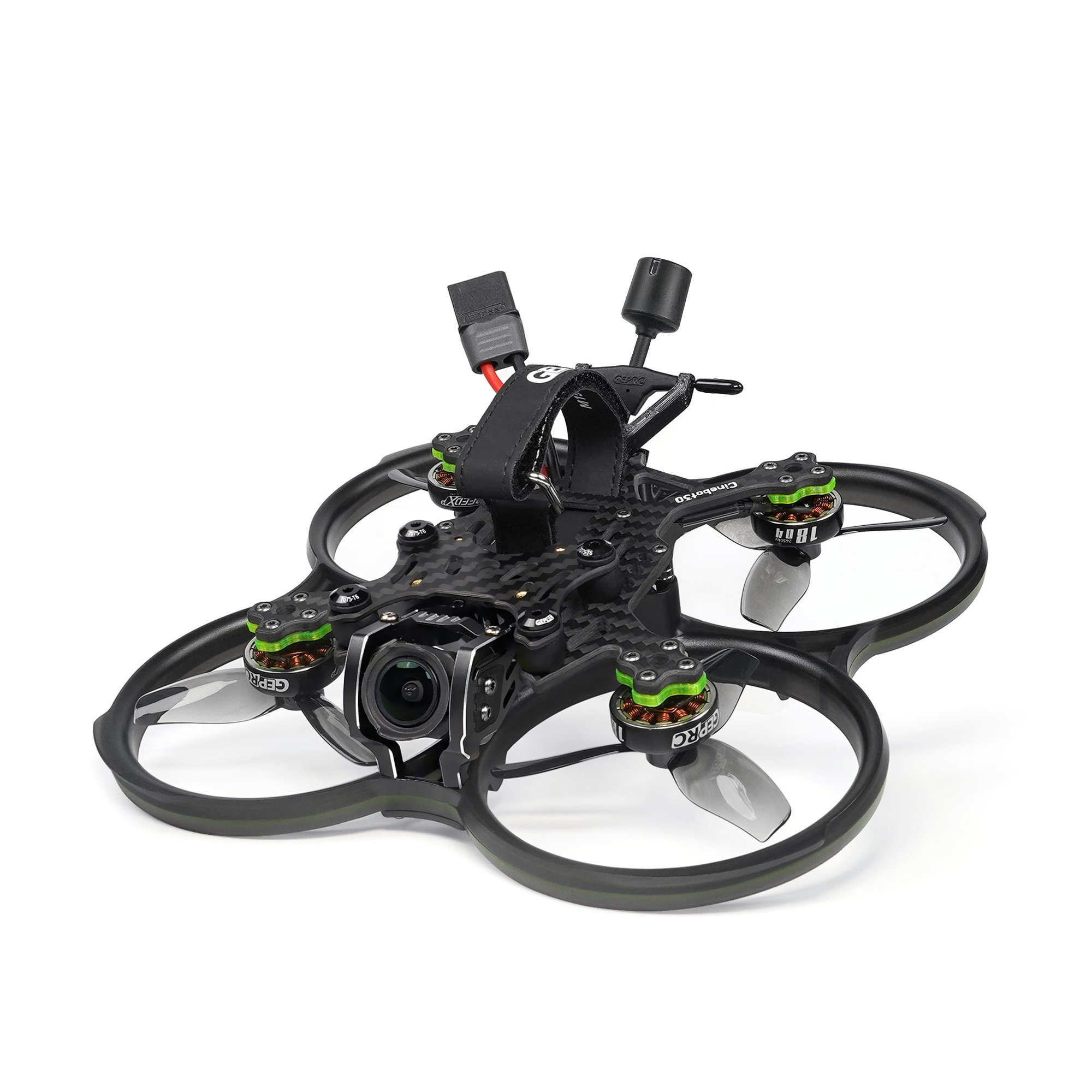

GEPRC Cinebot30
At 234.7 g dry the Cinebot30 is 407.7-445.7 g ready to fly on the 6 matching 6S packs listed below (1050-1100 mAh): the pack is 42-47% of all-up weight.
| Class | cinewhoop |
|---|---|
| Wheelbase | 127 mm |
| Weight (no battery) | 234.7 g |
| Prop size | 3 " |
| Prop mount | T-mount |
| Motors | GEPRC SPEEDX2 1804 2450KV (6S) / 3450KV (4S) |
| VTX system | DJI O3 |
| Camera | DJI O3 |
| Flight controller | GEP-F722-45A AIO V2 |
| Receiver options | PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G |
| Manufacturer flight time | 5.5-10.5 min |
What battery does the Cinebot30 use?
| Cells | 6S |
|---|---|
| Capacity | 1100 mAh |
| Recommended range | 850-1100 (6S) / 1100-1300 (4S) mAh |
| Connector | XT60H-M |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 234.7 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| CNHL Black Series V2 1100mAh 6S | 1100 | 130C | 211.0 g | 445.7 g | $1.35 |
| GNB Gaoneng 1100mAh 6S | 1100 | 120C | 173.0 g | 407.7 g | $1.59 |
| Auline EX 1050mAh 6S | 1050 | 120C | 193.6 g | 428.3 g | $1.87 |
| Tattu R-Line Version 4.0 1050mAh 6S | 1050 | 130C | 180.0 g | 414.7 g | $1.97 |
| Tattu R-Line Version 5.0 1050mAh 6S | 1050 | 150C | 186.0 g | 420.7 g | $2.04 |
| CNHL Ultra Black Series 1050mAh 6S | 1050 | 150C | 180.0 g | 414.7 g | $2.32 |
Cinebot30 flight time
The Cinebot30 flies ≈ 5.0-5.3 min on the 2 pack capacities listed above at our 10 A cruise-current estimate, with 80% of a pack used: 1050 mAh ≈ 5.0 min, 1100 mAh ≈ 5.3 min. GEPRC publishes 5.5-10.5 min.
Where this data comes from
O3 version (analog: 209.2g). Props HQ T76 3-blade.
