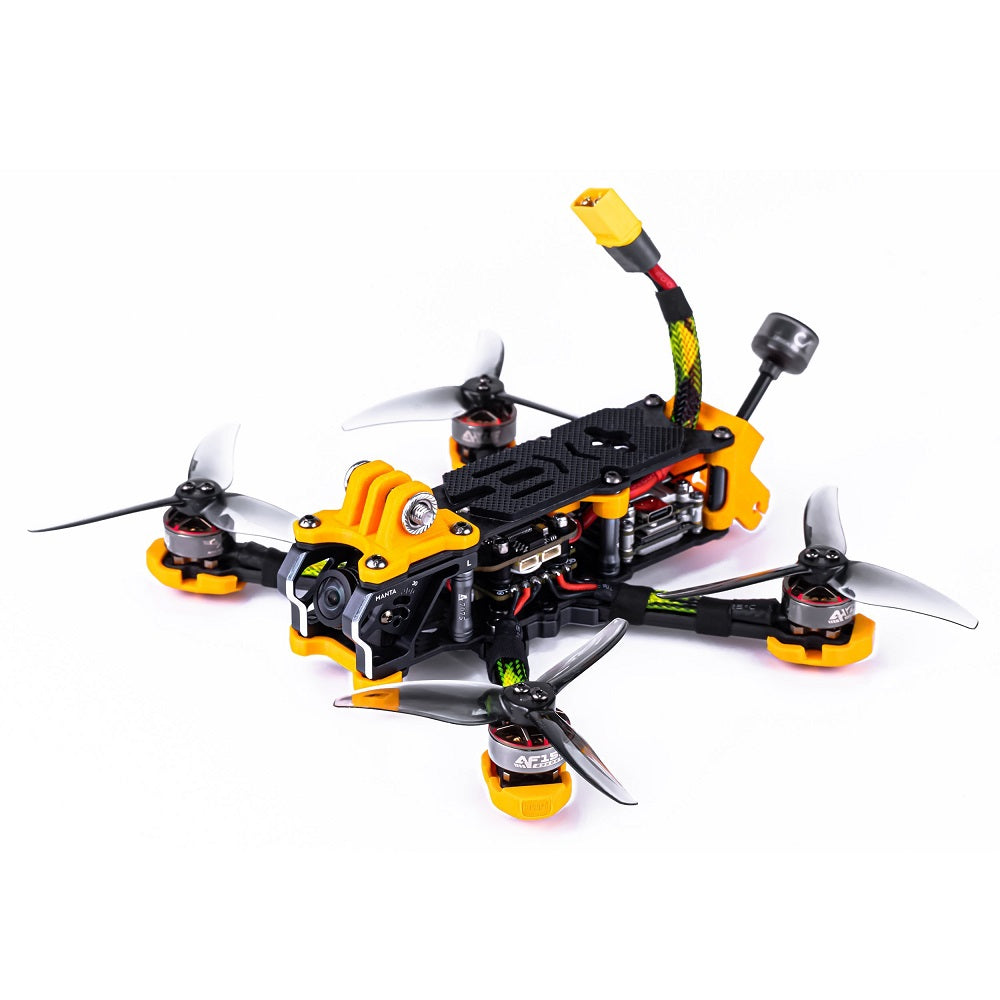

Axisflying Manta 3.5
At 233 g dry the Manta 3.5 is 368-398 g ready to fly on the 6 matching 4S packs listed below (1300 mAh): the pack is 37-41% of all-up weight.
| Class | freestyle/cinematic (3.5in) |
|---|---|
| Wheelbase | 162 mm |
| Weight (no battery) | 233 g |
| Prop size | 3.5 " |
| Prop mount | T-mount |
| Motors | Axisflying AF155 (2204.5) |
| VTX system | RunCam Link (DJI HD); O3 variants available |
| Camera | RunCam MIPI |
What battery does the Manta 3.5 use?
| Cells | 4S |
|---|---|
| Capacity | 1300 mAh |
| Recommended range | 1300-1500 mAh |
| Connector | XT60 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 233 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB RDQ Series 1300mAh 4S | 1300 | 100C | 164.0 g | 397 g | $0.5 |
| CNHL Black Series V2.0 1300mAh 4S | 1300 | 130C | 151.0 g | 384 g | $1.27 |
| Tattu FunFly 1300mAh 4S | 1300 | 100C | 149.0 g | 382 g | $1.4 |
| Dogcom 1300mAh 4S | 1300 | 150C | 157.0 g | 390 g | $1.45 |
| Lumenier 1300mAh 4S | 1300 | 35C | 135.0 g | 368 g | $1.48 |
| XILO Basher 1300mAh 4S | 1300 | 100C | 165.0 g | 398 g | $1.64 |
Manta 3.5 flight time
The Manta 3.5 flies ≈ 5.7 min on the 1300 mAh pack listed above at our 11 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
233g for BNF with RunCam Link + MIPI cam. Gemfan 3520 tri-blade, wheelbase 162mm. Connector not stated by Axisflying - XT60 is class-standard.
