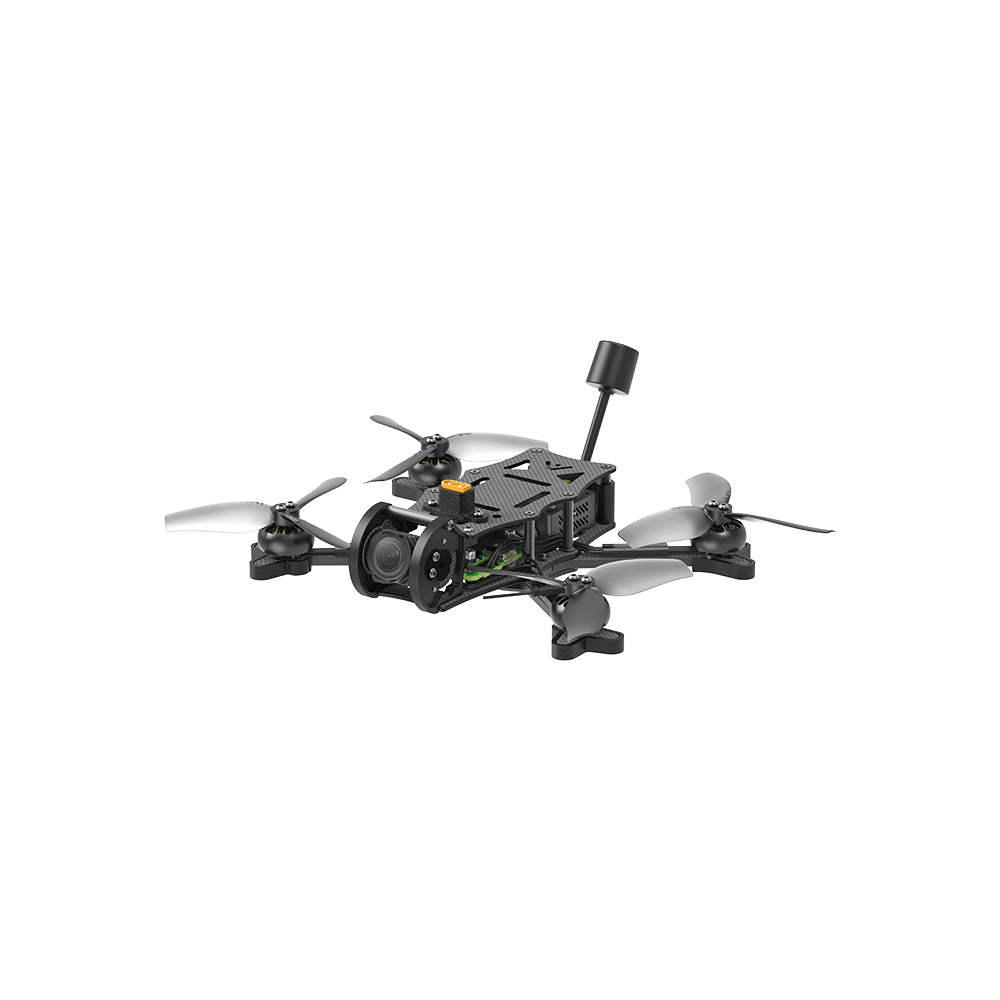

iFlight AOS 3.5 V5
At 197 g dry the AOS 3.5 V5 is 267.5-307 g ready to fly on the 6 matching 4S packs listed below (850 mAh): the pack is 26-36% of all-up weight.
| Class | micro freestyle (sub-250) |
|---|---|
| Wheelbase | 162 mm |
| Weight (no battery) | 197 g |
| Prop size | 3.5 " |
| Prop mount | T-mount |
| Motors | iFlight XING 1504 3100KV |
| VTX system | DJI O3 (O4 Pro variant) |
| Manufacturer flight time | 12 hover (4S 850) min |
What battery does the AOS 3.5 V5 use?
| Cells | 4S |
|---|---|
| Capacity | 850 mAh |
| Connector | XT30 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 197 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB RDQ Series 850mAh 4S | 850 | 60C | 70.5 g | 267.5 g | $0.49 |
| Tattu 850mAh 4S | 850 | 75C | 103.0 g | 300 g | $1.55 |
| GNB Gaoneng 850mAh 4S | 850 | 60C | 73.0 g | 270 g | $1.7 |
| GNB Gaoneng Square Type 850mAh 4S | 850 | 80C | 102.0 g | 299 g | $1.75 |
| RDQ RDQ Series 850mAh 4S | 850 | 60C | 70.5 g | 267.5 g | $1.82 |
| CNHL MiniStar 850mAh 4S | 850 | 70C | 110.0 g | 307 g | $1.91 |
AOS 3.5 V5 flight time
The AOS 3.5 V5 flies ≈ 5.8 min on the 850 mAh pack listed above at our 7 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
Chris Rosser AOS aero design, 162mm. HQ 3.5x2.5x3 props.
