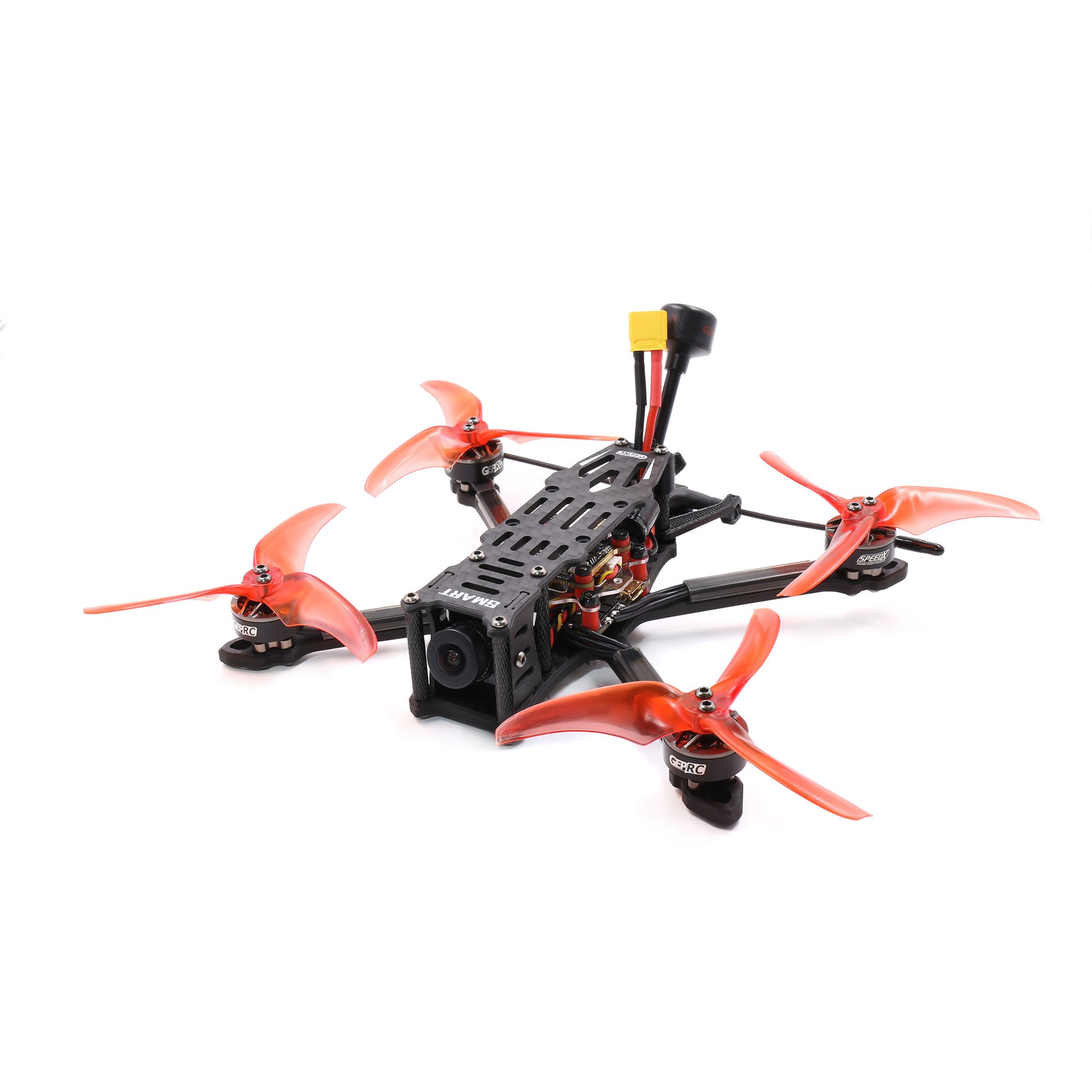

GEPRC Smart 35
At 142.1 g dry the Smart 35 is 212.6-252.1 g ready to fly on the 6 matching 4S packs listed below (850 mAh): the pack is 33-44% of all-up weight.
| Class | micro freestyle (sub-250) |
|---|---|
| Wheelbase | 155 mm |
| Weight (no battery) | 142.1 g |
| Prop size | 3.5 " |
| Motors | GEPRC GR1404 3850KV |
| VTX system | Caddx Polar Vista HD (Nano/analog variants) |
| Camera | Caddx Ratel V2 |
| Flight controller | GEP-F411-35A AIO |
| Receiver options | PNP / Frsky RXSR / TBS Nano RX |
What battery does the Smart 35 use?
| Cells | 4S |
|---|---|
| Capacity | 850 mAh |
| Recommended range | 850-1300 mAh |
| Connector | XT30 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 142.1 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB RDQ Series 850mAh 4S | 850 | 60C | 70.5 g | 212.6 g | $0.49 |
| Tattu 850mAh 4S | 850 | 75C | 103.0 g | 245.1 g | $1.55 |
| GNB Gaoneng 850mAh 4S | 850 | 60C | 73.0 g | 215.1 g | $1.7 |
| GNB Gaoneng Square Type 850mAh 4S | 850 | 80C | 102.0 g | 244.1 g | $1.75 |
| RDQ RDQ Series 850mAh 4S | 850 | 60C | 70.5 g | 212.6 g | $1.82 |
| CNHL MiniStar 850mAh 4S | 850 | 70C | 110.0 g | 252.1 g | $1.91 |
Smart 35 flight time
The Smart 35 flies ≈ 6.8 min on the 850 mAh pack listed above at our 6 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
Polar HD version 142.1g (Nano 137.6g, analog 127.4g). EMAX 3.5x2.8x3 props, 155mm.
