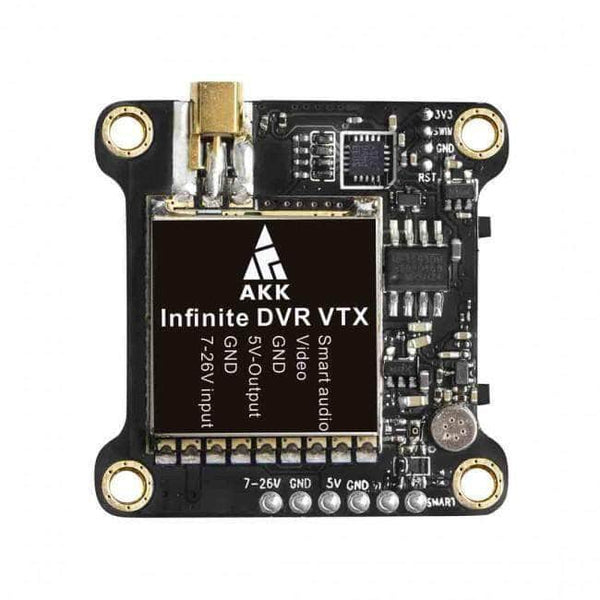

AKK Infinite DVR 30x30 25-1000mW 5.8GHz
Listed as: AKK Infinite DVR 30x30 25-1000mW 5.8GHz - MMCX
Of the 81 other 5.8 GHz analog video transmitters in our database, 45 have a lower maximum power than the Infinite DVR 30x30 25-1000mW 5.8GHz (1000 mW, 30 dBm), 6 the same and 30 a higher one; the class median is 800 mW. The Infinite DVR 30x30 25-1000mW 5.8GHz steps through 25 / 200 / 600 / 1000 mW, which is 14 / 23 / 28 / 30 dBm: the top level is 16 dB above the lowest, about 6.3x the free-space range on the same antennas.
| System | analog |
|---|---|
| Max power | 1000 mW |
| Power levels | 25 / 200 / 600 / 1000 mW |
| Frequency range | 5.8 GHz |
| Mounting | 30x30mm |
| Channels | 37 |
| Antenna connector | MMCX |
| Weight | 8.8 g |
| Price (approx.) | 28.99 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
power_levels_mw is the power labels of the 'Infinite DVR VTX Table' block in AKK's own VTX table document, read 2026-10-17; that block also lists 37 channels, as this page does. The table itself is not offered as a Betaflight table here: its '1000' label is four characters and Betaflight takes at most three, and the maker's table is published only as the maker wrote it.
