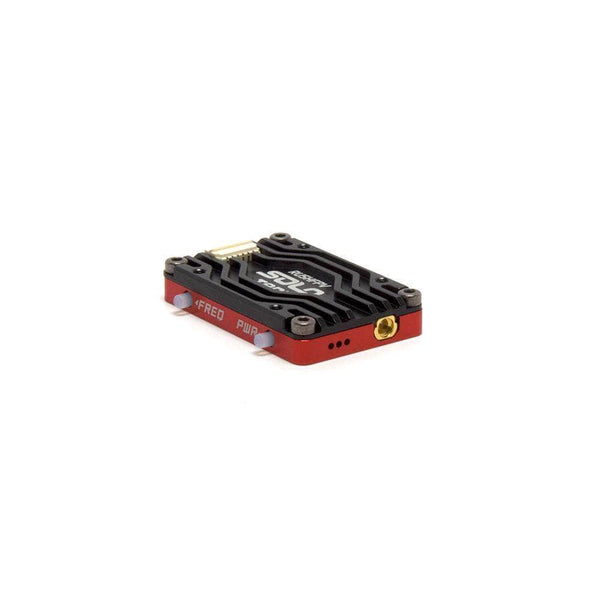

RUSHFPV Tank Solo 25-1000mW+ 5.8GHz
Listed as: RUSHFPV Tank Solo 25-1000mW+ 5.8GHz - MMCX
Of the 81 other 5.8 GHz analog video transmitters in our database, 45 have a lower maximum power than the Tank Solo 25-1000mW+ 5.8GHz (1000 mW, 30 dBm), 6 the same and 30 a higher one; the class median is 800 mW.
| System | analog |
|---|---|
| Max power | 1000 mW |
| Power levels | 25 / 400 / 800 / MAX mW |
| Frequency range | 5.8 GHz |
| Input voltage | 7-36V DC |
| Channels | 48 |
| Antenna connector | MMCX |
| Weight | 12.0 g |
| Price (approx.) | 71.99 USD |
RUSHFPV Tank Solo 25-1000mW+ 5.8GHz VTX table for Betaflight
The band and channel frequencies and power levels as RUSHFPV publishes them for SmartAudio 2.1 control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BAND_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BAND_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F AIRWAVE | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L LOWRACE | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 14), 400 (value 26), 800 (value 29), MAX (value 32).
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 AIRWAVE F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable powerlevels 4
vtxtable powervalues 14 26 29 32
vtxtable powerlabels 25 400 800 MAX
saveSource: https://drive.google.com/file/d/1o_hinzxBtDsDjZvIJy4pT753WBiSVV-J/view — Copied from the maker's Betaflight file RUSH_TANK_SOLO_SA2.1_48CH.json in the RushFPV VTX Table Drive folder linked from rushfpv.net's Download Center. The 48CH file prints B5 as 5999 inside a band-B ladder reading 5790, 5809, 5828; the same model's 37CH file prints 5809 there, which is what is stored. Values are dBm as the maker's SmartAudio 2.1 file prints them (14 = 25 mW); labels are the file's. RushFPV publishes two files per model: this one and a 37-channel twin (RUSH_TANK_SOLO_SA2.1_37CH.json). Ladder 25/400/800/MAX matches the spec block's PIT/25/400/800/MAX; the file's MAX is 32 dBm.. Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
RushFPV's own spec block: 7-36 V DC in, 5 V/1 A (600 mA) out, 48 channels, power PIT/25/400/800/MAX mW, 37 x 24 x 6.7 mm, 12 g without cable - which confirms the 12 g and the 48 channels this page already carried. The top step is printed as 'MAX' with no figure, so power_levels records it as printed and max_power_mw keeps the 1000 mW the retail listing states.
