AKK Race Ranger 5.8G 1.6W VTX

Where this data comes from

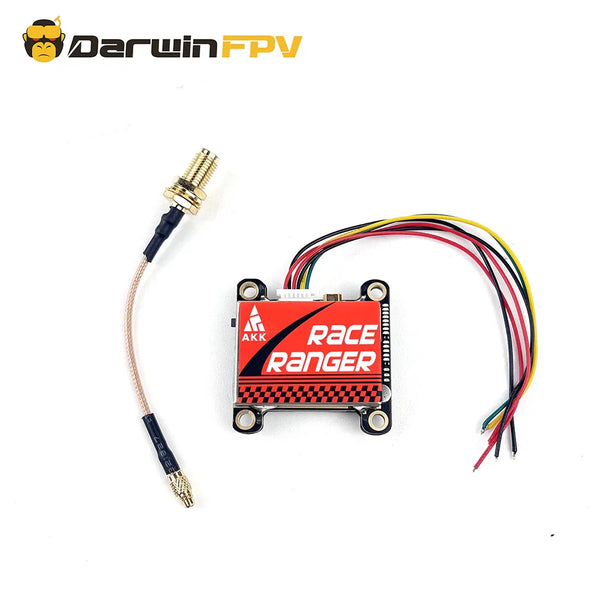

Read 2026-09-24 off DarwinFPV's shop, and it is an AKK radio: the board is printed 'AKK RACE RANGER' with AKK's logo and it ships in an AKK box, both read at full resolution in the brand's own photographs, so the brand column holds AKK and not the shop that sells it. This matters because akktek.com has been unreadable since the thirteenth burst - every path answers a Cloudflare interactive challenge - and this is the first AKK part in this catalogue whose figures come from a stated spec block rather than from the US retail scrape's title. The block, published in full on the listing: 'Input voltage: 7V-28V', 'Output power: 200mW 400mW 800mW 1600mW', '(International version)', 'Antenna connector: MMCX', 'Cable connector: JST.6pin', 'Dimensions: 36(W) x 36(D)mm, 30.5 x 30.5mm(hole)', 'Power supply: 5V camera@under 500mA max', 'Weigh: 9.6g(excluding antenna)', SmartAudio with a one-button setup and a microphone. mount_mm takes the hole spacing and not the 36x36 body. weight_g is deliberately empty although the block states 9.6 g: the brand's own scale photograph of this module with its cable reads 18.0 g, and a finned aluminium case this size is not a 9.6 g part with 8 g of cable, so the two figures are for two configurations the page does not distinguish - the seventh burst's kit-weight rule. It is the sixteenth-burst question, which of a kit's weights a column should hold, arriving on a part whose two figures differ by a factor of two.

• darwinfpv.com/products/darwinfpv-akk-5-8g-1600mw-1-6w-vtx
