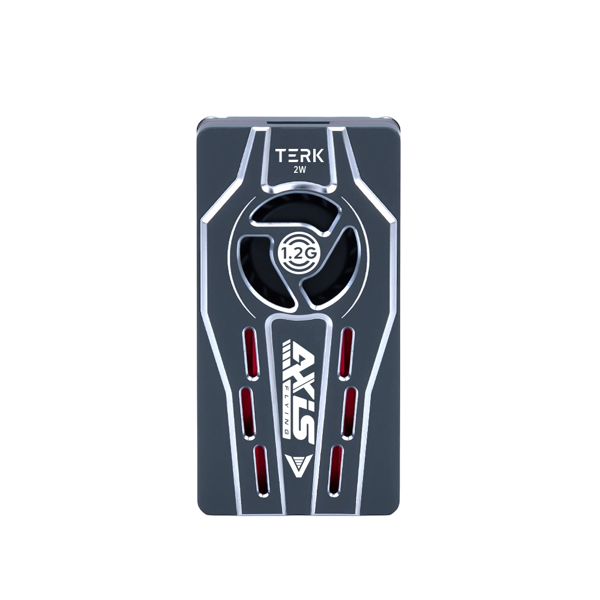

Axisflying TERK 1.2G 2W VTX

Where this data comes from

Read 2026-09-24 off Axisflying's own site, the fourteenth VTX manufacturer catalogue read beside the US retail scrape and the third brand this catalogue carried no transmitter of at all. www.axisflying.com is a UEEShop store with no products.json; its sitemap is named after the domain and is linked only from robots.txt. Its whole transmitter line is /collections/vtx. The brand's own Download Center (/download/vtx) serves six VTX manuals through a public POST (do_action=action.getDownloadCheck), all one-page image-only PDFs rendered here at 6x with Quartz/CoreGraphics. This page carries a labelled Specifications table in the page HTML (Model TERK 1.2G 2W VTX, Brand Axisflying, Frequency Band 1.2GHz (1200-1480MHz), Channels 8CH, Transmit Power PIT/25mW/400mW/600mW/1W/2W, Input Voltage 7-28V (2-6S LiPo), Antenna Port MMCX, Mounting Standard 20x20mm, Dimensions 53.79x27.8x13.5mm, Weight ~27.5g excluding antenna), and its description images repeat every figure in the brand's own Parameters table read at full resolution: RF output PIT,25mW,400mW,600mW,1W,2W; Input power 7-28VDC; Current consumption 600mA@12VDC@2W; MMCX; RF impedance 50 ohm; video 75 ohm CVBS 0.8~1.2Vp-p NTSC/PAL; Weight 27.5g. A dimension drawing in the same set annotates 53.79mm x 27.8mm x 13.5mm with a 20mm x 20mm hole pattern, which is why the body dimensions this board shares with the 5.8G TERKs are a shell family and not a copied line. The eight channel frequencies are printed out: 1200/1240/1280/1320/1360/1400/1440/1480 MHz. One caveat: the wiring-harness illustration in the same set photographs a TERK case silkscreened '7-36V DC-IN', which is the 5.8G models' range; both of this model's own statements say 7-28V and that is what the field holds.

• www.axisflying.com/products/12g-2w-analog-vtx
