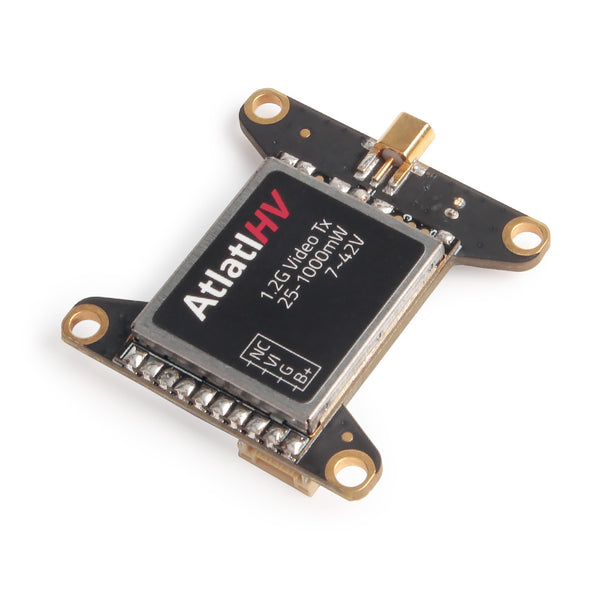

Holybro Atlatl HV V2 1.2GHz 1W

Where this data comes from

Read 2026-09-25 off Holybro's own shop, the sixteenth VTX manufacturer catalogue read beside the US retail scrape and the fourth brand this catalogue carried no transmitter of at all (it already carries Holybro stacks, one of which ships this very module). holybro.com is Shopify: products.json?limit=250 is the whole catalogue in one request (178 SKUs, page=2 empty), product_type is the brand's own class label and 'VTX & OSD' holds five parts - these four transmitters and a Micro OSD V2. The labelled spec block is in body_html; nothing sits in the page HTML that is not in it, and docs.holybro.com (323 pages, all autopilot) documents no Atlatl. SKU 13035. The labelled block prints 'Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 1000 mW', Audio 6.5 MHz Mono (6.0 MHz optional), Antenna Connector MMCX, Input Voltage 2-8S LiPo, Dimensions 35x35x9mm (including connector), 'Mounting Holes: Standard 30.5mm square to center of holes' and 'Weight: 9.3g (VTX Only)'; the features list repeats 'Variable transmit power: Pit/25/200/1000mw' and 'up to 9 frequency Channels'. power_levels_mw drops the 0.5 mW pit step, the way the rest of this column does. frequency_range is the block's own DIP-switch channel table, CH1 1080 / CH2 1120 / CH3 1160 / CH4 1200 / CH5 1240 / CH6 1280 / CH7 1320 / CH8 1380 / CH9 1258 MHz - nine channels, edges 1080 and 1380. input_voltage is the RF shield's own label, read at full resolution: 'AtlatlHV / 1.2G Video Tx / 25-1000mW / 7~42V'. The block's '2-8S LiPo' is a cell count and not a voltage, and the shield's power line confirms the 1000 mW. weight_g is deliberately EMPTY: the block says 9.3 g (VTX only) and the brand's own scale photograph of the bare board says 9.4 g, one manufacturer statement against one, which publishes neither. (9.3 g is also the figure the 5.8G Atlatl HV V2's block prints, so it may be that block's line rather than this board's.) Its sibling the Atlatl HV micro has the same 0.1 g disagreement and resolves the other way, because there a manual agrees with the page. This product has no manual on the shop. A dimension drawing in the images annotates 38 mm x 35 mm where the block says 35x35x9mm; the hole pattern is stated once and is what the field holds. Unavailable on 2026-09-25.

• holybro.com/products/atlatl-hv-v2-1-2ghz-vtx
