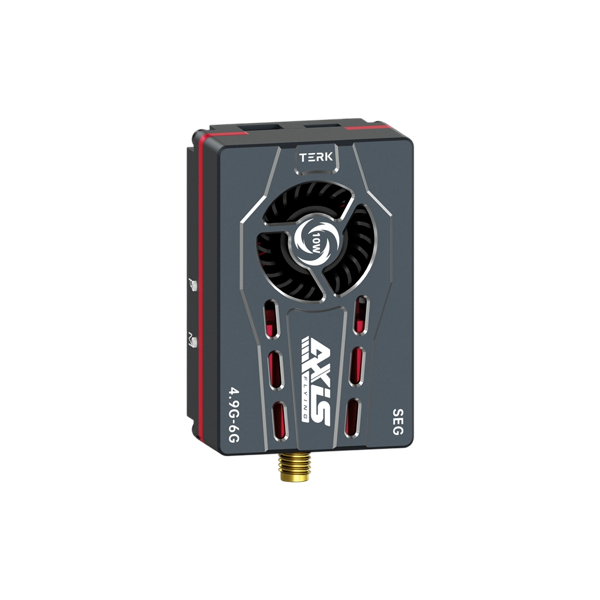

Axisflying TERK 4.9G-6G SEG 10W VTX
| System | analog |
|---|---|
| Max power | 10000 mW |
| Frequency range | 4900-6000 MHz |
| Input voltage | 7-28V (3-6S) |
| Mounting | 20x20mm |
| Channels | 80 |
| Antenna connector | SMA |
| Price (approx.) | 100.0 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off Axisflying's own site, the fourteenth VTX manufacturer catalogue read beside the US retail scrape and the third brand this catalogue carried no transmitter of at all. www.axisflying.com is a UEEShop store with no products.json; its sitemap is named after the domain and is linked only from robots.txt. Its whole transmitter line is /collections/vtx. The brand's own Download Center (/download/vtx) serves six VTX manuals through a public POST (do_action=action.getDownloadCheck), all one-page image-only PDFs rendered here at 6x with Quartz/CoreGraphics. A wideband 4.9-6.0 GHz module of the class this catalogue carries deliberately (see CLAUDE.md) - the US retail scrape sells none. Page and images agree that it is 80 channels over 4900-6000MHz at up to 10W on 7-28V through an SMA port, and the brand's own dimension drawing gives the 20mm x 20mm hole pattern the page never states. They disagree on three fields and two of them are left empty here. Power steps: the page says '1W/3W/5W/7W/10W Adjustable', the brand's Product Specifications image says 'PIT / 25mW / 200mW / 5W / 10W', and the digital-display legend on the same sheet says power cycles through levels 0-4, which fits either list. Weight: 'About 150g (With Fan)' on the page against '76g+-3' in the image. Dimensions: 68x36x15mm on the page against 60.5x39x25mm in the image, whose drawing annotates 60.5mm and 39mm on the face and 25mm on the side - so the image is the self-consistent document and the page's three figures are the odd ones, but a second statement is a second statement and these fields stay empty. The brand names this part three ways on one page: 'TERK 10W VTX' in the spec table, 'TERK 6G 10W SEG VTX' in the page's structured data and '4.9G-6G SEG 10W VTX ANALOG' in the title; the model here keeps the frequency range the buyer searches for.
