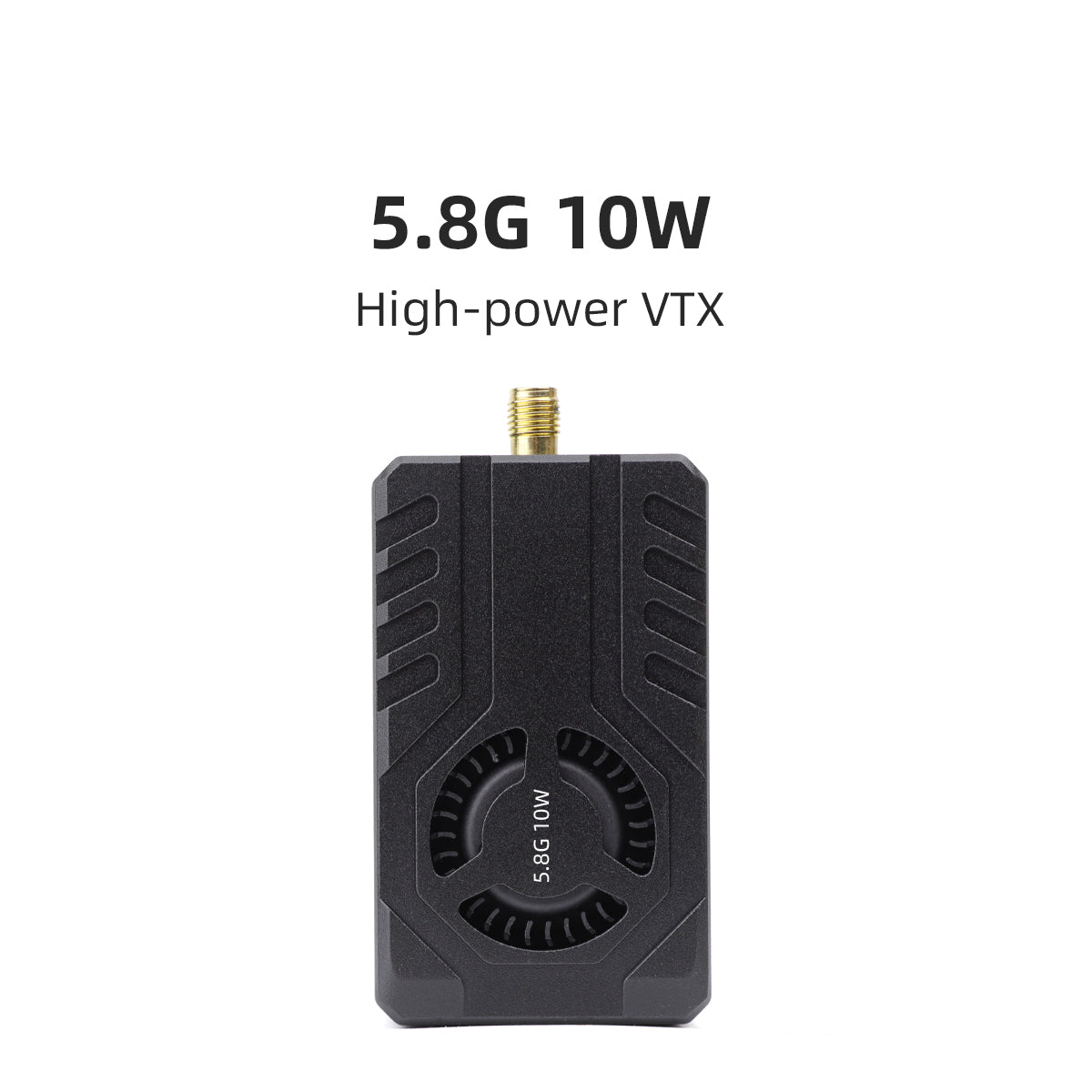

HGLRC 4.9-6GHz 10W VTX

Where this data comes from

HGLRC's own labelled block: 'Input Voltage: DC 7-36V, Operating Frequency: 4900~6000MHz, Available Channels: 80-CH, Maximum Output Power: 10W, Dimensions (L*W*H): 60.5mm x 36mm x 25mm, Mounting Hole Pattern: 20 x 20mm, M2 holes, Output Power Levels: PIT / 25mW / 200mW / 5W / 10W, Signal-to-Noise Ratio S/N (Fo+-3MHz): >70dBc, Antenna Port Impedance: 50 Ohms, Input Signal Format: NTSC or PAL, Operating Temperature: -10C ~ +60C, Weight: 73.2g', and the brand's own Parameters graphic on the same page repeats every row of it. power_levels_mw drops the PIT step, which has no figure. weight_g is the module's own: the dimension drawing prints 'weight: 73.2g' beside 'Total weight: 109.4g' for the boxed set (128x81.6x36.3mm), and the labelled block's Weight row is the 73.2. This is a wideband 4.9-6.0 GHz radio whose case silkscreen, product graphic and packing list all call it '5.8G 10W VTX' while the shop title calls it '4.9-6Ghz 10W High-Power VTX'; the model name here keeps the band the spec block measures, because that is the class this catalogue files it in. Wideband 4.9-6.0 GHz output is the Ukrainian long-range class - most of the span needs a licence or is outside the amateur allocation in the EU and US, so check local rules before transmitting.
