DarwinFPV OMNIS Analog VTX 10W

Where this data comes from

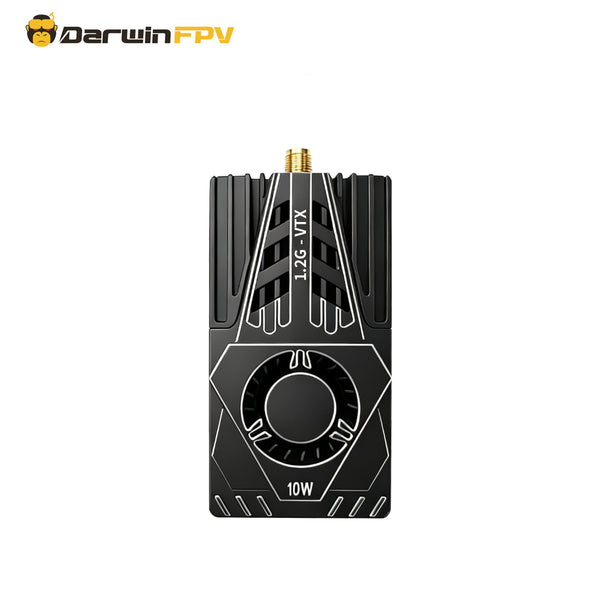

Read 2026-09-24 off DarwinFPV's own shop. The OMNIS is sold as one page with sixty variants - ten frequency options by two power options by three antenna/receiver bundles - so this catalogue splits it by the only variant that changes a required field, the power, and carries the band list in the note instead of in frequency_range. max_power_mw and power_levels_mw are the page's own line: 'Crank it up to 10W peak power ... or dial it down with multi-level power control: PIT / 25mW / 1W / 5W / 10W', which is output power in watts and milliwatts and not an EIRP or dBm figure; the brand prints 10W on the case of every 10 W variant, visible in its product photographs. input_voltage is 'Works directly with 2S-8S LiPo batteries (15-36V DC)', mount_mm is 'Dual mounting holes: 25x25mm and 30.5x30.5mm', antenna_connector is 'Standard SMA connector'. The brand disagrees with itself about how many bands there are: the prose lists nine - 500MHz / 1.2G / 1.5G / 1.8G / 3.3G / 4G / 5.8G / 7.2G / 8G - while the variant selector offers ten, adding 4.5G, and the product photographs show cases printed 1.2G, 1.5G, 1.8G, 3.3G, 4G, 4.5G, 5.8G and 7.2G. Every one of the sixty variants read as unavailable on 2026-09-24. IRC Tramp protocol, CNC aluminium chassis with a fan, dual video input formats. price_usd is the module-only SKU at $129.99; the same variant is $139.99 with an antenna and $234.99 with an antenna and a receiver.

• darwinfpv.com/products/darwinfpv-omnis-analog-vtx-series
