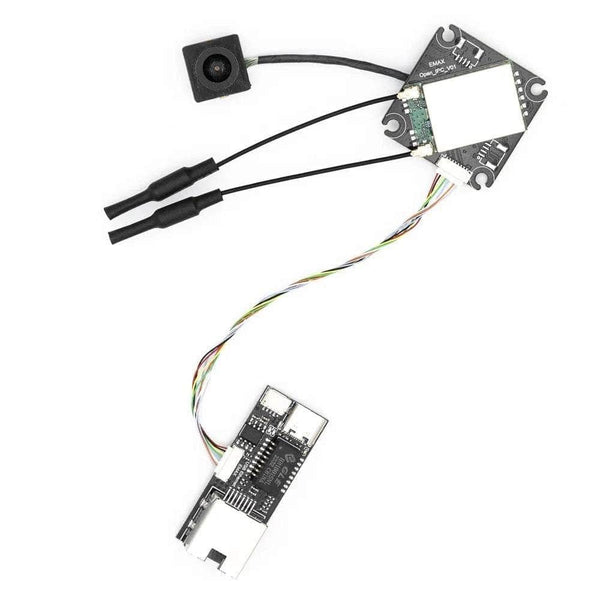

EMAX Wyvern Link Alpha OpenIPC 100mW
Listed as: EMAX Wyvern Link (Alpha) OpenIPC - 100mW
| System | Digital HD (OpenIPC) |
|---|---|
| Max power | 100 mW |
| Input voltage | 5V |
| Mounting | 25.5x25.5mm |
| Weight | 13.76 g |
| Price (approx.) | 89.99 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Cited and extended 2026-09-24 against EMAX's own catalogue, which is the second source for a part this catalogue had only from the retail scrape. EMAX's own Wyvern Link comparison table, published as a content image on the brand's catalogue page for this part (www.emax-usa.com, openipc-detail-dark.html) and read at full resolution. It is a screenshot of a spreadsheet - the cell cursor and a spell-check underline under its 'Openipc' heading are both in the picture - and it has two product columns, headed '100mw' and '800mw', plus a third for the WIFI module. Its rows: Camera sensor imx415; Video specifications 1280x720; Video FPS 120fps; input voltage 100mw 5v in / 800mw 2-6s in; Lens specifications 100mw 14mm / 800mw 19mm; Weight 100mw 13.76g / 800mw 28.85g; Hole spacing 100mw 25.5mm / 800mw 30.5mm / WIFI modular 35.0mm; Aperture 3.0mm throughout; Receiver input xt30 2-6s / type-c 5v in; Receiver Weight 100mw 51.69g / 2000mw 44.5g. mount_mm is that table's 'Hole spacing 100mw 25.5mm', read as the 25.5x25.5mm square those holes describe (these patterns are square by definition). input_voltage is its '100mw 5v in'. The weight_g this page already carried, 13.76 g, is the table's own 100 mW figure, so the retail listing and the manufacturer agree on it. EMAX states no frequency range, channel count or antenna connector for the Wyvern Link line anywhere it publishes: both its store page and its catalogue page are prose, and the only numbers on either are the ones in this image.
