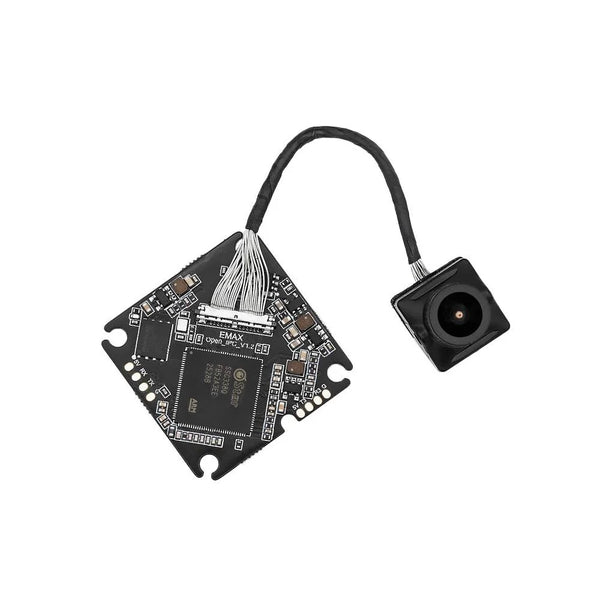

EMAX Wyvern Link OpenIPC
Listed as: EMAX Wyvern Link OpenIPC - 200mW
| System | Digital HD (OpenIPC) |
|---|---|
| Max power | 200 mW |
| Mounting | 25.5x25.5mm |
| Weight | 13.76 g |
| Price (approx.) | 89.99 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Cited 2026-09-24 against EMAX's own catalogue, which confirms the part and its 200 mW output - the brand titles it 'Wyvern Link OpenIPC - 200mW Video Transmitter VTX' and its own description panel calls it 'The Wyvern Link 200mW VTX v2 ... built for everyday FPV flying' - and confirms nothing else. EMAX's own Wyvern Link comparison table, published as a content image on the brand's catalogue page for this part (www.emax-usa.com, openipc-detail-dark.html) and read at full resolution. It is a screenshot of a spreadsheet - the cell cursor and a spell-check underline under its 'Openipc' heading are both in the picture - and it has two product columns, headed '100mw' and '800mw', plus a third for the WIFI module. Its rows: Camera sensor imx415; Video specifications 1280x720; Video FPS 120fps; input voltage 100mw 5v in / 800mw 2-6s in; Lens specifications 100mw 14mm / 800mw 19mm; Weight 100mw 13.76g / 800mw 28.85g; Hole spacing 100mw 25.5mm / 800mw 30.5mm / WIFI modular 35.0mm; Aperture 3.0mm throughout; Receiver input xt30 2-6s / type-c 5v in; Receiver Weight 100mw 51.69g / 2000mw 44.5g. There is no 200 mW column in it. The same image is published unchanged on the 100 mW page, the 800 mW page and this one, so it is shared line artwork rather than a statement about this SKU, and the two figures this page carries from the retail listing - weight_g 13.76 and mount_mm 25.5x25.5mm - are exactly the table's 100 mW figures. They are kept because no manufacturer statement contradicts them and the 200 mW is plainly the small board (EMAX's own copy sells it as fitting drones 'as small as whoops'), but they may be the 100 mW listing's numbers copied across, and neither field is required, so nothing on this page rests on them.
