HDZero Whoop V2 Bundle
Listed as: HDZero Whoop V2 Bundle (Nano V3 )
Of the 10 other 5.8 GHz HDZero video transmitters in our database, none has a lower maximum power than the Whoop V2 Bundle (200 mW, 23 dBm), 7 the same and 3 a higher one; the class median is 200 mW. The Whoop V2 Bundle steps through 25 / 200 mW, which is 14 / 23 dBm: the top level is 9 dB above the lowest, about 2.8x the free-space range on the same antennas.
| System | HDZero |
|---|---|
| Max power | 200 mW |
| Power levels | 25 / 200 mW |
| Frequency range | 5.725-5.850 GHz |
| Band | 5.8 GHz |
| Input voltage | 3-12.6V (1S-3S) |
| Power draw | 5-6 W |
| Mounting | 25.5x25.5mm M2 |
| Channels | 12 |
| Antenna connector | U.FL |
| Weight | 5.4 g |
| Price (approx.) | 119.99 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from

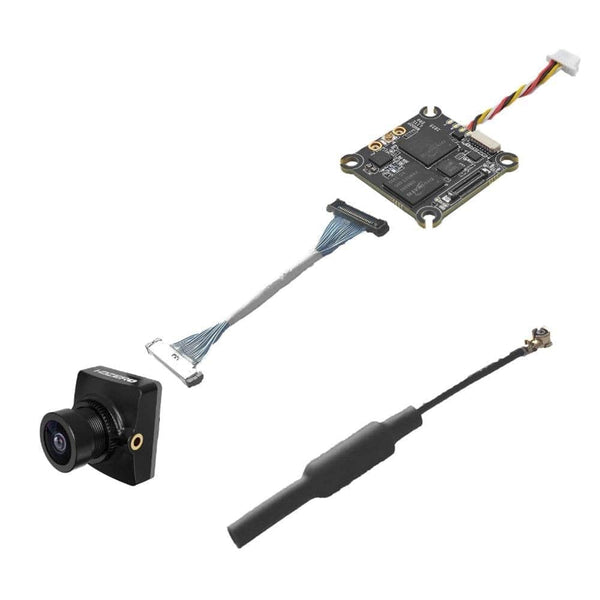

Second source 2026-09-23: this bundle's radio is the Whoop V2 VTX, and HDZero's own bundle page reprints that transmitter's comparison table in full - 25 mW / 200 mW, 5.725-5.850 GHz, Secured U.FL with brass bar, 31x31 mm (29x29 inner), Mounting Pattern 25.5x25.5 mm (M2), 5.4 g (5.1 g w/o wires), Power Input 3-12.6 V (1S-3S) - beside the Nano V3 camera's own (14x16x14mm, 2.2gram, 0.5 inch CMOS, FOV D:155 H:126 V:94). The columns hold the transmitter, so weight_g stays the 5.4 g of the module and not the bundle, which also contains the camera, a dipole antenna and a 40mm MIPI cable. channels is the manual's R1-R8, E1, F1, F2, F4 (p8). power_draw is the maker's own supply figure, 'Power Consumption: 5~6W' in the Whoop V2 column (the VTX in this bundle), read 2026-10-17; it is the VTX's input draw, not its RF output.
