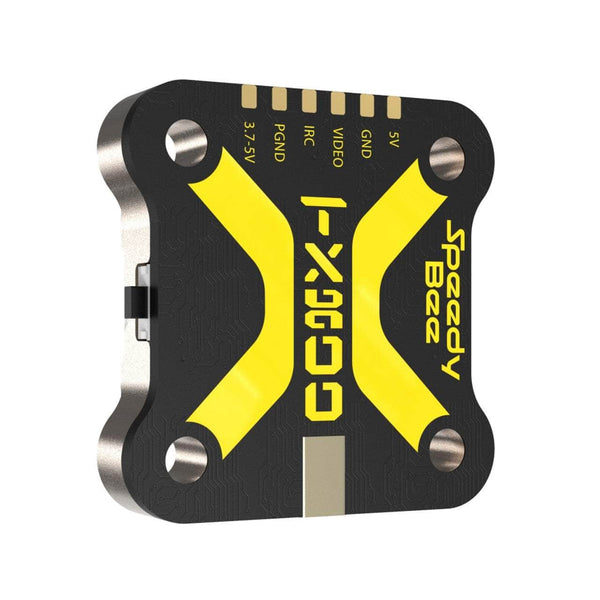

SpeedyBee TX800 20x20 25-800mW 5.8GHz
Listed as: SpeedyBee TX800 20x20 25-800mW 5.8GHz - MMCX
Of the 81 other 5.8 GHz analog video transmitters in our database, 31 have a lower maximum power than the TX800 20x20 25-800mW 5.8GHz (800 mW, 29 dBm), 12 the same and 38 a higher one; the class median is 800 mW. The TX800 20x20 25-800mW 5.8GHz steps through 25 / 200 / 400 / 800 mW, which is 14 / 23 / 26 / 29 dBm: the top level is 15 dB above the lowest, about 5.7x the free-space range on the same antennas.
| System | analog |
|---|---|
| Max power | 800 mW |
| Power levels | 25 / 200 / 400 / 800 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 3.7-5V |
| Mounting | 20x20mm |
| Channels | 40 |
| Antenna connector | MMCX |
| Weight | 5.6 g |
| Price (approx.) | 51.99 USD |
SpeedyBee TX800 20x20 25-800mW 5.8GHz VTX table for Betaflight
The band and channel frequencies and power levels as SpeedyBee publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | — | 5885 | 5905 | — | — |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 400 (value 400), 800 (value 600), 800 (value 600).
vtxtable bands 5
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 0 5885 5905 0 0
vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable powerlevels 5
vtxtable powervalues 25 200 400 600 600
vtxtable powerlabels 25 200 400 800 800
saveSource: https://docs.speedybee.cn/en/fpv/vtx_vrx/tx800/tx800-vtx-table.html — SpeedyBee's own Betaflight config file, "SpeedyBee-TX800(USA&CE).json", linked on its "TX800 VTX table" page; its description reads "for IRC Tramp (US version)", the protocol the manual sets in Ports. The five bands of eight are the manual's "Frequency Table" (Band A/B/E, Airwave, Race Band) with three slots zeroed - Band E CH4 5645, CH7 5925 and CH8 5945 - which is the US version the file is named for; the manual prints them and notes "Orange is a disabled channel in locked state", so 37 of the 40 slots transmit. The four labels are the manual's button ladder (25/200/400/800 mW) and the file repeats its top level twice (value 600, label "800"); it is stored as published. The label is the OSD text and the value is what Betaflight sends over Tramp, so the "800" label on value 600 is SpeedyBee's own figure.. Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Brand corrected from RunCam to SpeedyBee: the board's own silkscreen reads SpeedyBee TX800, SpeedyBee sells it and hosts its manual, and RunCam is the vendor field of the RaceDayQuads listing the scrape read - a shop's supplier, not the part's manufacturer. The slug still carries the wrong brand because a published URL does not move, and model_set drops the 'SpeedyBee' the title carried: clean_model() strips the brand it was given, so a corrected brand leaves its own name printed twice. Cited against SpeedyBee's own TX800 user manual, which prints: Power in 3.7-5V, Power out 5V, board 28x28mm with the four holes on a 20x20mm pattern, 'Long press 5 seconds to enter POWER mode; each 5-second press switches to 25/200/400/800mW in sequence', and a 5-band 8-channel frequency table (A, B, E, Airwave, Race Band) running 5645-5945 MHz - 40 channels, which is what channels holds. frequency_range keeps the 5.8 GHz class label this column uses for the band. SpeedyBee's knowledge base repeats the four power steps per LED state but heads the band question 'switch between Band1/2/3/4/5/6' - six bands is the TX ULTRA's table, not this radio's, so a brand's FAQ can carry a sibling's figure the way a retail listing can. Discontinued: the TX800 is gone from speedybee.com's catalogue and survives only in the downloads and the knowledge base.
