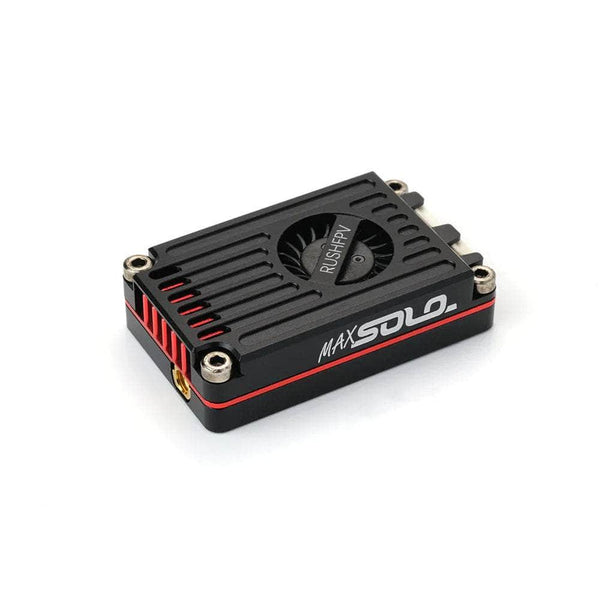

RUSHFPV Max Solo 25-1000mW+ 5.8GHz
Listed as: RUSHFPV Max Solo 25-1000mW+ 5.8GHz - MMCX
Of the 81 other 5.8 GHz analog video transmitters in our database, 62 have a lower maximum power than the Max Solo 25-1000mW+ 5.8GHz (2500 mW, 34 dBm), 10 the same and 9 a higher one; the class median is 800 mW.
| System | analog |
|---|---|
| Max power | 2500 mW |
| Frequency range | 5.8 GHz |
| Channels | 37 |
| Antenna connector | MMCX |
| Weight | 15.0 g |
| Price (approx.) | 93.99 USD |
RUSHFPV Max Solo 25-1000mW+ 5.8GHz VTX table for Betaflight
The band and channel frequencies and power levels as RUSHFPV publishes them for SmartAudio 2.1 control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BAND_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BAND_E | 5705 | 5685 | 5665 | 5665 | 5885 | 5905 | 5905 | 5905 |
| F AIRWAVE | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 14), 500 (value 27), 1 (value 30), 2.5 (value 34).
vtxtable bands 5
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E CUSTOM 5705 5685 5665 5665 5885 5905 5905 5905
vtxtable band 4 AIRWAVE F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable powerlevels 4
vtxtable powervalues 14 27 30 34
vtxtable powerlabels 25 500 1 2.5
saveSource: https://drive.google.com/file/d/1LaKLB0qCTQd37FFkZusKi5nOVJ1teAFI/view — Copied from the maker's Betaflight file RUSH_TANK_MAX_SOLO_SA2.1_37CH.json in the RushFPV VTX Table Drive folder linked from rushfpv.net's Download Center. The 37CH (US) version restricts Band E by repeating a neighbour in the file (E4 = 5665, E7 = E8 = 5905) and carries no LOWRACE band; copied as published. Values are dBm as the maker's SmartAudio 2.1 file prints them (14 = 25 mW); labels are the file's. RushFPV publishes two files per model: this one and a 48-channel twin (RUSH_TANK_MAX_SOLO_SA2.1_48CH.json). The retail listing this page came from states 37 channels, so the 37CH file is the one stored; the file's ladder 25/500/1W/2.5W (34 dBm) agrees with RushFPV's 'MAX 2.5W' artwork.. Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
max_power_mw corrected 1000 -> 2500 against RushFPV's own catalogue, where this radio is listed as 'MAX SOLO 5.8G VTX 2.5W' and its product artwork prints 'MAX 2.5W'. The retail listing this page was scraped from titles it '25-1000mW+', and the trailing '+' is exactly the case the plausibility check already treats as a floor rather than a ceiling - so nothing flagged, and the column simply held the wrong end of the range until the manufacturer was read.
