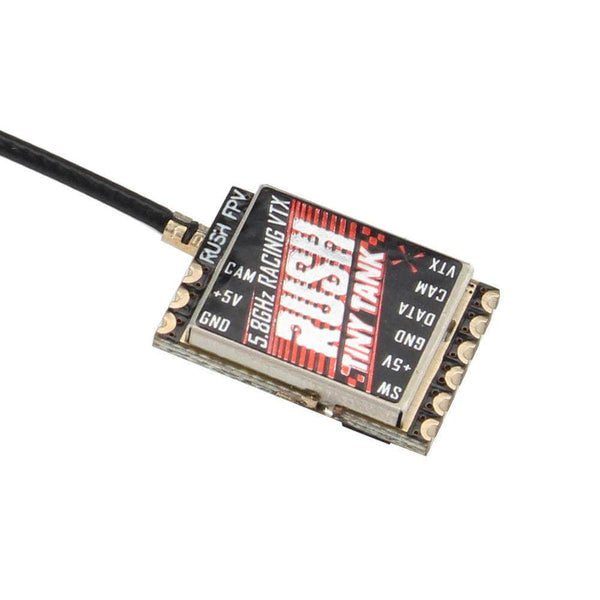

RUSHFPV Tiny Tank 25-350mW 5.8GHz Micro
Listed as: RUSHFPV Tiny Tank 25-350mW 5.8GHz Micro - U.FL
Of the 81 other 5.8 GHz analog video transmitters in our database, 11 have a lower maximum power than the Tiny Tank 25-350mW 5.8GHz Micro (350 mW, 25 dBm), 5 the same and 65 a higher one; the class median is 800 mW. The Tiny Tank 25-350mW 5.8GHz Micro steps through 25 / 100 / 200 / 350 mW, which is 14 / 20 / 23 / 25 dBm: the top level is 11 dB above the lowest, about 3.7x the free-space range on the same antennas.
| System | analog |
|---|---|
| Max power | 350 mW |
| Power levels | 25 / 100 / 200 / 350 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 5V |
| Channels | 48 |
| Antenna connector | U.FL |
| Weight | 1.4 g |
| Price (approx.) | 29.99 USD |
RUSHFPV Tiny Tank 25-350mW 5.8GHz Micro VTX table for Betaflight
The band and channel frequencies and power levels as RUSHFPV publishes them for SmartAudio 2.1 control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BAND_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BAND_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F AIRWAVE | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L LOWRACE | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 14), 100 (value 20), 200 (value 23), 350 (value 25).
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 AIRWAVE F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable powerlevels 4
vtxtable powervalues 14 20 23 25
vtxtable powerlabels 25 100 200 350
saveSource: https://drive.google.com/file/d/1NZ1_RVJVpcG5B4QHmQ4iyLdvNM4RHiBW/view — Copied from the maker's Betaflight file RUSH_TINYTANK_SA2.1_48CH.json in the RushFPV VTX Table Drive folder linked from rushfpv.net's Download Center. The 48CH file prints B5 as 5999 inside a band-B ladder reading 5790, 5809, 5828; the same model's 37CH file prints 5809 there, which is what is stored. Values are dBm as the maker's SmartAudio 2.1 file prints them (14 = 25 mW); labels are the file's. RushFPV publishes two files per model: this one and a 37-channel twin (RUSH_TINYTANK_SA2.1_37CH.json). Ladder 25/100/200/350 matches the spec block's PIT/25/100/200/MAX 350 mW.. Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
RushFPV's own spec block for the Tiny Tank: 5 V input, 1.4 g, 48 channels (37 on the US version), U.FL, TBS Smart Audio, power PIT/25/100/200/MAX 350 mW - the only Tank whose top step is printed with its figure, which is where the 350 mW this page already carried is confirmed.
