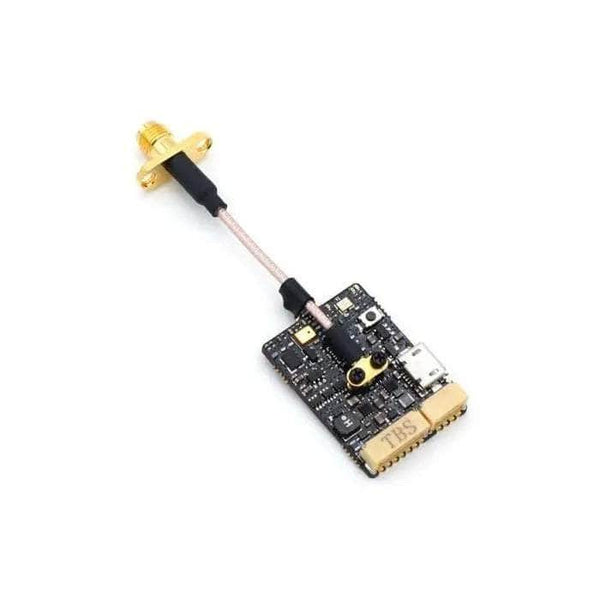

TBS Unify EVO 25-800mW 5.8GHz
Listed as: TBS Unify EVO 25-800mW 5.8GHz - SMA
Of the 81 other 5.8 GHz analog video transmitters in our database, 31 have a lower maximum power than the Unify EVO 25-800mW 5.8GHz (800 mW, 29 dBm), 12 the same and 38 a higher one; the class median is 800 mW.
| System | analog |
|---|---|
| Max power | 800 mW |
| Frequency range | 5.8 GHz |
| Antenna connector | U.FL |
| Weight | 7.0 g |
| Price (approx.) | 71.99 USD |
TBS Unify EVO 25-800mW 5.8GHz VTX table for Betaflight
The band and channel frequencies and power levels as TBS publishes them for SmartAudio 2.1 control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L RACE_LOW | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 14), 100 (value 20), 500 (value 27), 800 (value 36).
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 RACE_LOW L FACTORY 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable powerlevels 4
vtxtable powervalues 14 20 27 36
vtxtable powerlabels 25 100 500 800
saveSource: https://www.team-blacksheep.com/media/files/vtx-table-for-betaflight.txt — TBS's own Betaflight table, block "//TBS Unify EVO 5G8 (HV) - SA 2.1" of the file its shop links under Downloads on every Unify page. The EVO is no longer in that shop, so this file is the manufacturer document for it, and it names exactly one EVO 5G8. Six factory bands of eight. Power values are dBm except the top one, which the file's comment sets to 36 dB to "force the vtx to ouput max power"; the labels 25/100/500/800 are this unit's own power steps.. Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
TBS's own catalogue (checked 2026-09-23) no longer lists the Unify EVO: it is in neither the VTX category nor its 5G8 subcategory, which between them hold every current TBS transmitter. The obvious URL, /products/prod:unify_evo, answers 200 - but the page it returns is titled 'Secret Project' and carries no product, no spec block and no price, so there is nothing to cite. A 200 is not a product page.
