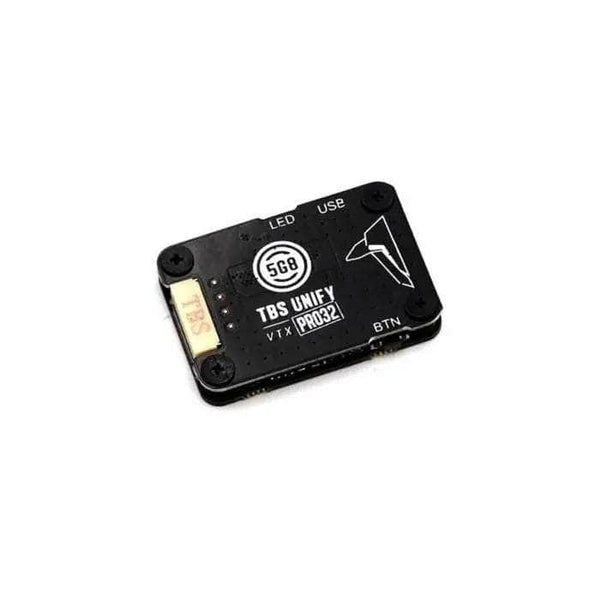

TBS Unify Pro32 HV 25-1000mW 5.8GHz
Listed as: TBS Unify Pro32 HV 25-1000mW 5.8GHz - MMCX
Of the 81 other 5.8 GHz analog video transmitters in our database, 45 have a lower maximum power than the Unify Pro32 HV 25-1000mW 5.8GHz (1000 mW, 30 dBm), 6 the same and 30 a higher one; the class median is 800 mW.
| System | analog |
|---|---|
| Max power | 1000 mW |
| Power levels | 25 / 100 / 400 / 1000+ mW |
| Frequency range | 5.8 GHz |
| Input voltage | 6-25V |
| Power draw | 90-130 mA at 25 mW, 300-450 mA at 1000 mW+ (22 V to 14.8 V) |
| Antenna connector | MMCX |
| Weight | 8.7 g |
| Price (approx.) | 59.99 USD |
TBS Unify Pro32 HV 25-1000mW 5.8GHz VTX table for Betaflight
The band and channel frequencies and power levels as TBS publishes them for SmartAudio 2.1 control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L RACE_LOW | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 14), 100 (value 20), 400 (value 26), 1W+ (value 36).
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 RACE_LOW L FACTORY 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable powerlevels 4
vtxtable powervalues 14 20 26 36
vtxtable powerlabels 25 100 400 1W+
saveSource: https://www.team-blacksheep.com/media/files/vtx-table-for-betaflight.txt — TBS's own Betaflight table, the file linked as "VTX Table for Betaflight" under Downloads on the Unify PRO32 HV page, block "//TBS Unify Pro32 HV - SA 2.1". Six factory bands of eight, the five 5.8 GHz ones identical to the manual's Channel/Band - Frequency Table (page 10) plus RACE_LOW. Power values are dBm except the top one, which the file's comment sets to 36 dB to "force the vtx to ouput max power"; its label 1W+ is the product page's 25 / 100 / 400 / 1000+ mW. The Unify family also ships as a Betaflight preset.. Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Second source 2026-09-23: TBS's own spec block for the Unify Pro32 HV (MMCX) - Video System Analog, 6-25 V in, Min/Max Frequency Band 5658/5945 MHz, Output Power 25 / 100 / 400 / 1000+ mW, MMCX, 37 x 25 x 5.8 mm, 8.7 g, audio yes, pit mode yes, SmartAudio yes, CE certified. It confirms the 1000 mW and the 8.7 g already published. The '+' is TBS's own: the block writes the top step as 1000+mW. mount_mm stays empty - 37 x 25 x 5.8 mm is the board, and the page prints no mounting pattern. power_draw is the maker's own supply figure, 'Power consumption 25mW: 90mA - 130mA (22V - 14.8V), 1000mW+: 300mA - 450mA (22V - 14.8V)' in the TBS UNIFY PRO32 HV (MMCX) / PRO32 DP column of the Unify Pro32 manual's spec table, read 2026-10-18 at full resolution. It is the VTX's input draw, not its RF output.
