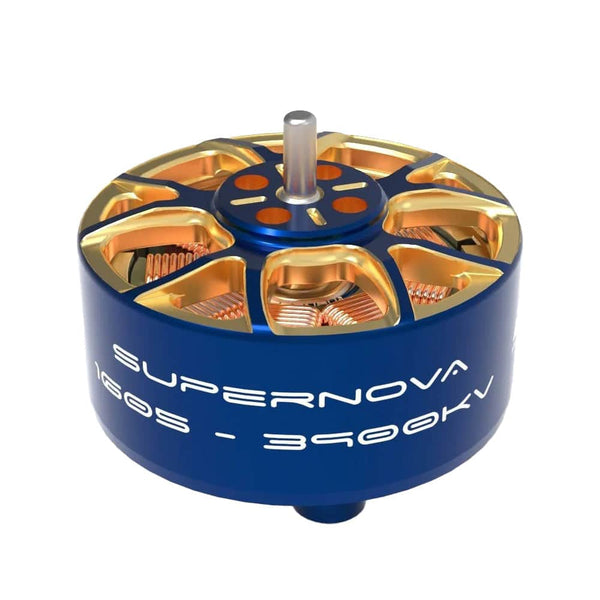

AOS RC Supernova 1605
| Stator | 1605 |
|---|---|
| KV options | 3900 |
| Weight | 13.3 g |
| Shaft | 1.5mm |
| Max cells | 3-4S |
| Configuration | 9N12P |
| Dimensions | 20.3x14.2 mm |
| Mount | 9x9mm (4-M2) |
| Winding resistance | 88 mOhm |
| Max thrust | 863 g |
| Price (approx.) | 17.99 USD |
At 13.3 g it is right at the class average across the 3 1605-class motors in our database (avg 13.3 g).
Thrust data (AOS RC bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 3900 | HQ T90RMM*3 | 4S | 25 | 2.2 A | — | 112 g | 3.182 g/W |
| 3900 | HQ T90RMM*3 | 4S | 50 | 9.1 A | — | 360 g | 2.473 g/W |
| 3900 | HQ T90RMM*3 | 4S | 75 | 22.1 A | — | 610 g | 1.725 g/W |
| 3900 | HQ T90RMM*3 | 4S | 100 | 33.3 A | — | 747 g | 1.402 g/W |
| 3900 | Gemfan D90*5 | 4S | 25 | 2.5 A | — | 129 g | 3.225 g/W |
| 3900 | Gemfan D90*5 | 4S | 50 | 11.9 A | — | 403 g | 2.117 g/W |
| 3900 | Gemfan D90*5 | 4S | 75 | 27 A | — | 638 g | 1.477 g/W |
| 3900 | Gemfan D90*5 | 4S | 100 | 38.5 A | — | 768 g | 1.247 g/W |
| 3900 | Gemfan 4024*2 | 4S | 25 | 1.5 A | — | 91 g | 3.792 g/W |
| 3900 | Gemfan 4024*2 | 4S | 50 | 6.7 A | — | 335 g | 3.125 g/W |
| 3900 | Gemfan 4024*2 | 4S | 75 | 17.6 A | — | 637 g | 2.262 g/W |
| 3900 | Gemfan 4024*2 | 4S | 100 | 29.1 A | — | 863 g | 1.854 g/W |
Manufacturer bench figures (RCinPower bench, three props at 16 V (4S), 25/50/75/100% throttle; no RPM published); real-world thrust varies with ESC, battery sag and prop condition.
Thrust-to-weight with this motor
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan 4022F 2-Blade | 4.0x2.2 | 2 | 0.37 g |
| HQProp T3.5x2.2x2 | 3.5x2.2 | 2 | 1.1 g |
| HQProp Durable T4x2.5 | 4.0x2.5 | 2 | 1.45 g |
| HQProp T3.5x2.5x3 | 3.5x2.5 | 3 | 1.55 g |
| HQProp 3.5x2.2x3 | 3.5x2.2 | 3 | 1.6 g |
Where this data comes from
The sheet is RC IN POWER's own test-report template (its footer prints [email protected]) under the AOS RC name, and it is the description image on this retail listing; rcinpower.com's own G-SERIES index publishes no AOS 1605 at any id. It is headed "MOTORS: AOS 1605 -3900KV" and its Technical Datas block is the listing's Specifications block to the digit - 9N12P, 16 mm stator diameter, 5 mm stator length, 1.5 mm shaft (2 mm inside), 13.3 g with 3 cm wire, idle 1.26 A at 10 V, 3S-4S, 616 W max continuous, 38.5 A max current - plus one figure the listing omits, an internal resistance of 88 mOhm. It also settles a figure the listing mistypes: the body is Phi 20.3*14.2 mm, which the listing prints as "20x3 x 14.2mm". The block's maxima are its own Gemfan D90*5 full-throttle row (616.0 W / 38.5 A), under a "3S" label that row contradicts: every one of the twelve rows is at 16 V (4S). The base mount is 9x9 mm 4xM2, its two callouts drawn across the diagonals; the 5x5 mm pattern on the bell is the prop pattern. Temperature after 3 s at full throttle: 73-85 degC, the Gemfan D90*5 run marked "HOT" by the sheet itself
