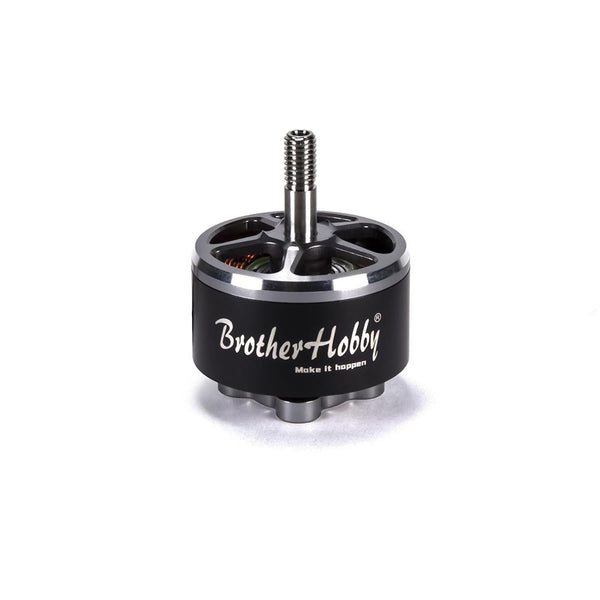

BrotherHobby Avenger V3 2812

BrotherHobby Avenger V3 2812
Image: racedayquads.com
Stator2812
KV options1115
Weight76.5 g
ShaftM5
Max cells5-8S
Configuration12N14P
DimensionsØ33.9x42 mm
Mount19x19mm (M3)
Max thrust3307 g
Price (approx.)40.99 USD

Thrust data (BrotherHobby bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
900 HQ 8X4.5X3 6S 30 2.4 A 6554 388 g 6.42 g/W
900 HQ 8X4.5X3 6S 40 4.1 A 8310 596 g 5.77 g/W
900 HQ 8X4.5X3 6S 50 6.8 A 9590 838 g 4.89 g/W
900 HQ 8X4.5X3 6S 60 11.3 A 10911 1167 g 4.1 g/W
900 HQ 8X4.5X3 6S 70 17.1 A 12457 1519 g 3.54 g/W
900 HQ 8X4.5X3 6S 80 23.3 A 13889 1860 g 3.18 g/W
900 HQ 8X4.5X3 6S 90 34.0 A 14849 2371.5 g 2.79 g/W
900 HQ 8X4.5X3 6S 100 35.9 A 15532 2406 g 2.68 g/W
900 HQ 9X5X3 6S 30 3.0 A 5954 628 g 8.31 g/W
900 HQ 9X5X3 6S 40 6.2 A 7880 977 g 6.25 g/W
900 HQ 9X5X3 6S 50 14.9 A 9506 1525 g 4.08 g/W
900 HQ 9X5X3 6S 60 17.7 A 10569 1719 g 3.87 g/W
900 HQ 9X5X3 6S 70 23.6 A 11052 1976 g 3.35 g/W
900 HQ 9X5X3 6S 80 27.2 A 11600 2226 g 3.27 g/W
900 HQ 9X5X3 6S 90 32.7 A 12127 2506 g 3.08 g/W
900 HQ 9X5X3 6S 100 45.1 A 13059 3021 g 2.69 g/W
1115 HQ 8X4.5X3 6S 30 3.2 A 7382 484 g 6.0 g/W
1115 HQ 8X4.5X3 6S 40 6.0 A 9254 779 g 5.15 g/W
1115 HQ 8X4.5X3 6S 50 11.0 A 10942 1162 g 4.21 g/W
1115 HQ 8X4.5X3 6S 60 14.8 A 12329 1443 g 3.88 g/W
1115 HQ 8X4.5X3 6S 70 27.3 A 14420 2019 g 2.96 g/W
1115 HQ 8X4.5X3 6S 80 41.8 A 16071 2580 g 2.49 g/W
1115 HQ 8X4.5X3 6S 90 53.2 A 17203 2967 g 2.25 g/W
1115 HQ 8X4.5X3 6S 100 57.3 A 17315 3076 g 2.16 g/W
1115 HQ 9X5X3 6S 30 5.5 A 7659 829 g 5.98 g/W
1115 HQ 9X5X3 6S 40 9.3 A 8916 1157 g 4.94 g/W
1115 HQ 9X5X3 6S 50 15.7 A 10257 1559 g 3.96 g/W
1115 HQ 9X5X3 6S 60 22.7 A 10882 1937 g 3.41 g/W
1115 HQ 9X5X3 6S 70 40.5 A 14090 2595 g 2.57 g/W
1115 HQ 9X5X3 6S 80 55.2 A 14195 3176 g 2.31 g/W
1115 HQ 9X5X3 6S 90 56.2 A 14206 3192 g 2.29 g/W
1115 HQ 9X5X3 6S 100 66.8 A 14634 3307 g 2.0 g/W

Manufacturer bench figures (BrotherHobby 2022 bench, 6S, 8 throttle points per KV/prop; 900KV on 40/50 A ESC, 1115KV on 60/80 A); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
APC 7x4 SF-B4 2-Blade 7.0x4.0 2 5.1 g
HQProp 7x5.5x2 7.0x5.5 2 6.4 g
Gemfan Cinelifter 7035 7x3.5x3 7.0x3.5 3 6.5 g
HQProp 7x4.5x2 Durable 7.0x4.5 2 6.6 g
HQProp MacroQuad 7x4.5 Glass Fiber Nylon CCW 7.0x4.5 2 6.8 g

Where this data comes from

V3 bench sheets cover 900 KV and 1115 KV on 8in and 9in props. The 900 KV block gives 76.00 g Weight Including Cable with an 18# 250 mm lead, a 28.00 mm stator on a 12 mm Kawasaki 1200# 0.2 mm lamination, a 33.9x42 mm body, 12N14P and N52H magnets; published weight_g 76.5 g is RaceDayQuads' figure for the 1115 KV winding this page sells, which that sheet does not cover. mount_mm is withdrawn. This page published "19x19mm (4-M3)", and BrotherHobby's own drawing calls out "O 19" with "4 - M3" against a bell it marks "O 33.9" - a 19 mm bolt circle, i.e. a 13.4 mm square, not a 19 mm one. RaceDayQuads prints the same callout as "Bolt Pattern: M3 (19X19mm)" here and as "Mounting Screw Pattern: M3 (19x19mm)" on the Avenger 2810, whose drawing prints "O 19" too. That is a third manufacturer dimensioning its mount as a bolt-circle diameter after Axisflying and T-Motor, and the first time the 41%-too-large square has reached one of our own pages rather than staying in a retailer's copy. The callout lives here in prose until a mount_bolt_circle_mm column exists.
