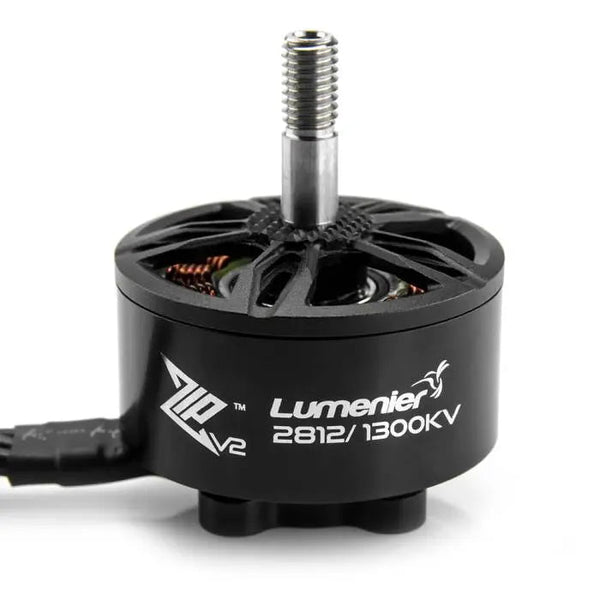

Lumenier ZIP V2 2812 Cinematic

Lumenier ZIP V2 2812 Cinematic
Image: racedayquads.com
Stator2812
KV options1150, 1300
Weight71.0 g
Shaft5mm
Max cells3-8S
Configuration12N14P
Dimensions33.7x25.8 mm
Mount19x19mm (M3)
Price (approx.)44.49 USD

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
APC 7x4 SF-B4 2-Blade 7.0x4.0 2 5.1 g
HQProp 7x5.5x2 7.0x5.5 2 6.4 g
Gemfan Cinelifter 7035 7x3.5x3 7.0x3.5 3 6.5 g
HQProp 7x4.5x2 Durable 7.0x4.5 2 6.6 g
HQProp MacroQuad 7x4.5 Glass Fiber Nylon CCW 7.0x4.5 2 6.8 g

Where this data comes from

Lumenier's own Specifications block for the ZIP V2 2812 Cinematic states 19x19 mm M3 base mounting, a 33.7 x 25.8 mm body, 12N14P, 71 g with short wires, 3-8S ("6S most common"), a 28 x 12 mm stator of 0.2 mm Kawasaki silicon steel, N52H curved magnets, Japanese NMB 12x6x4 bearings, a 4.8 mm titanium-alloy inner shaft, a 5 mm prop shaft and 230 mm 18AWG leads - and no thrust, current or power figure. The weight and cell range confirm what our retail listing already published
