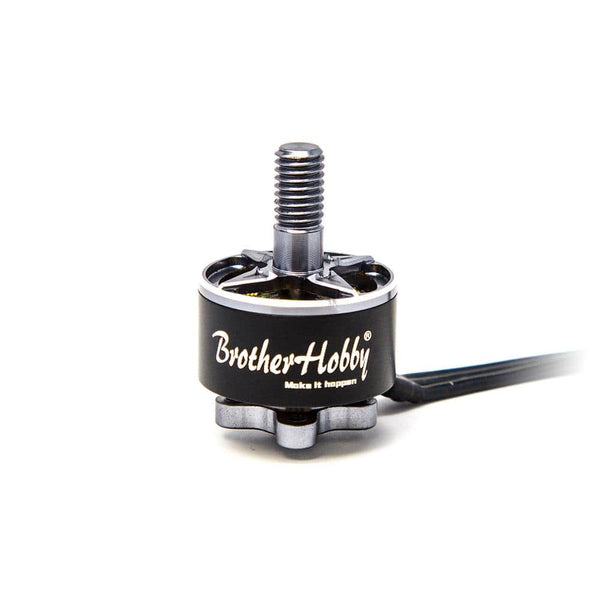

BrotherHobby VY 1507

BrotherHobby VY 1507
Image: racedayquads.com
Stator1507
KV options4150
Weight16.3 g
ShaftM5
Max cells4-6S
Configuration12N14P
Max thrust879 g
Price (approx.)21.99 USD

At 16.3 g it is 0.6 g heavier than average across the 6 1507-class motors in our database (avg 15.7 g).

Thrust data (BrotherHobby bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1550 GF 5143*3 Triblade 6S 30 1.2 A 9549 122 g 4.24 g/W
1550 GF 5143*3 Triblade 6S 40 2.4 A 11602 195 g 3.39 g/W
1550 GF 5143*3 Triblade 6S 50 3.4 A 13691 283 g 3.47 g/W
1550 GF 5143*3 Triblade 6S 60 4.9 A 15123 354 g 3.01 g/W
1550 GF 5143*3 Triblade 6S 70 6.8 A 16846 466 g 2.86 g/W
1550 GF 5143*3 Triblade 6S 80 8.9 A 18504 558 g 2.61 g/W
1550 GF 5143*3 Triblade 6S 90 11.5 A 19683 658 g 2.38 g/W
1550 GF 5143*3 Triblade 6S 100 13.5 A 20837 762 g 2.35 g/W
1900 HQ 5141*3 Triblade 4S 30 1.4 A 8041 110 g 4.91 g/W
1900 HQ 5141*3 Triblade 4S 40 2.5 A 9873 174 g 4.35 g/W
1900 HQ 5141*3 Triblade 4S 50 3.7 A 11082 231 g 3.9 g/W
1900 HQ 5141*3 Triblade 4S 60 5.3 A 12548 297 g 3.5 g/W
1900 HQ 5141*3 Triblade 4S 70 7.8 A 14108 387 g 3.1 g/W
1900 HQ 5141*3 Triblade 4S 80 10.7 A 15436 476 g 2.78 g/W
1900 HQ 5141*3 Triblade 4S 90 13.6 A 16063 566 g 2.62 g/W
1900 HQ 5141*3 Triblade 4S 100 14.9 A 16963 617 g 2.6 g/W
3100 HQ 3*4*3 Triblade 6S 30 2.6 A 19539 126 g 2.02 g/W
3100 HQ 3*4*3 Triblade 6S 40 4.0 A 24977 188 g 1.96 g/W
3100 HQ 3*4*3 Triblade 6S 50 6.2 A 28498 279 g 1.88 g/W
3100 HQ 3*4*3 Triblade 6S 60 10.2 A 33706 413 g 1.69 g/W
3100 HQ 3*4*3 Triblade 6S 70 13.5 A 37224 489 g 1.51 g/W
3100 HQ 3*4*3 Triblade 6S 80 17.5 A 41627 628 g 1.5 g/W
3100 HQ 3*4*3 Triblade 6S 90 23.0 A 45020 747 g 1.35 g/W
3100 HQ 3*4*3 Triblade 6S 100 27.4 A 48120 879 g 1.34 g/W
4150 HQ 3*4*3 Triblade 4S 30 2.5 A 16630 75 g 1.88 g/W
4150 HQ 3*4*3 Triblade 4S 40 4.2 A 20767 125 g 1.86 g/W
4150 HQ 3*4*3 Triblade 4S 50 6.9 A 25794 203 g 1.84 g/W
4150 HQ 3*4*3 Triblade 4S 60 10.7 A 30636 294 g 1.72 g/W
4150 HQ 3*4*3 Triblade 4S 70 13.9 A 33940 365 g 1.64 g/W
4150 HQ 3*4*3 Triblade 4S 80 19.4 A 38168 494 g 1.59 g/W
4150 HQ 3*4*3 Triblade 4S 90 24.2 A 40998 581 g 1.5 g/W
4150 HQ 3*4*3 Triblade 4S 100 29.6 A 44104 695 g 1.48 g/W

Manufacturer bench figures (BrotherHobby 2020 bench, 8 throttle points per KV; 1550KV and 3100KV on 6S, 1900KV and 4150KV on 4S); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan 4022F 2-Blade 4.0x2.2 2 0.37 g
Gemfan Hurricane 3018 Durable 1.5mm 3.0x1.8 2 0.75 g
Gemfan Hurricane 3018 Durable 2mm 3.0x1.8 2 0.75 g
HQProp T3x1.5 Durable 3.0x1.5 2 0.78 g
HQProp T3.5x2.2x2 3.5x2.2 2 1.1 g

Where this data comes from

VY 1507 bench sheets cover 1550/1900/3100/4150 KV; the 3100/4150 KV runs use a 3in triblade, the 1550/1900 KV runs a 5in
