T-Motor F1507

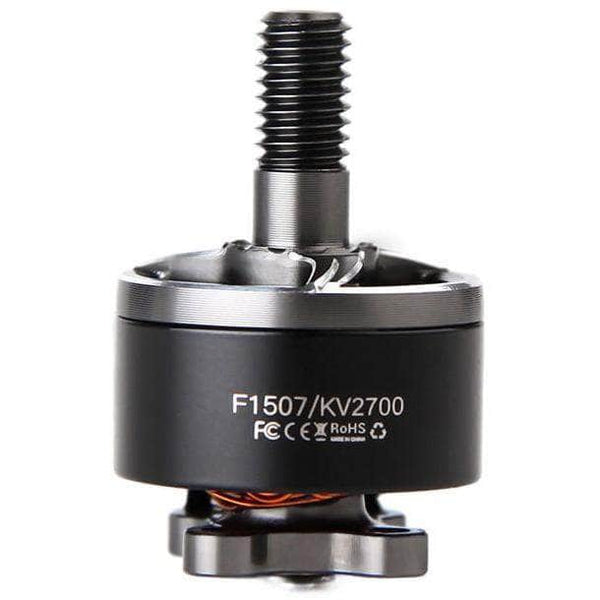

T-Motor F1507
Image: racedayquads.com
Stator1507
KV options2700, 3800
Weight15.0 g
Shaft2mm
Max cells3-4S
Configuration12N14P
DimensionsØ18.9x29.7 mm
Winding resistance131 (2700KV) / 81 (3800KV) mOhm
Max thrust838.7 g
Price (approx.)24.99 USD

At 15 g it is 0.7 g lighter than average across the 6 1507-class motors in our database (avg 15.7 g).

Thrust data (T-Motor bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
2700 Gemfan GF3035 Tri-Blade 6S 50 3.12 A 29496 205.53 g 2.82 g/W
2700 Gemfan GF3035 Tri-Blade 6S 55 3.82 A 31949 244.7 g 2.74 g/W
2700 Gemfan GF3035 Tri-Blade 6S 60 4.53 A 34673 285.16 g 2.7 g/W
2700 Gemfan GF3035 Tri-Blade 6S 65 5.37 A 37031 328.31 g 2.63 g/W
2700 Gemfan GF3035 Tri-Blade 6S 70 6.3 A 39385 375.52 g 2.56 g/W
2700 Gemfan GF3035 Tri-Blade 6S 75 7.28 A 41489 418.87 g 2.48 g/W
2700 Gemfan GF3035 Tri-Blade 6S 80 8.6 A 43446 464.96 g 2.32 g/W
2700 Gemfan GF3035 Tri-Blade 6S 85 9.85 A 46200 529.08 g 2.29 g/W
2700 Gemfan GF3035 Tri-Blade 6S 90 11.16 A 48105 579.13 g 2.22 g/W
2700 Gemfan GF3035 Tri-Blade 6S 95 12.75 A 50032 631.35 g 2.12 g/W
2700 Gemfan GF3035 Tri-Blade 6S 100 14.24 A 52194 687.07 g 2.08 g/W
2700 Gemfan GF3052 Tri-Blade 6S 50 5.07 A 27274 281.23 g 2.38 g/W
2700 Gemfan GF3052 Tri-Blade 6S 55 6.13 A 29203 325.82 g 2.29 g/W
2700 Gemfan GF3052 Tri-Blade 6S 60 7.35 A 31135 372.05 g 2.18 g/W
2700 Gemfan GF3052 Tri-Blade 6S 65 8.79 A 32829 424.12 g 2.06 g/W
2700 Gemfan GF3052 Tri-Blade 6S 70 9.97 A 34505 468.12 g 2.0 g/W
2700 Gemfan GF3052 Tri-Blade 6S 75 11.86 A 36703 523.63 g 1.89 g/W
2700 Gemfan GF3052 Tri-Blade 6S 80 13.68 A 38427 577.45 g 1.81 g/W
2700 Gemfan GF3052 Tri-Blade 6S 85 15.52 A 38955 625.78 g 1.73 g/W
2700 Gemfan GF3052 Tri-Blade 6S 90 17.41 A 41309 667.92 g 1.65 g/W
2700 Gemfan GF3052 Tri-Blade 6S 95 19.55 A 42230 701.9 g 1.55 g/W
2700 Gemfan GF3052 Tri-Blade 6S 100 22.68 A 45278 803.49 g 1.55 g/W
2700 T-Motor T3140 Tri-Blade 6S 50 5.12 A 27171 286.38 g 2.4 g/W
2700 T-Motor T3140 Tri-Blade 6S 55 6.19 A 29035 326.32 g 2.26 g/W
2700 T-Motor T3140 Tri-Blade 6S 60 7.37 A 30930 373.95 g 2.18 g/W
2700 T-Motor T3140 Tri-Blade 6S 65 8.66 A 32964 423.87 g 2.08 g/W
2700 T-Motor T3140 Tri-Blade 6S 70 9.77 A 34236 464.46 g 2.01 g/W
2700 T-Motor T3140 Tri-Blade 6S 75 11.45 A 36211 523.49 g 1.94 g/W
2700 T-Motor T3140 Tri-Blade 6S 80 13.28 A 37948 581.53 g 1.86 g/W
2700 T-Motor T3140 Tri-Blade 6S 85 15.12 A 39497 631.14 g 1.77 g/W
2700 T-Motor T3140 Tri-Blade 6S 90 16.91 A 40842 669.31 g 1.69 g/W
2700 T-Motor T3140 Tri-Blade 6S 95 19.05 A 41771 701.24 g 1.57 g/W
2700 T-Motor T3140 Tri-Blade 6S 100 23.34 A 45119 838.7 g 1.54 g/W
3800 Gemfan GF3035 Tri-Blade 4S 50 4.35 A 27308 172.79 g 2.61 g/W
3800 Gemfan GF3035 Tri-Blade 4S 55 5.22 A 29542 202.69 g 2.55 g/W
3800 Gemfan GF3035 Tri-Blade 4S 60 6.08 A 31356 235.07 g 2.55 g/W
3800 Gemfan GF3035 Tri-Blade 4S 65 7.02 A 33688 266.61 g 2.51 g/W
3800 Gemfan GF3035 Tri-Blade 4S 70 8.03 A 35761 302.49 g 2.49 g/W
3800 Gemfan GF3035 Tri-Blade 4S 75 9.25 A 37672 345.12 g 2.44 g/W
3800 Gemfan GF3035 Tri-Blade 4S 80 10.37 A 39842 384.48 g 2.41 g/W
3800 Gemfan GF3035 Tri-Blade 4S 85 11.48 A 41320 422.72 g 2.4 g/W
3800 Gemfan GF3035 Tri-Blade 4S 90 12.85 A 43101 461.57 g 2.35 g/W
3800 Gemfan GF3035 Tri-Blade 4S 95 14.43 A 44817 502.25 g 2.29 g/W
3800 Gemfan GF3035 Tri-Blade 4S 100 16.43 A 46701 549.7 g 2.21 g/W
3800 Gemfan GF3052 Tri-Blade 4S 50 6.46 A 24408 226.31 g 2.32 g/W
3800 Gemfan GF3052 Tri-Blade 4S 55 7.74 A 26156 258.38 g 2.21 g/W
3800 Gemfan GF3052 Tri-Blade 4S 60 9.42 A 28303 299.37 g 2.07 g/W
3800 Gemfan GF3052 Tri-Blade 4S 65 11.02 A 30102 341.7 g 2.0 g/W
3800 Gemfan GF3052 Tri-Blade 4S 70 12.44 A 31517 374.6 g 1.95 g/W
3800 Gemfan GF3052 Tri-Blade 4S 75 14.07 A 33007 411.84 g 1.9 g/W
3800 Gemfan GF3052 Tri-Blade 4S 80 16.05 A 34486 454.63 g 1.84 g/W
3800 Gemfan GF3052 Tri-Blade 4S 85 17.93 A 35816 495.66 g 1.8 g/W
3800 Gemfan GF3052 Tri-Blade 4S 90 20.03 A 36695 534.67 g 1.75 g/W
3800 Gemfan GF3052 Tri-Blade 4S 95 22.35 A 38400 576.51 g 1.7 g/W
3800 Gemfan GF3052 Tri-Blade 4S 100 25.17 A 40137 626.38 g 1.68 g/W
3800 T-Motor T3140 Tri-Blade 4S 50 6.16 A 24742 238.15 g 2.52 g/W
3800 T-Motor T3140 Tri-Blade 4S 55 7.52 A 26270 274.91 g 2.39 g/W
3800 T-Motor T3140 Tri-Blade 4S 60 8.86 A 28161 309.43 g 2.29 g/W
3800 T-Motor T3140 Tri-Blade 4S 65 10.5 A 30122 351.9 g 2.16 g/W
3800 T-Motor T3140 Tri-Blade 4S 70 12.07 A 31605 394.52 g 2.1 g/W
3800 T-Motor T3140 Tri-Blade 4S 75 14.28 A 33458 447.79 g 2.01 g/W
3800 T-Motor T3140 Tri-Blade 4S 80 15.34 A 34305 468.07 g 1.96 g/W
3800 T-Motor T3140 Tri-Blade 4S 85 17.62 A 35847 513.4 g 1.88 g/W
3800 T-Motor T3140 Tri-Blade 4S 90 19.6 A 37313 547.14 g 1.81 g/W
3800 T-Motor T3140 Tri-Blade 4S 95 21.94 A 38329 588.8 g 1.75 g/W
3800 T-Motor T3140 Tri-Blade 4S 100 25.87 A 40588 673.83 g 1.72 g/W

Manufacturer bench figures (T-Motor bench, three props across two KV: Gemfan GF3035, Gemfan GF3052 and T-Motor T3140, all tri-blade, on 6S (~23.3 V) at 2700 KV and on 4S (~15.2 V) at 3800 KV; 11 throttle points (50-100% in 5% steps) on each run); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan 4022F 2-Blade 4.0x2.2 2 0.37 g
Gemfan Hurricane 3018 Durable 1.5mm 3.0x1.8 2 0.75 g
Gemfan Hurricane 3018 Durable 2mm 3.0x1.8 2 0.75 g
HQProp T3x1.5 Durable 3.0x1.5 2 0.78 g
HQProp T3.5x2.2x2 3.5x2.2 2 1.1 g

Where this data comes from

Bench rows, configuration, dimensions and winding resistances are from T-Motor's own "Test Report", "Specifications" and "Product Drawing" images on tmotorhobby.com/goods-923.html. Identity with our RaceDayQuads listing is four figures shared to the digit on the winding that shop sells: the block's KV3800 "Weight (Incl. Cable)" is 15 g against our published 15.0 g, its Shaft Diameter is 2 mm against our 2mm, its Rated Voltage(Lipo) is 3-4S against our 3-4S, and the O18.9x29.7 mm body is a 1507 stator. kv_options goes from 1 to 2: the Specifications block carries both windings - KV2700 at 15.2 g, 131 mOhm, 3-6S, 0.6 A idle at 5 V, a 22 A 60-second peak and 519 W max power, and KV3800 at 15 g, 81 mOhm, 3-4S, 0.9 A idle, 23 A and 372 W - both 12N14P on a 24#AWG 100 mm lead, and T-Motor's own page title is "F1507 2700KV/3800KV". Max thrust is the 2700 KV T-Motor T3140 6S 100% row, 838.7 g, where the page carried none. All 66 rows pass the efficiency identity - printed thrust / printed power is the printed efficiency on every one - and printed power is voltage x current on all 66 to within the band the two-decimal columns allow, with no run carrying an offset, so nothing here has the V2208's or the V2306.5's constant. Four source facts recorded rather than repaired. First, the spec-block cross-check lands on the GF3052 100% row rather than on the table maximum: the KV2700 block's 22 A and 519 W are that row's 22.68 A and 519.74 W truncated, while the biggest row on its sheet is the T3140 100% one at 23.34 A and 543.46 W - so this template's "Peak Current(60s)" and "Max. Power(60s)" are one run's figures, not the sheet's. On the KV3800 half only the power follows that rule (372 W against the GF3052 100% row's 372.86 W); its 23 A peak matches no row in its own table, where the GF3052 and T3140 100% rows draw 25.17 A and 25.87 A. Second, the block states max_cells per winding - 3-6S at 2700 KV against 3-4S at 3800 KV - and our published "3-4S" came off the 3800 KV listing, so it is right for the winding the shop sells and wrong for the one this entry adds. Third, the Product Drawing dimensions the mount as a bolt circle and prints the symbol: "O12" on a leader to the red pitch circle through four holes at 90 degrees, with "M2*0.4" on a leader to one of them - a 12 mm bolt circle is an 8.5 mm square, so mount_mm stays unpublished as on the other T-Motor and Axisflying pages, and this 2019 drawing carrying the symbol is one more sheet against the "2024 lost it" reading. Fourth, the shaft is two figures again, but the other way round from the V2808 and the V3008: the block's Shaft Diameter is the 2 mm bell shaft our page already publishes, while the drawing calls out O5 with an M5*0.8 thread on the prop end. The drawing also writes its three lengths with a comma - 29,7 and 17,9 and 1,4 - on a sheet whose block prints "O18.9*29.7 mm" with a dot. The report's Operating Temperature column is a per-run motor surface temperature at 100% throttle for one minute against a 28 C ambient - 79.6, 82.5 and 85 C on the three 2700 KV runs, 61, 65 and 73 C on the three 3800 KV ones - and the row schema holds no temperature column, so it is here. recommended_props stays empty although the sheet benches three 3in props: a bench prop set is not a recommendation, and T-Motor states none. Propeller names are as this sheet prints them (GF3035, GF3052, T3140, each with "Tri-Blade" underneath), with the brand prefixed.
