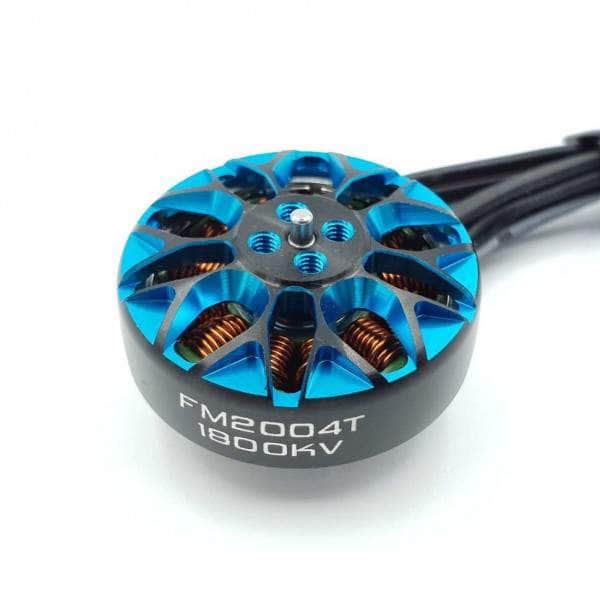

FETtec FM2004T 2004

FETtec FM2004T 2004
Image: racedayquads.com
Stator2004
KV options1800
Weight17.0 g
Shaft1.5mm
Max cells4-6S
Configuration12N14P
DimensionsØ25x13.7 mm
Winding resistance220 mOhm
Max thrust1127 g
Price (approx.)4.3 USD

At 17 g it is right at the class average across the 5 2004-class motors in our database (avg 16.6 g).

Thrust data (FETtec bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1800 GF4024R 5S 50 0.9 A — 141 g 7.46 g/W
1800 GF4024R 5S 100 4.8 A — 486 g 4.821 g/W
1800 GF4024R 6S 50 1.3 A — 205 g 6.258 g/W
1800 GF4024R 6S 100 6.7 A — 682 g 4.039 g/W
1800 HQT5*3R 5S 50 1.8 A — 286 g 7.566 g/W
1800 HQT5*3R 5S 100 9.4 A — 866 g 4.387 g/W
1800 HQT5*3R 6S 50 2.7 A — 423 g 6.217 g/W
1800 HQT5*3R 6S 100 12.1 A — 1076 g 3.529 g/W
1800 HQT5*2*3R 5S 50 1.7 A — 237 g 6.639 g/W
1800 HQT5*2*3R 5S 100 8.6 A — 801 g 4.435 g/W
1800 HQT5*2*3R 6S 50 2.4 A — 356 g 5.886 g/W
1800 HQT5*2*3R 6S 100 11.3 A — 1033 g 3.628 g/W
1800 GF5125R 5S 50 2.0 A — 320 g 7.619 g/W
1800 GF5125R 5S 100 10.2 A — 921 g 4.3 g/W
1800 GF5125R 6S 50 2.6 A — 418 g 6.38 g/W
1800 GF5125R 6S 100 12.7 A — 1127 g 3.521 g/W

Manufacturer bench figures (FETtec bench, 1800 KV on four props at 21 and 25.2 V (5S and 6S at 4.2 V/cell), 50% and 100% throttle, with the motor surface temperature after 5 s at full throttle); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

FETtec publishes a one-page datasheet PDF per motor from its own shop (fettec.net, Shopware; the product page's "Verfügbare Downloads" link), and the FM2004T 1800KV sheet is a Technical Datas block, three dimension drawings and a 16-row test table: four props (GF4024R, HQT5*3R, HQT5*2*3R, GF5125R) at 21 and 25.2 V, 50% and 100% throttle each. The sheet prints volts only; 21 and 25.2 V are 5S and 6S at 4.2 V per cell, and its own No.of Cells row reads 4~6S. Identity with the RaceDayQuads listing we price from is the 1800 KV winding, the 20 x 4 mm stator, the 1.5 mm prop shaft and the 4-6S range. The block adds 12N14P, a Ø 25 x 13.7 mm body, a 3 mm inner shaft, 220 mOhm, 0.55 A idle at 10 V and a (0.6-2A)>84% efficiency band. Three source facts recorded rather than repaired. The sheet's Weight row is 15.5 g with 3 cm of wire where FETtec's own shop page and our retail listing both state 17 g, so the published weight stays at 17 g and the datasheet figure is the bare motor. The block's Max Current and Max Continuous Power are labelled 5S but are the 25.2 V (6S) GF5125R 100% row: 13 A and 330 W against that row's 12.7 A and 320.0 W, where the sheet's own 21 V 5S peak is 10.2 A and 214.2 W. And mount_mm stays empty: the bottom-view drawing dimensions 12 mm between opposite holes of a four-M2 cross and our listing calls the pattern "12mmΦ", so the 12 mm is a bolt circle - an 8.5 mm square in the pattern a frame sees - and this file keeps a bolt circle out of that field. Max thrust is the GF5125R 25.2 V 100% row, 1127 g at 320.0 W.
