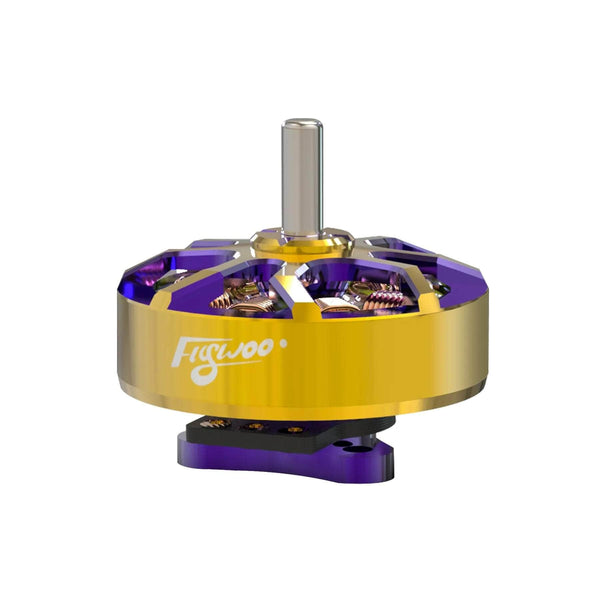

Flywoo Robo 1003
Listed as: Flywoo Robo 1003 - Gold/Purple
| Stator | 1003 |
|---|---|
| KV options | 14800 |
| Weight | 3.3 g |
| Shaft | 1.5mm |
| Max cells | 1-2S |
| Configuration | 9N12P |
| Dimensions | 13.5x9.2 mm |
| Max thrust | 170 g |
| Price (approx.) | 16.99 USD |
At 3.3 g it is right at the class average across the 3 1003-class motors in our database (avg 3.4 g).
Thrust data (Flywoo bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 14800 | GF1608R*3 | 2S | 50 | 2.4 A | — | 61 g | 3.435 g/W |
| 14800 | GF1608R*3 | 2S | 100 | 8.6 A | — | 141 g | 2.216 g/W |
| 14800 | GF1609R*4 | 2S | 50 | 2.5 A | — | 67 g | 3.622 g/W |
| 14800 | GF1609R*4 | 2S | 100 | 9.5 A | — | 154 g | 2.191 g/W |
| 14800 | GF1635R*3 | 2S | 50 | 2.4 A | — | 62 g | 3.491 g/W |
| 14800 | GF1635R*3 | 2S | 100 | 8.7 A | — | 143 g | 2.221 g/W |
| 14800 | GF1635R*4 | 2S | 50 | 2.8 A | — | 72 g | 3.475 g/W |
| 14800 | GF1635R*4 | 2S | 100 | 9.6 A | — | 154 g | 2.168 g/W |
| 14800 | GF45mm*2 | 2S | 50 | 2.4 A | — | 65 g | 3.66 g/W |
| 14800 | GF45mm*2 | 2S | 100 | 8.8 A | — | 155 g | 2.38 g/W |
| 14800 | GF45mm*3 | 2S | 50 | 2.8 A | — | 77 g | 3.716 g/W |
| 14800 | GF45mm*3 | 2S | 100 | 10.5 A | — | 170 g | 2.188 g/W |
Manufacturer bench figures (Flywoo bench, 14800 KV on six 1.6in and 45mm props at 7.4 V (2S), 50% and 100% throttle); real-world thrust varies with ESC, battery sag and prop condition.
Thrust-to-weight with this motor
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| weBLEEDfpv HQ Ultralight Whoop 31MM | 1.22x1.0 | 3 | 0.16 g |
| HQProp 40MMX2 Ultralight 40mm Micro/Whoop | 1.6x1.2 | 2 | 0.2 g |
| HQProp 51MMX2 Ultralight | 2.0x0.9 | 2 | 0.23 g |
| Gemfan 35MMS 3-Blade | 1.4x0.96 | 3 | 0.24 g |
| HQProp 40mm Ultralight 3-Blade | 1.6x1.0 | 3 | 0.25 g |
Where this data comes from
Bench rows are Flywoo's own "Product Parameters" table, the last of the eight description images the retail listing carries from Flywoo's store CDN; flywoo.net itself is Cloudflare-walled to this fetcher and publishes none of this where it can be read. The set is one winding - the bell rendered in it is printed "RB 1003 14800KV" - and the whole table sits at a flat 7.4 V (2S), 50% and 100% throttle on six props. The sheet's fourth column has a defective header (it prints a bare "3"); every row's Power is 7.4 V x that column, so it is the current in amps. Every printed Efficiency is Pull divided by that power. There is no RPM column, so no row carries one. The sheet's own full-throttle temperatures, which this schema has no field for, are 59 C on GF1608R*3, 64 C on GF1609R*4, 58 C on GF1635R*3, 64 C on GF1635R*4, 62 C on GF45mm*2 and 68 C on GF45mm*3, each measured under a 3 s full-throttle load. The dimensional drawing states a Phi1.5 mm shaft (also stated as "Output Shaft Diameter: 1.50MM" in the listing block) and a 3xM1.4 pattern on a Phi6.6 mm circle, which is a bolt circle and not the square mount_mm this schema carries; it prints the body as Phi13.5 x 8.8 mm against the listing block's 13.5 x 9.2 mm, so the published figure is left as the block states it.
